Digital Mobile Video Recorder MNVR 6 Channel HDD SSD Mobile NVR With 3G 4G GPS for Sand Pumping Vessels
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW9046 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 50,000pcs per month; |
|
Detail Information |
|||
| Chip Mode: | MNVR 6 Channel | Operation Temperature: | -20℃ To 70 ℃ |
|---|---|---|---|
| Support Cameras Type: | IP Camera,AHD Camera,Waterproof Camera | Feature: | 6CH MNVR, With 4G, GPS, WIFI, RS232/485, I&O Interface, Lan Port |
| Waterproof: | IP69 | Resolution: | 1080p |
| IR Light: | 18 PCS | Lens: | 2.8mm |
| Audio Recording: | Yes | Warranty: | 12 Months |
Product Description
Digital Mobile Video Recorder MNVR 6 Channel HDD SSD Mobile NVR With 3G 4G GPS for Sand Pumping Vessels
Feature
1.H.264/ H.265 hard compression mode
2.Supports 6CH 1080P, 720P, IPC input; Supports max 8 IPC access channels, requiring the addition of a switch(optional).
3. 2 video outputs (1 VGA output, 1 Aviation output)；
4.Dedicated file system solves the problem of easy damage caused by unbalanced disk writing, solves the problem of file fragmentation caused by repeated erase and write, and solves the problem of data loss, memory inability and file garbled caused by memory file system crash；
5.DC12V-36V adaptive wide voltage input, ultra-low power consumption design;
6.One SD card and one HDD storage ( SD Max of 512GB, HDD/SSD Max 2TB.)
Parameter
| OS | Linux | |||
| Language | Chinese/English/Others (can be customized) | |||
| Video Compression | H.264/H.265 | |||
| OSD | Overlays information such as date time and vehicle ID | |||
| GUI | Graphical User Interface | Can connect to external LED screen. Setup system parameters with the remote control. | ||
| Video Record System | Video Input | 6CH:1080P,720P | ||
| Video Output | 1 CVBS video AV, 1 VGA, 1 Aviation joints | |||
| Preview | Multi-mode screen preview, support manual/event trigger full-screen display function | |||
| Resolution | Max support: 8*1080P | |||
| Video Quality | Adjustable video levels from 1 to 8: best level 1, minimum level 8 | |||
| Video Standard | Default automatic recording, support ignition recording, manual recording, alarm recording, etc | |||
| Audio | Audio Input | 6CH | ||
| Audio Output | 1CH | |||
| Compression | G.711A compression, 8KB/s speed | |||
| Alarm Input | 4 CH of IO alarm input; It has the function of alarm linkage | |||
| Alarm Output | 2CH output, linkage sound and light alarm, oil and power cut-off, etc | |||
| Communication Interface | 1CH RS232, can be connected to oil sensor, temperature sensor, OBD, etc | |||
| 1CH RS485 (extensible) | ||||
| Wireless transfer | Support 4G, TDD-LTE, FDD-LTE etc | |||
| Position | Built-in GPS/BD module | |||
| Storage | storage | SD Card Max 512GB ,HDD or SSD HDD Max 2TB. | ||
| Upgrade | Support USB flash disk updating SD card upgrade , OTA remote upgrade automatically | |||
| USB | Front panel supports USB port, support USB flash disk upgrade to backup; hard disk box USB port, can back up video data | |||
| Video Playback | Video Search | Search video by Record Time/Record Type etc | ||
| Playback | Max support 8CH Replay /Stop/Fast Forward/Fast Reverse at same time | |||
| Support x 2,x4,x8,x16. fast forward or fast backward play | ||||
| Voltage &Power Consumption | Power Management | Adaptive wide power input, support Wide Voltage, Over-load,Over-voltage,Short Circuit,Reverse Protection..Support Time Setting/Delay power off | ||
| Voltage Input | DC:+12V ~ +36V | |||
| Voltage Output | +12V@1A | |||
| Power Consumption | Normal Working ＜5W | |||
| Working Environment | Temperature | -10℃ to +70℃ | ||
| Humidity | 8% to 90% | |||
| Safety Management | Safety enter | user/Admin 2 Levels Different Passwords , | ||
| CMS access | CMSV6, JT/T808-2011, JT/T808-2019, JT/T1078-2016 | |||
| Size | 18.5CM (L)* 16.8CM(W)* 6.2CM(H) | |||
| weight | 2 Kg | |||

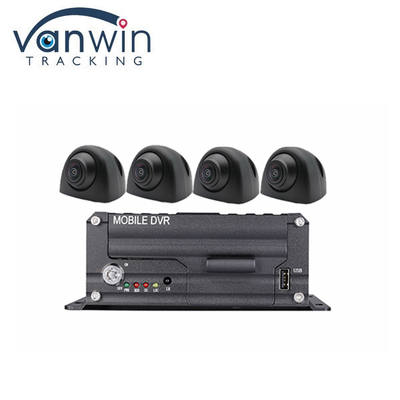

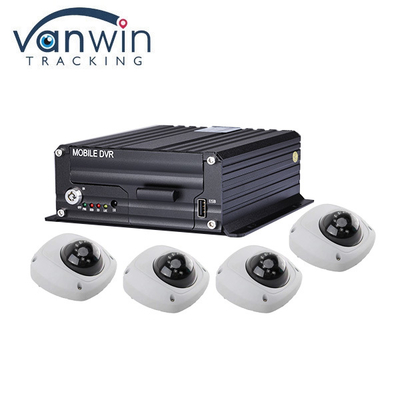

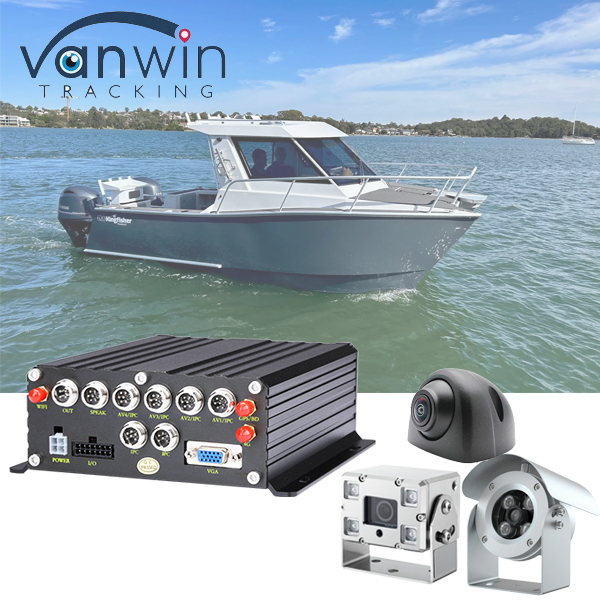

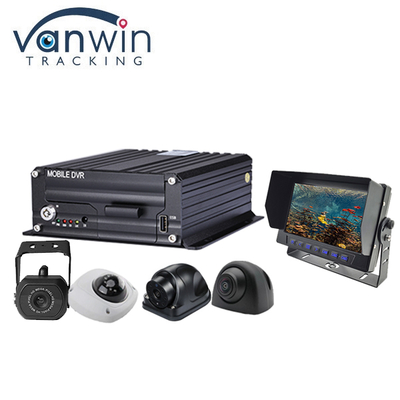

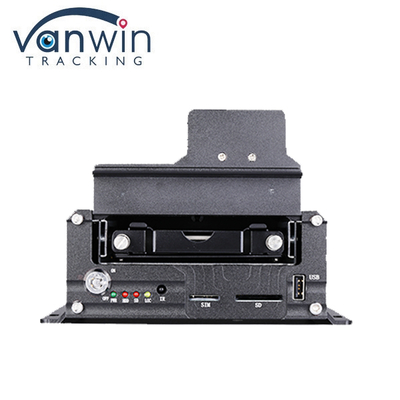

Product pictures
About Us
We have always adhered to the concept of sincerity,kindness,and altruism,customer-oriented,and do our best to help customers benefit mankind!
We believe in making the world a safer place for drivers and pedestrians We do this professionally by owning our entire manufacturing process, by having a deep understanding of the vehicle safety field with over 15 years of experience, and by using only the highest quality materials and up-to-date with the most advanced AI technology.
We is one high-tech industry specializing in R&D,production,sales of vehicle video monitoring system,3G/4G/5G/GPS monitoring kits,intellectual public transit dispatcher`s monitoring system,video people counter.Our products refers to SD HDD mobile dvr,3G/4G/5G remote control monitoring dvr with mature ADAS DMS BSD,vehicle multi-media Ads machine,car camera,software etc.They are widely used in public transport, passengers traffic,logistics,law enforcement cars,escort and so on.With very strong research technology,senior industry background,very stable good quality,on-time production&delivery capacity,high efficiency service,we soon have achieved in one of the leaders in the market.
FAQ
Q1. What is the IP69K rating?
The IP69K rating indicates that the camera is dust-tight and can withstand high-pressure, high-temperature water jets. This makes it ideal for use in harsh environments.
Q2. What is the field of view of the wide-angle lens?
The wide-angle lens typically offers a field of view between 120 to 180 degrees, providing a broader perspective for better visibility.
Q3. Is this camera suitable for outdoor use?
Yes, the IP69K waterproof rating ensures that the camera can withstand rain, snow, and other outdoor conditions.
Q4. How does the camera connect to my vehicle?
The camera usually connects via a standard video output (RCA) or through a digital connection, depending on the model. Please refer to the user manual for specific instructions.
Q5. Does it have night vision capabilities?
Many models come equipped with infrared LEDs for enhanced visibility in low-light conditions. Check the product specifications to ensure your model has this feature.
Q6. Can I install this camera myself?
Yes, installation can often be done by the user with basic tools. However, professional installation is recommended for optimal positioning and functionality.
Q7. What type of power supply does the camera require?
Most car cameras operate on 12V DC power, which is standard for automotive applications.
Q8. Is the camera compatible with all vehicle types?
The camera is compatible with most vehicles, including cars, trucks, and RVs, as long as the proper connections are made.
Q9. What warranty is provided with the camera?
Warranty details can vary by manufacturer, so please check the specific warranty information provided with your camera purchase.
Q10. How do I clean the camera to maintain its performance?
To clean the camera, use a soft, damp cloth to remove dirt and debris. Avoid using harsh chemicals or abrasive materials that could damage the lens or housing.
