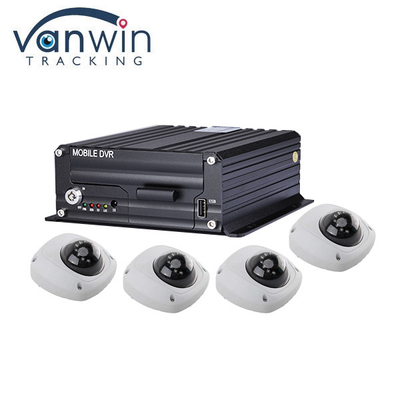

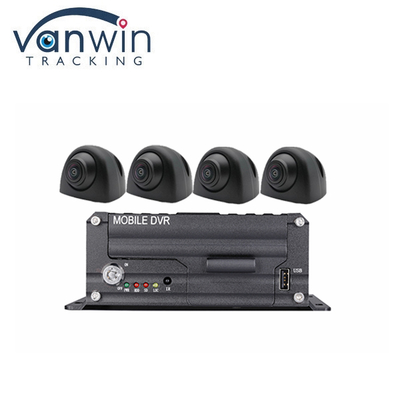

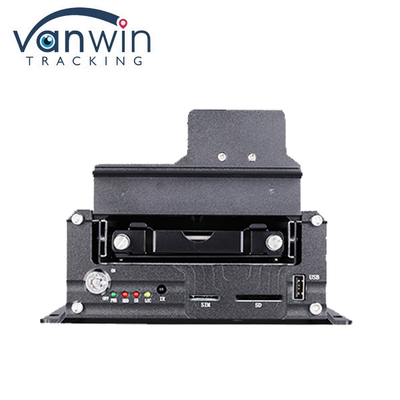

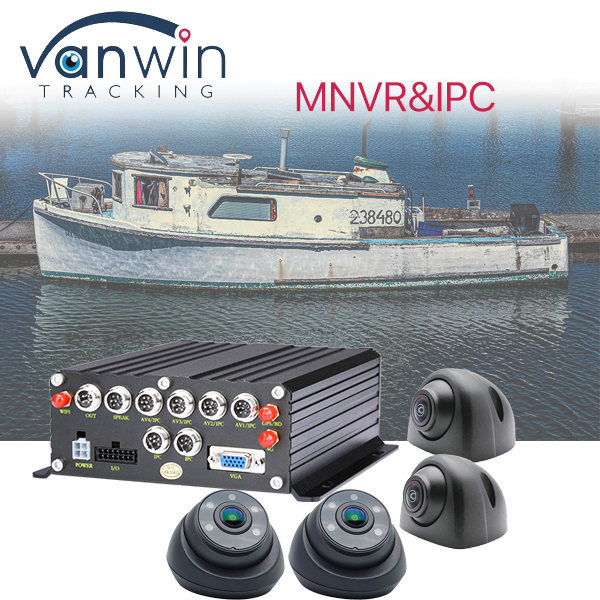

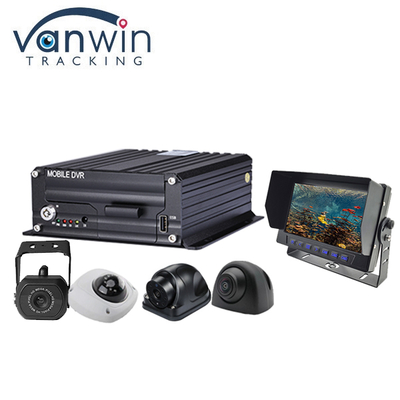

6 Channel 1080P Mobile NVR MNVR with GPS 4G WiFi for Sand Dredge Vessels
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW9046 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 5,0000 pcs per month |
|
Detail Information |
|||
| Product Name: | 6 Channel 1080P Mobile NVR | Alarm Input: | 4CH IO Alarm Input, Pulse Speed Input,support Alarm Linkage Function |
|---|---|---|---|
| Compression: | G.711A Compression, 8KB/s Speed | Audio Input: | 4 Channel Aviation Plug |
| Audio Output: | 1channel | Video Input: | 4CH：1080P、720P、D1 |
| Voltage Input: | DC:+12V ~ +36V | Humidity: | 20% To 80% |
| Temperature: | -20℃ To +70℃ | ||
Product Description
6 Channel 1080P Mobile NVR MNVR with GPS 4G WiFi for Sand Dredge Vessels
Mobile Network Video Recorder (MNVR)
What it is:
A device that records video from digital (IP) cameras mounted in mobile environments like buses, trucks, and rail cars.
How it works:
It uses Ethernet cables (often with Power over Ethernet, or PoE) to connect to and power IP cameras, similar to a standard NVR but designed for mobile, shock-resistant environments.
Key features:
Includes features like GPS positioning, automatic monitoring, geo-fencing, data storage (on HDD/SSD/SD cards), and remote access via 4G or Wi-Fi.
Applications:
Used in public transportation, school buses, and other commercial fleets for security and operational monitoring.
What is the difference between MDVR and MNVR?
The main difference is that a MDVR (Mobile Digital Video Recorder) records analog (coaxial) cameras, while an MNVR (Mobile Network Video Recorder) records IP (network) cameras. This means MDVRs use coaxial cables and are designed for older analog systems, whereas MNVRs use Ethernet cables and are designed for modern IP cameras.
Here's a breakdown of the key distinctions:
MDVR (Mobile Digital Video Recorder)
• Camera Type: Records from analog cameras.
• Cabling: Connects to cameras via coaxial cables.
• Image Quality: Generally offers lower resolution and image quality compared to MNVR systems.
• Cost: Often less expensive than MNVR systems.
• Use Case: Suitable for situations with existing analog cameras or when a lower-cost solution is needed.
MNVR (Mobile Network Video Recorder)
• Camera Type: Records from IP cameras.
• Cabling: Connects to cameras via Ethernet cables (RJ45 ports).
• Image Quality: Provides higher resolution and greater clarity.
• Technology: A more modern and advanced technology.
• Use Case: Ideal for systems requiring higher quality graphics, network connectivity, and simpler installation.
Choosing Between Them
• Choose MDVR: if you have existing analog cameras or need a more budget-friendly option.
• Choose MNVR: if you require higher image quality, the benefits of IP cameras, or want a more modern and advanced surveillance system.
| Specification | ||
| Item | specification | |
| OS | Linux | |
| Language | Chinese/English/Russian/Others (can be customized) | |
| Video Compression | H.265 H.264 | |
| OSD | Character overlay function,Overlays information such as date time and vehicle ID | |
| GUI | Graphical User Interface | System parameters can be set through an external display screen and remote control operation |
| Video Record System | Video Input | 4CH:1080P,720P,D1 |
| 8CH:1080P,720P,D1 | ||
| Video Output | 1 composite video output+optional VGA output, 1.0Vp-p, 75 Ω, supports 1 full screen and 2/4 split channels | |
| Preview | support Single channel, 2/4 screen splicing preview, support manual/event triggered full screen display function | |
| Resolution | Maximum support: 4*1080P 25 frames per channel; 8*1080P 15 frames per channel. | |
| Video Quality | 0-8 levels video recording available, 0 is the best level, 8 is the lowest level. | |
| Video Standard | PAL: 100 frames per second, CCIR625 line, 50 fields | |
| NTSC: 120 frames per second, CCIR525 line, 60 fields; | ||
| CIF: 256Kbps ~ 1.5Mbps, multi levels video quality optional; | ||
| HD1: 600Kbps ~ 2.5Mbps, multi levels video quality optional; | ||
| D1: 800Kbps ~ 3Mbps, multi levels video quality optional; | ||
| 720P : 1Mbps~2Mbps, multi levels video quality optional; | ||
| 1080P: 1Mbps~4Mbps, multi levels video quality optional; | ||
| Record Mode | Default automatic recording, supporting ignition recording, manual recording, alarm recording, etc | |
| Audio | Audio Input | 4 or 8 channel aviation Plug |
| Audio Output | 1channel | |
| Compression | G.711A compression, 8KB/s speed | |
| Alarm Input | 4CH IO Alarm Input, pulse speed input,support alarm linkage function | |
| Alarm Output | 2-channel switch output, linked with sound and light alarm, oil and power outage, etc | |
| Communication Interface | 1CH RS232,Expandable POS machine, fuel sensor, LED advertising screen, OBD, etc | |
| 1CH 485 interface, can connect PTZ,etc. | ||
| Wireless transfer | Built-in 4G network wireless transmission, TD-LTE, FDD-LTE | |
| Position | Support built-in GPS/BD module, can report to the CMSV7 standard platform | |
| Storage | Storage | SD card supports up to 512GB, hard drive supports 2TB; SD card can be used as a mirror recording to ensure data security.IPC MDVR max to 4TB. |
| Update Mode | Support USB flash drive upgrade, SD card upgrade, FTP remote automatic upgrade | |
| Storage Mode | Exclusive bare disk storage method: Currently it is a relatively advanced storage method in the industry | |
| USB | Front USB interface, can use USB flash disk to upgrade and backup ; support USB mouse to backup video | |
| Video Playback | Video Search | Search video by Record Time/Record Mode etc |
| Playback | Supports a maximum of four channels simultaneous replays, including pause, fast forward, and fast rewind | |
| Support x 2,x4,x8,x16. fast forward or fast backward play | ||
| Voltage &Power Consumption | Power Management | Adaptive wide power input, with protection functions such as overload, undervoltage, short circuit, and reverse connection; |
| Support timed power on/off and delayed shutdown functions. | ||
| Voltage Input | DC:+12V ~ +36V | |
| Voltage Output | +12V@2.5A,+5V@2A | |
| Power Consumption | Normal Working ＜5W | |
| Working Environment | Temperature | -20℃ to +70℃ |
| Humidity | 20% to 80% | |
| Safety Management | Password Access | Two level management of user password and administrator password |
| others | Size | 20.5*21 *6.2cm or IPC MDVR 22.5CM (D)* 18.7CM(W)* 6.2CM(H) |
| Net Weight | 2.5 Kg | |
1.Q: Does the MDVR support Hard drive and SD card?
A: Yes, HDD version MDVR supports SSD, HDD, and SD card. SD card version MDVR supports max 2 SD card.
The storage capacity can be from 32GB to 2TB.
2.Q: Is it difficult to install MDVR into the vehicle?
A: Actually it is easy to install it into vehicle. Most driver can figure out how to connect the power cables.
And the camera installation is more easy. Just screw, connect and mount on the target place inside the vehicle.
3.Q: If I need door open and close alarm, overspeed alarm, reverse video, brake video, left-turn video, right-turn video, etc,
is it available?
A: Definitely yes!
The I/O RS232 and 485 extension port is for all expanded purposes, including the functions above.
In fact, there are more customized functions which can be connect through this port, such as Fuel sensor, Counter system,
PTZ camera, and so on.
4.Q: We have our own platform and server, can we use your MDVR? Do you have SDK or can you do customized platform for us?
A: Yes, we have SDK ready and welcome your OEM customized order!
