High-Value Mineral Transport Secure Truck Payload Sensor with Anti-Tamper GPS Tracking System
Product Details:
| Place of Origin: | China |
| Brand Name: | Vanwin |
| Certification: | CE ROHS |
| Model Number: | 9208 |
| Document: | 202 Load Sensor Solution.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD100-USD200 |
| Packaging Details: | Carton Box |
| Delivery Time: | 3-7 working days |
| Payment Terms: | T/T,Western Union,paypal |
| Supply Ability: | 1000PCS/month |
|
Detail Information |
|||
| Product Name: | 4G GPS Tracker With Load Sensor For Real-Time Weight Change Alerts | Basic Functions: | 4G, GPS, Alarm Alerts, Load Monitoring |
|---|---|---|---|
| Material: | Aluminum Alloy | Extensive Functions: | RFID, Sensors Connetion, SOS, Remote Engine Stop |
| Applicable For Vehicles: | Big Bus, Double-decker Bus, Big Trucks, Trailers | ||
| Highlight: | mineral transport truck payload sensor,anti-tamper GPS tracking system,secure vehicle tracking system |
||
Product Description
High-Value Mineral Transport: Secure Truck Payload Sensor with Anti-Tamper GPS Tracking System
Real-Time Payload Monitoring · Anti-Tamper GPS · Instant Theft Alerts · Asset Protection
Overview
Designed for high-value mineral transport — including copper, gold, lithium, and rare earth ores — this integrated solution combines an anti-tamper GPS tracker with a high-precision payload sensor to deliver end-to-end cargo security. The system continuously measures load weight using capacitive sensing technology, transmits data via 4G, and triggers instant alerts for any unauthorized weight change or device interference — ensuring precious minerals reach their destination securely.
How It Works

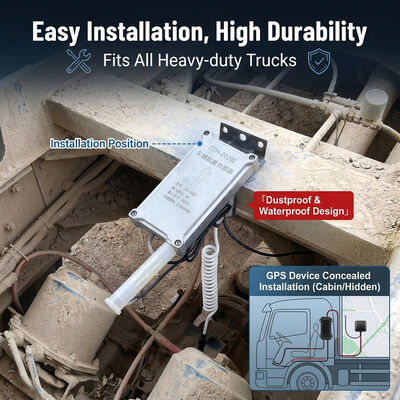

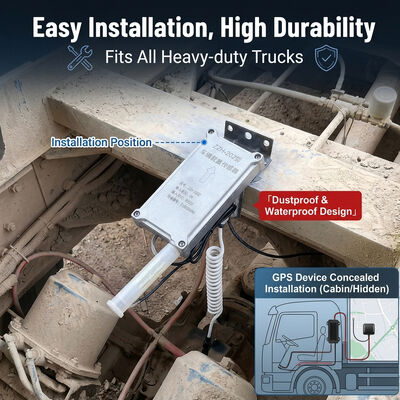

The capacitive sensor mounts on the vehicle frame, detecting suspension deflection caused by payload weight with 0.2mm accuracy. It connects to the 4G GPS tracker, which transmits real-time weight data alongside GPS location, speed, and status to the cloud platform. The anti-tamper design immediately notifies managers if any sensor or tracker interference is detected.
Key Features
1. Precision Payload Monitoring
-
Continuous weight tracking from loading to delivery
-
Detects weight loss (theft, illegal dumping, spillage) and weight gain (unauthorized loading)
-
0.2mm accuracy, 0.2% resolution for reliable, verifiable data
2. Anti-Tamper GPS Tracking
-
GPS/Beidou dual-mode positioning with 5m accuracy
-
Tamper alerts: immediate notification if sensor cables or tracker are interfered with
-
30,000-record blind spot storage ensures no data loss in weak signal areas
3. 4G Real-Time Transmission
-
Full 4G network compatibility for instant data upload
-
Remote device configuration and OTA firmware upgrades
-
Real-time location, speed, and ignition status monitoring

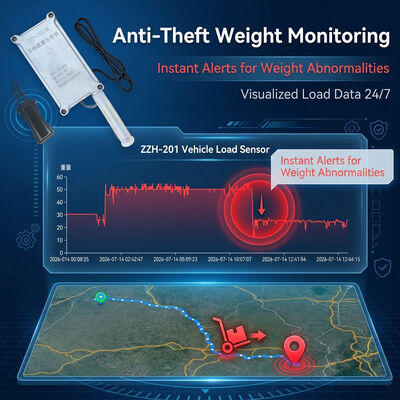

4. Smart Theft Alerts
-
Sudden weight drop → theft or illegal dumping
-
Weight increase outside loading zones → unauthorized loading
-
Route deviation → geofencing alert
-
Device tampering → sensor/tracker interference notification
-
Overspeed and low battery alerts
5. Fleet Management Tools
-
Fuel consumption monitoring (refueling/oil leakage detection)
-
Working hours statistics for operational tracking
-
Temperature/humidity monitoring (optional)
Why High-Value Mineral Transport Needs This System
| Challenge | How This Solution Solves |
|---|---|
| Ore theft during transit | Weight drop alerts with GPS pinpoint exact time and location |
| Illegal mid-route dumping | Unauthorized weight loss triggers instant notification |
| Collusion & unauthorized loading | Weight increase alerts expose illicit activity |
| Disputes on delivered quantity | Auditable weight logs provide objective evidence |
| Tampering to bypass monitoring | Anti-tamper alerts ensure system integrity |
Technical Specifications
| Component | Specification |
|---|---|
| GPS Tracker | |
| Network | 4G (FDD-LTE B1/B3, TDD-LTE B38/B39/B40/B41) |
| Positioning | GPS/Beidou, 5m accuracy, -165dBm sensitivity |
| Voltage | DC 9V-45V, standby <50mA |
| Storage | 30,000 records (blind spot) |
| Operating Temp | -20°C to +70°C |
| Dimensions | 103×32×18mm, 70g |
| Payload Sensor | |
| Principle | Capacitive, non-contact sensing |
| Accuracy | 0.2mm error, 0.2% resolution |
| Operating Temp | -20°C to +80°C |
| Protection | IP67, shock-resistant, no moving parts |
| Installation | Frame-mounted, no structural modification |
Key Benefits
-
Theft Deterrence — Instant alerts with GPS-located evidence
-
Asset Protection — Secure high-value minerals from mine to refinery
-
Revenue Assurance — Eliminate losses from theft and illegal dumping
-
Operational Visibility — Real-time payload and fleet status
-
Audit Readiness — Tamper-proof weight+location logs for verification
Secure Your Payload. Track Every Ton. Protect Your Assets.
Contact us to safeguard your high-value mineral shipments today.
