| Place of Origin: | Shenzhen,China |
|---|---|
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW618-S |
| Minimum Order Quantity: | 1pc |
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 5,000pcs per month |
| Storage Capacity: | 128GB | Power Supply: | 8V-36V |
|---|---|---|---|
| Video Format: | H.264 | Software Support: | Client, Server, Playback Software |
| Applicable: | Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining Truck Fleets | OEM/ODM: | Yes Or Customize |
| Feature: | GPS 3G WIFI Optional | Resolution: | AHD 720P |
| Warranty: | 16 Months | ||
| High Light: | digital video recorder sd card dvr,sd card dvr recorder |
||

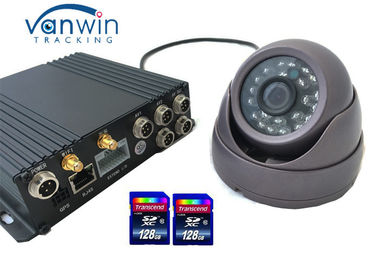

SD Card Mobile DVR HD CCTV for Vehicle Camera Car Tracking 4CH DVR Onboard
Specifications
Video | Video input | 4CH Video Inputs (1.0Vp-p/ 75 Ohms) |
Video output | 1CH Video output (1.0Vp-p/ 75 Ohms) | |
Preview | 1 CH/ 4 CH Preview. | |
Dual-Stream | Support | |
Image Compression | H.264 Main profile | |
Audio | Audio input | 1-CH |
Audio output | 1-CH | |
Recording mode | Audio & Video sync. | |
Image processing | Video Quality | D1/HD1/CIF adjustable for each channel; |
Bit Rate | D1: 800Kbps~3Mbps, | |
HD1: 600Kbps~2Mbps, CIF: 256Kbps ~ 1.5Mbps | ||
8 levels optional. | ||
Storage | 2 * 128GB SD Card (maximum) | |
Alarm | G-sensor Alarm | Yes |
Wireless | 3G | Built in WCDMA/ CDMA2000 Module (Optional) |
Wi-Fi | Built in Wi-Fi Module (Optional) | |
GPS | Built-in GPS module | |
Yes | G-sensor ,RS232/485 interface,RJ45 lan port,6ch alarm input,UPS protection technology | |
Upgrade | Support SD card Firmware Upgrading | |
Operation Environment | Temperature | -25℃ ~ +60℃ |
Humidity | 10% to 95% | |
Please contact us for the special Manual !!!
Detailed Fuction
Quality Control
