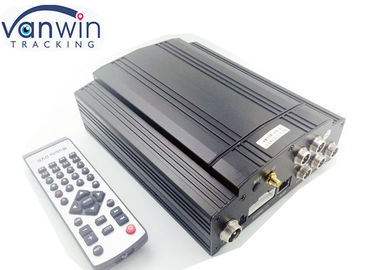

HDD 3G Vehicle Camera DVR Bus Passenger Counter System 4 Camera Digital Car GPS Tracking
Product Details:
Place of Origin: | Shenzhen,China |
Brand Name: | Vanwin Tracking |
Certification: | CE/FCC/RoHS |
Model Number: | VW609GS |
Payment & Shipping Terms:
Minimum Order Quantity: | 1pc |
---|---|
Price: | negotiated |
Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
Delivery Time: | 2-3 days for samples,15-30 days for large orders |
Payment Terms: | T/T or western Union or Paypal |
Supply Ability: | 5,000pcs per month ; 4CH Mobile GPS DVR Camera Kits for HDD Car Tracking System 3G |
Detail Information |
|||
Power Supply: | 8V-36V | Storage Capacity: | 1TB 2.5'' SATA HDD Or SSD |
---|---|---|---|
Function: | 3G Live Monitoring,GPS Track ,G-sensor,UPS | Applicable: | Bus,Truck, Taxi, Cab, Petrol, Excavator, Mining Truck Fleets |
OEM / ODM: | Support Or Customize | Price For Agents: | Negotiable |
Warranty: | 16 Months | Product Name: | 4CH Mobile GPS DVR Camera Kits For HDD Car Tracking System 3G |
High Light: | vehicle camera dvr,hd car dvr |
Product Description
HDD 3G Vehicle Camera DVR 4 Camera Digital Car GPS Tracking
Main Features
1) 4CH, Support 4 cameras
2) H.264 compression format
3) 2.5“ SATA 1TB Hard disk
4) GPS tracking
5) 3G remote control
6) 4 alarm input, 1 alarm output
7) 2 way intercom
8) Patent UPS continuously working to protect data upon sudden power-off
Specification
Item |
Description |
|
OS |
Linux |
|
Graphics Operation Interface |
System parameters can be set through external display and remote controller |
|
Security Management |
2-level management for user password, administrator password, supporting encrypted transmission |
|
Video and Preview |
Video Input, Output |
4-channel video input, 1channel video output; 1.0Vp-p, 75Ω |
OSD |
Character superposition function, information superposition of time and date, device ID and GPS, etc. |
|
Video Compression Format |
Compression coding. Applying Hisilicon hi-performance processor. |
|
Dual-Stream |
Supported |
|
Preview Function |
Preview of 1-channle, 4-image stitching, supporting full screen triggered by event and switching of stitched images |
|
Frame Rate |
PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel |
|
Resolution |
CIF, HD1 and D1 for selection, supporting 2 channels of D1+ 2 channels of CIF at the most |
|
Quality |
Grade 1 to grade 5 for selection (descending) |
|
Bit Rate |
CIF: 256Kbps ~ 1.5 Mbps, 8-level bit rates for selection HD1: 600Kbps ~ 2 Mbps, 8-level bit rates for selection D1: 800Kbps ~ 3Mbps, 8-level bit rates for selection |
|
Audio |
Audio Input, Output |
4-channel input, 1-channel output |
Compression Format |
G.726 coding |
|
Recording |
Storage Medium |
Supporting one 2.5” hard drive and one SD card, which supports up to 32G, supporting data redundancy storage technology; |
File Format/ System |
ASF/FAT32 |
|
Video Strategies |
Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording |
|
Video Search |
Searching by time, type, storage device and other conditions |
|
Video Playback |
Supporting playback on local device, supporting synchronous playback of up to 4 channels and analysis on vehicle information in the files |
|
Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time |
||
Alarm |
Alarm Input/ Output |
6-channel on/off signal alarm input, 1-channel on/off signal alarm output |
Alarm Recording |
Prerecording function 15 seconds before alarm, duration of recording after alarm can be adjusted from 30s ~ 30min |
|
Storage Space Alarm |
Supporting settings for alarm of storage space |
|
Function Alarm |
GPS overspeed alarm, acceleration alarm, motion detection alarm |
|
Communication Ports |
RS232, RJ45 10M/100M self-adaptable network interface |
|
Wireless Transmission (Optional) |
Embedded 3G wireless transmission module, WCDMA, CDMA2000, TD-SCDMA system for selection; Compatible with GPRS, EDGE; Embedded Wi-Fi module; |
|
GPS (Optional) |
Supporting external GPS |
|
Remote Data Transmission Channel Selection |
Supporting 3G, Wi-Fi data channel transmission, supporting Wi-Fi priority transmission strategy; supporting remote downloads of back-end recording strategies; |
|
PTZ Control |
Supporting PTZ control realized by local ad client software; |
|
Parameter Configuration |
Supporting parameter configuration functions for mobile DVR coding channel; |
|
G-Sensor |
Embedded |
|
System Upgrading |
Supporting SD card, hard drive upgrading and remote upgrading |
|
Power Supply and Power Consumption |
Power Supply |
1. ACC on/off 2. Hard drive lock on/off 3. Delayed shutdown 4. Timed on/off |
Input Voltage |
DC:+8V ~ +36V |
|
Output Voltage |
+12V@4*0.5A; +5V@0.5A |
|
Power-off Protection |
With patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure |
|
Power Consumption |
<10W in normal operation; <0.5W in standby mode |
|
Operating Environment |
Temperature |
Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃ |
Humidity |
10% to 95% |
|
Dimensions |
160(W) x62(H) x200(D) mm. |
|
Weight |
Net: 2200g, Gross: 3500g |

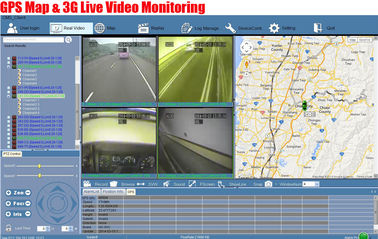

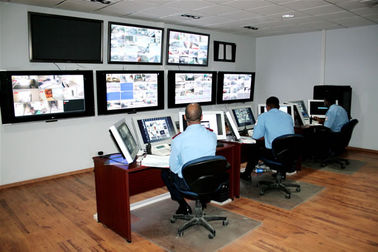

CMS Platform
