| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-388 |
| Minimum Order Quantity: | 5pcs |
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default |
| Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
| Payment Terms: | Western Union, T/T, Paypal |
| Supply Ability: | 5,000pcs per month , CCD 800TVL Drive proof bus safety camera with good Night Vision bus cameras |
| Product Name: | Bus Cameras, Bus Safety Camera | Image Sensor: | SONY CCD 600/700/800TVL |
|---|---|---|---|
| TV System: | PAL Or NTSC | Power: | DC12 Or 24V |
| IR Lights: | 24pcs | Lens Angle: | 170 Degree Wide Angle |
| Application: | For Truck Or Bus | Working In Water: | IP67 |
| High Light: | car reversing camera,cctv surveillance camera |
||

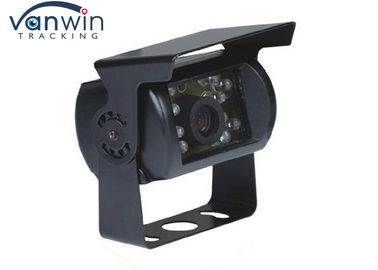

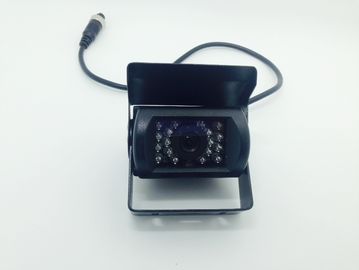

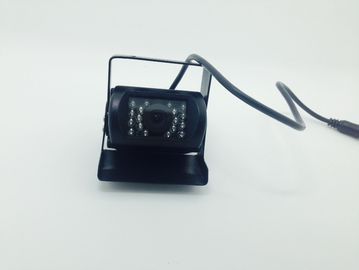

HD Vehicle DVR Camera System Night Vision Bus Cameras Frontview
This bus surveillance camera with Sonny CCD image sensor has better picture's clarity, color contrasting and sharpness than CMOS camera, and with 24pcs of IR lights, which also shows very clear images at night. It's very popular for buses or trucks management.
Main Features:
1. Very HD Sony CCD Camera
2. with IR ,great night vision,
3. very waterproof and popular
4. Original facotory
Specifications:
| Model | VW-388 |
| Image Sensor | CCD |
| Len Angle | 170 Degrees |
| TV System | NTSC/PAL |
| Resolution (TV Line) | 420/480/520 |
| Effective Pixels | 728*582 580*492 |
| Minimum Illumination | 0.1 - 1.0 Lux |
| Waterproof Resistance Rating | IP 68 |
| Power Supply | DV 12V +/- 1V |
| Power Consumption | <1W |
| Video Output | 1.0vpp.75ohm |
| White Balance | Auto |
| AGC | Auto |
| Operating Temperature | -20℃ - 80℃ |
| Storage Temperature | -40℃ - 85℃ |
| Warranty | 15 months |
| Optional Function 1 | Parking Line or not |
| Optional Function 2 | Frontview or Rearview |
| Sample | Available |
| Video Cable Length | 6M |
| Power Supply Length | 1.2M |
Adavantages
1. HD
Chips Available for Option
Connetor Available for Option
Accessories
Manual 1pcs, Screw:4pcs
Application

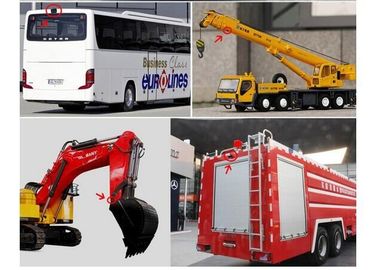

Installation Pictures
