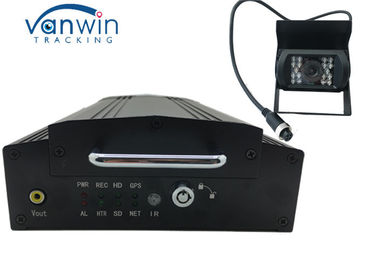

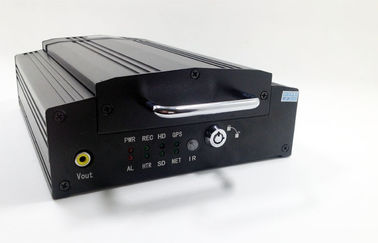

1080P HD MDVR Wifi GPS 3G Digital Video Recorder for School Bus CCTV System
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW618HD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 5,000pcs per month ; |
|
Detail Information |
|||
| Software: | Playback Software, Client Software, Server Software | Prodyct Name: | 1080P HD MDVR Wifi GPS 3G Digital Video Recorder For School Bus CCTV System |
|---|---|---|---|
| Dual Stream: | Yes | Support: | OEM/ODM |
| Customization: | Welcome | Resolution: | AHD 720P Or 1080P |
| Functions: | 3G Live Video, GPS Tracking ,WIFI For Optional | Level: | High End With The World Class Anti-vibration Technology |
| High Light: | mobile digital video recorder,video surveillance dvr |
||
Product Description
1080P HD MDVR Wifi GPS 3G Digital Video Recorder for School Bus CCTV System
Main Features
1. H.264 Compression,support 4ch 720P AHD input and AHD Camera input.
2. 8-36V wide voltage with low power consumption.
3. Unique UPS Technology ensures the integrality of record when power failure occurs, even can for 8-10s. HDD 2.5” HDD or SSD for storage
4. support USB port data backup and device update;
5.GPS tracking,3G realtime monitoring,Wifi auto download for optional
6.RS232/485 interface ,RJ45 lan port,G-sensor,UPS ,High end anti-vibration technology ,6ch alarm input
Specification
| Item | Description | |
| OS | Linux | |
| Graphics Operation Interface | System parameters can be set through external display and remote controller | |
| Security Management | 2-level management for user password, administrator password, supporting encrypted transmission | |
| Video and Preview | Video Input, Output | 4-channel video input, 1channel video output; 1.0Vp-p, 75Ω |
| OSD | Character superposition function, information superposition of time and date, device ID and GPS, etc. | |
| Video Compression Format | Compression coding. Applying Hisilicon hi-performance processor. | |
| Dual-Stream | Supported | |
| Preview Function | Preview of 1-channle, 4-image stitching, supporting full screen triggered by event and switching of stitched images | |
| Frame Rate | PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel | |
| Resolution | AHD 720P,D1, HD1 ,CIF 4channel | |
| Quality | Grade 1 to grade 5 for selection (descending) | |
| Bit Rate |
CIF: 256Kbps ~ 1.5 Mbps, 8-level bit rates for selection HD1: 600Kbps ~ 2 Mbps, 8-level bit rates for selection D1: 800Kbps ~ 3Mbps, 8-level bit rates for selection |
|
| Audio | Audio Input, Output | 4-channel input, 1-channel output |
| Compression Format | G.726 coding | |
| Recording | Storage Medium | Supporting one 2.5” hard drive and one SD card, which supports up to 128G, supporting data redundancy storage technology; |
| File Format/ System | Special file system | |
| Video Strategies | Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording | |
| Video Search | Searching by time, type, storage device and other conditions | |
| Video Playback | Supporting playback on local device, supporting synchronous playback of up to 4 channels and analysis on vehicle information in the files | |
| Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time | ||
| Alarm | Alarm Input/ Output | 8-channel on/off signal alarm input, 1-channel on/off signal alarm output |
| Alarm Recording | Prerecording function 15 seconds before alarm, duration of recording after alarm can be adjusted from 30s ~ 30min | |
| Storage Space Alarm | Supporting settings for alarm of storage space | |
| Function Alarm | GPS overspeed alarm, acceleration alarm, motion detection alarm | |
| Communication Ports | 485,RS232, RJ45 10M/100M self-adaptable network interface | |
| Wireless Transmission (Optional) | Supporting Wi-Fi; | |
| GPS (Optional) | Supporting external GPS | |
| PTZ Control | Supporting PTZ control realized by local; | |
| Parameter Configuration | Supporting parameter configuration functions for mobile DVR coding channel; | |
| G-Sensor | Embedded | |
| System Upgrading | Supporting SD card, hard drive upgrading and remote upgrading | |
| Power Supply and Power Consumption | Power Supply |
1. ACC on/off 2. Hard drive lock on/off 3. Delayed shutdown 4. Timed on/off |
| Input Voltage | DC:+8V ~ +36V | |
| Output Voltage | +12V@5*0.5A; | |
| Power-off Protection | With patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure | |
| Power Consumption | <10W in normal operation; <0.5W in standby mode | |
| Operating Environment | Temperature | Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃ |
| Humidity | 10% to 95% | |
Software
