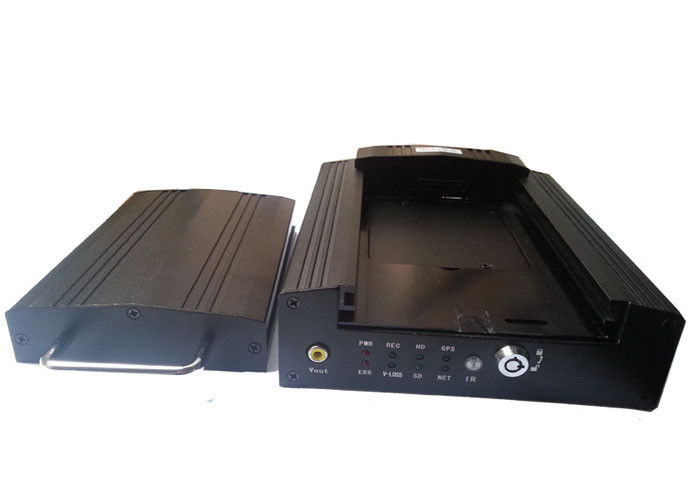

HDD Mobile Digital Video Recorder MDVR 4 Channel With Camera
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW602 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 5,000pcs per month |
|
Detail Information |
|||
| Power Supply: | 8V-36V | Storage Capacity: | 1TB Hard Drive |
|---|---|---|---|
| Basic Function: | 4 Cameras Monitoring With GPS Tracking Optional | Software Support: | Client,server,playback Software |
| Applicable: | Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining Truck Fleets | Customized Functions: | Yes,we Can |
| Shock Resistance: | The World Class Level With Milatary Use | Product Name: | 4 Channel Camera System HDD Mobile Digital Video Recorder MDVR |
| High Light: | car blackbox dvr,mobile dvr with gps tracking |
||
Product Description
HDD Mobile Digital Video Recorder MDVR 4 Channel With Camera
Main Features
The MDVR allows you to track and view your vehicles in REAL TIME via live video camera streaming from up to 4 cameras on your truck, car ,bus,taxis, police cars, excavators, petorl trucks, law enforcement vehicles, and other various types of vehicles with people counting,RFID card reader,fuel consumption sensor,LED display functions etc.
Using the Internet, GPS, and Mobile CCTV technology, you can now view your vehicles, drivers and cargo from your office, wherever they are in the country. Our cloud-based Control Room software also allows you track your fleet, identifying speed, location, fuel-level and many more.
Vehicle Tracking that lets you SEE the FULL picture.
1) 8V~36V Wide Range Power Input;
2) 4 Channel Realtime Video/ Audio Recording;
3) Supports HDD for storage;
4) Recording modes:power-on,timer,alarm and manual record
5) GPS optional
6) World Class anti-vibration Technology with very stable
quality
8) UPS Technology (3~5s Power-off delay after power cut);
Specification
|
Item |
Description |
|
|
OS |
Linux |
|
|
Graphics Operation Interface |
System parameters can be set through external display and remote controller |
|
|
Security Management |
2-level management for user password, administrator password, supporting encrypted transmission |
|
|
Video and Preview |
Video Input, Output |
4-channel video input, 1channel video output; 1.0Vp-p, 75Ω |
|
OSD |
Character superposition function, information superposition of time and date, device ID and GPS, etc. |
|
|
Video Compression Format |
Compression coding. Applying Hisilicon hi-performance processor. |
|
|
Dual-Stream |
Supported |
|
|
Preview Function |
Preview of 1-channle, 4-image stitching, supporting full screen triggered by event and switching of stitched images |
|
|
Frame Rate |
PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel |
|
|
Resolution |
CIF, HD1 and D1 for selection, supporting 2 channels of D1+ 2 channels of CIF at the most |
|
|
Quality |
Grade 1 to grade 5 for selection (descending) |
|
|
Bit Rate |
CIF: 256Kbps ~ 1.5 Mbps, 8-level bit rates for selection HD1: 600Kbps ~ 2 Mbps, 8-level bit rates for selection D1: 800Kbps ~ 3Mbps, 8-level bit rates for selection |
|
|
Audio |
Audio Input, Output |
4-channel input, 1-channel output |
|
Compression Format |
G.726 coding |
|
|
Recording |
Storage Medium |
Supporting one 2.5” hard drive and one SD card, which supports up to 32G, supporting data redundancy storage technology; |
|
File Format/ System |
ASF/FAT32 |
|
|
Video Strategies |
Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording |
|
|
Video Search |
Searching by time, type, storage device and other conditions |
|
|
Video Playback |
Supporting playback on local device, supporting synchronous playback of up to 4 channels and analysis on vehicle information in the files |
|
|
Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time |
||
|
Alarm |
Alarm Input/ Output |
6-channel on/off signal alarm input, 1-channel on/off signal alarm output |
|
Alarm Recording |
Prerecording function 15 seconds before alarm, duration of recording after alarm can be adjusted from 30s ~ 30min |
|
|
Storage Space Alarm |
Supporting settings for alarm of storage space |
|
|
Function Alarm |
GPS overspeed alarm, acceleration alarm, motion detection alarm |
|
|
Communication Ports |
RS232, RJ45 10M/100M self-adaptable network interface |
|
|
Wireless Transmission (Optional) |
Embedded 3G wireless transmission module, WCDMA, CDMA2000, TD-SCDMA system for selection; Compatible with GPRS, EDGE; Embedded Wi-Fi module; |
|
|
GPS (Optional) |
Supporting external GPS |
|
|
Remote Data Transmission Channel Selection |
Supporting 3G, Wi-Fi data channel transmission, supporting Wi-Fi priority transmission strategy; supporting remote downloads of back-end recording strategies; |
|
|
PTZ Control |
Supporting PTZ control realized by local ad client software; |
|
|
Parameter Configuration |
Supporting parameter configuration functions for mobile DVR coding channel; |
|
|
G-Sensor |
Embedded |
|
|
System Upgrading |
Supporting SD card, hard drive upgrading and remote upgrading |
|
|
Power Supply and Power Consumption |
Power Supply |
1. ACC on/off 2. Hard drive lock on/off 3. Delayed shutdown 4. Timed on/off |
|
Input Voltage |
DC:+8V ~ +36V |
|
|
Output Voltage |
+12V@4*0.5A; +5V@0.5A |
|
|
Power-off Protection |
With patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure |
|
|
Power Consumption |
<10W in normal operation; <0.5W in standby mode |
|
|
Operating Environment |
Temperature |
Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃ |
|
Humidity |
10% to 95% |
|
|
Dimensions |
160(W) x62(H) x200(D) mm. |
|
|
Weight |
Net: 2200g, Gross: 3500g |
|
Why choose us?
1. Professional Manufacturer of MDVR.We can produce 4CH or 8CH DVR for optiona.
Customize Different Projects like VPN MDVR , RFID ,Video people counter system , Train Surveillance Customization ,Oil Sensor and so on.They all are some of our examples.
2. The World Class Anti-vibration Technology with Very Stable Quality
3. Very Reasonable Price for Military Demand DVR
4. Our DVR , our Software ,our Best Service.Welcome you
Applications:
It's widely used in passenger cars, buses, taxis, police car, school bus, logistics vehicles, dangerous goods vehicles, train/subway/light rail, ship and ect.
