Passenger Counter Truck DVR Live Video Monitoring GPS Tracking
Product Details:
Place of Origin: | Shenzhen,China |
Brand Name: | Vanwin Tracking |
Certification: | CE/FCC/RoHS |
Model Number: | VW619HD |
Payment & Shipping Terms:
Minimum Order Quantity: | 1pc |
---|---|
Price: | negotiated |
Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
Delivery Time: | 2-3 days for samples,15-30 days for large orders |
Payment Terms: | T/T or western Union or Paypal |
Supply Ability: | 5,000pcs per month; 4CH 3G Live Video monitoring GPS tracking passenger counter truck dvr gps 3g |
Detail Information |
|||
Power Supply: | 8V-36V | Storage: | Max Support 2TB HDD |
---|---|---|---|
Basic Function: | 4 Cameras Monitoring With 3G Real Time,GPS Tracking | Software Support: | Client,server,playback Software |
Applicable: | Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining Truck Fleets | 1080P Resolution: | Yes |
Warranty: | 16 Months | AHD Camera: | Support |
3G GPS WIFI: | Optional | ||
High Light: | mobile dvr with gps tracking,black box car digital video recorder |
Product Description
Passenger Counter Truck DVR Live Video Monitoring GPS Tracking

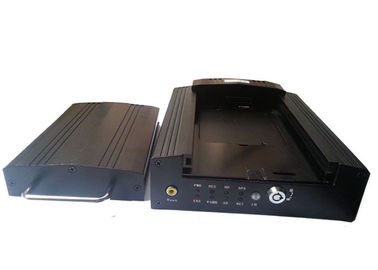

MDVR Overview

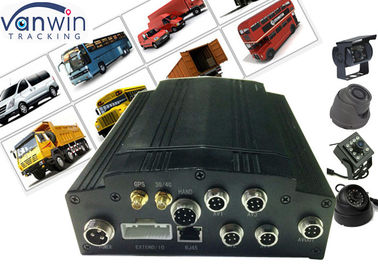

The MDVR allows you to track and view your vehicles in REAL TIME via live video camera streaming from up to 4 cameras on your truck, car ,bus,taxis, police cars, excavators, petorl trucks, law enforcement vehicles, and other various types of vehicles with people counting,RFID card reader,fuel consumption sensor,LED display functions etc.

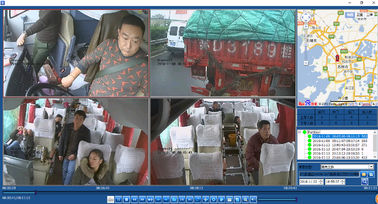

Using the Internet, GPS, and Mobile CCTV technology, you can now view your vehicles, drivers and cargo from your office, wherever they are in the country. Our cloud-based Control Room software also allows you track your fleet, identifying speed, location, fuel-level and many more.
Vehicle Tracking that lets you SEE the FULL picture.
Product Summary
Automobile video serveillance DVR supports 4 channel X 720P high definition resolution.
AHD 4 channel 720P 3G school bus car CCTV SD card MDVR with RFID and GPS is a practical 3G+GPS system for Veihcle mobile serveillance purpose which combines latest high technology such as Audio&Video Coding&Decoding, Mass HD&SD storage, Streaming media network, Audio&Video denoising, Mechanical Shockproof(Anti-vibration), UPS power protection, Flexible wide voltage range and etc.
Application:
A. Road Transportation
B. Railway Transportation
C. Water Transportation
D. Air Transportation
E. Other ways with live surveillance purpose
Specification
A. Standard H.264 compression format ensures high rate, less storage space and clear.
B. G.726 format for 4 audio in with 1 out
C. 6 Alarm in with 1 out
D. Video recording Option of Starting up, Timing, and Touch. Both HDD and SD card storage. Double safe. With auto heater.
E. Double Stream for recording and Multiple windows watching
F. UPS technology Automatic protection against sudden power off
G. Shutdown option of Key, Timing, Delay
H. Wide voltage range of 8 - 36 V and Automatic heater
I. Less than 25 seconds for restart, Cloud(PTZ) console
J. ASF format for Video play, Universal VLC player support
K. 3G, WIFI and GPS module embedded.
L. Mobile phone support(Android/iOS)
M. Cloud(PTZ) console and IR Remote Control
N. Support Brake alarm, Reverse alarm, Motion detect, Door opening alarm, CMS platform, Customized Player.
Support Geo fence, Location, Speed alarm, G-sensor etc.
Support oil sensor, Fuel cut, Power cut, SOS alarm, Alarm button, Online tracking, Live talkback, Live surveillance, Live simultaneous storage, Dispatching system, Camera rotation, PTZ cloud control, SMS function, CMS platform, iOS&Android client(for Apple and Android phone), Wireless WIFI, Remote control and etc.
Item |
Description |
|
OS |
Linux |
|
Graphics Operation Interface |
System parameters can be set through external display and remote controller |
|
Security Management |
2-level management for user password, administrator password, supporting encrypted transmission |
|
Video and Preview |
Video Input, Output |
4-channel video input, 1channel video output; 1.0Vp-p, 75Ω |
OSD |
Character superposition function, information superposition of time and date, device ID and GPS, etc. |
|
Video Compression Format |
Compression coding. Applying Hisilicon hi-performance processor. |
|
Dual-Stream |
Supported |
|
Preview Function |
Preview of 1-channle, 4-image stitching, supporting full screen triggered by event and switching of stitched images |
|
Frame Rate |
PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel |
|
Resolution |
4 channels x720P or 1080P |
|
Quality |
Grade 1 to grade 5 for selection (descending) |
|
Bit Rate |
CIF: 256Kbps ~ 1.5 Mbps, 8-level bit rates for selection HD1: 600Kbps ~ 2 Mbps, 8-level bit rates for selection D1: 800Kbps ~ 3Mbps, 8-level bit rates for selection |
|
Audio |
Audio Input, Output |
4-channel input, 1-channel output |
Compression Format |
G.726 coding |
|
Recording |
Storage Medium |
Supporting dual SD card, which supports up to 32G |
File Format/ System |
ASF/FAT32 |
|
Video Strategies |
Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording |
|
Video Search |
Searching by time, type, storage device and other conditions |
|
Video Playback |
Supporting playback on local device, supporting synchronous playback of up to 4 channels and analysis on vehicle information in the files |
|
Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time |
||
Alarm |
Alarm Input/ Output |
6-channel on/off signal alarm input, 1-channel on/off signal alarm output |
Alarm Recording |
Prerecording function 15 seconds before alarm, duration of recording after alarm can be adjusted from 30s ~ 30min |
|
Storage Space Alarm |
Supporting settings for alarm of storage space |
|
Function Alarm |
GPS overspeed alarm, acceleration alarm, motion detection alarm |
|
Communication Ports |
RS232, RJ45 10M/100M self-adaptable network interface |
|
Wireless Transmission (Optional) |
Embedded 3G wireless transmission module, WCDMA, CDMA2000, TD-SCDMA system for selection; Compatible with GPRS, EDGE; Embedded Wi-Fi module; |
|
GPS (Optional) |
Supporting external GPS |
|
Remote Data Transmission Channel Selection |
Supporting 3G, Wi-Fi data channel transmission, supporting Wi-Fi priority transmission strategy; supporting remote downloads of back-end recording strategies; |
|
PTZ Control |
Supporting PTZ control realized by local ad client software; |
|
Parameter Configuration |
Supporting parameter configuration functions for mobile DVR coding channel; |
|
G-Sensor |
Embedded |
|
System Upgrading |
Supporting SD card and remote upgrading |
|
Power Supply and Power Consumption |
Power Supply |
1. ACC on/off 2. Delayed shutdown 3. Timed on/off |
Input Voltage |
DC:+8V ~ +36V |
|
Output Voltage |
+12V@4*0.5A; +5V@0.5A |
|
Power-off Protection |
With patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure |
|
Power Consumption |
<10W in normal operation; <0.5W in standby mode |
|
Operating Environment |
Temperature |
Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃ |
Humidity |
10% to 95% |
|
Dimensions |
141(L)×133(W)×43(H)mm |
Quick installation
