Focus on Vehicle Security Solution.
Quality is Our Culture! Trust us for Professional!
|Place of Origin:||Shenzhen,China|
|Brand Name:||Vanwin Tracking|
|Minimum Order Quantity:||1pc|
|Packaging Details:||Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .|
|Delivery Time:||2-3 days for samples,15-30 days for large orders|
|Payment Terms:||T/T or western Union or Paypal|
|Supply Ability:||5,000pcs per month|
|Power Supply:||8V-36V||Storage Capacity:||SD Card For Storage|
|Software Support:||Client,server,playback Software||Applicable:||Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining Truck Fleets|
|Warranty:||12 Months||OEM / ODM:||Support Or Customize|
|Product Name:||1080P GSM Tracker DVR Camera GPS Mobile Tracking Taxi Management System||Resolution:||1080P|
sd card dvr recorder,
sd card video recorder dvr

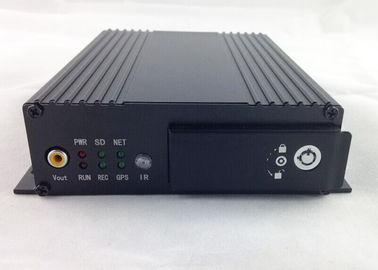

1080P 128GB 8-CH SD Video Mobile CCTV DVR , SD Card Security DVR Recorder for vehicles
Mobile CCTV DVR Description&Specification
A. Standard H.264 compression format ensures high rate, less storage space and clear.
B. SD card support, faster recording speed and easy installation.
C. Advanced PCB layout&design and reliable SMT processing
D. Wide voltage range of 8 - 36 V
E. 5V/0.5A for Input, 12V/2A for output, compatible and easy installation
F. 4 Alarm in, 1 Alarm out. 4 Video in, 1 Video out. 4 Audio in, 1 Audio out. RS485/232 Support.
G. Professional management platform and PLAY software
H. Support Brake alarm, Reverse alarm, Motion detect, Door opening alarm, CMS platform, Customized Player.
Support Geo fence, Location, Speed alarm, G-sensor etc.
Support oil sensor, Fuel cut, Power cut, SOS alarm, Alarm button, Online tracking, Live talkback, Live surveillance, Live simultaneous storage, Dispatching system, Camera rotation, PTZ cloud control, SMS function, CMS platform, iOS&Android client(for Apple and Android phone), Remote control and etc.
Mobile CCTV DVR Specifications
|Graphics Operation Interface||System parameters can be set through external display and remote controller|
|Security Management||2-level management for user password, administrator password, supporting encrypted transmission|
|Video and Preview||Video Input, Output||8-channel video input, 1channel video output; 1.0Vp-p, 75Ω|
|OSD||Character superposition function, information superposition of time and date, device ID and GPS, etc.|
|Video Compression Format||Compression coding. Applying Hisilicon hi-performance processor.|
|Preview Function||Preview of 1-channel, 4-image stitching, supporting full screen triggered by event and switching of stitched images|
|Frame Rate||PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel|
|Resolution||CIF, HD1 and D1 for selection, supporting 2 channels of D1+ 2 channels of CIF at the most|
|Quality||Grade 1 to grade 5 for selection (descending)|
|Bit Rate||CIF: 256Kbps ~ 1.5 Mbps, 8-level bit rates for selection|
|HD1: 600Kbps ~ 2 Mbps, 8-level bit rates for selection|
|D1: 800Kbps ~ 3Mbps, 8-level bit rates for selection|
|Audio||Audio Input, Output||8-channel input, 1-channel output|
|Compression Format||G.726 coding|
|Recording||Storage Medium||Supporting dual SD cards, which supports up to 256GB|
|File Format/ System||ASF/FAT32|
|Video Strategies||Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording|
|Video Search||Searching by time, type, storage device and other conditions|
|Video Playback||Supporting playback on local device, supporting synchronous playback of up to 8 channels and analysis on vehicle information in the files|
|Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time|
|Alarm||Alarm Input/ Output||6-channel on/off signal alarm input, 1-channel on/off signal alarm output|
|Alarm Recording||Prerecording function 15 seconds before alarm, duration of recording after alarm can be adjusted from 30s ~ 30min|
|Storage Space Alarm||Supporting settings for alarm of storage space|
|Function Alarm||GPS overspeed alarm, acceleration alarm, motion detection alarm|
|Wireless Transmission (Optional)||Embedded 3G wireless transmission module, WCDMA, CDMA2000, TD-SCDMA system for selection;|
|Compatible with GPRS, EDGE;|
|GPS (Optional)||Supporting external GPS, WIFI download|
|Remote Data Transmission Channel Selection||Supporting 3G; supporting remote downloads of back-end recording strategies;|
|PTZ Control||Supporting PTZ control realized by local ad client software;|
|Parameter Configuration||Supporting parameter configuration functions for mobile DVR coding channel;|
|System Upgrading||Supporting SD card, hard drive upgrading and remote upgrading|
|Power Supply and Power Consumption||Power Supply||1. ACC on/off|
|2. Hard drive lock on/off|
|3. Delayed shutdown|
|4. Timed on/off|
|Input Voltage||DC:+8V ~ +36V|
|Power-off Protection||With patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure|
|Power Consumption||<10W in normal operation; <0.5W in standby mode|
|Operating Environment||Temperature||Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃|
|Humidity||10% to 95%|
1. Q: Does the MDVR support Hard drive and SD card?
A: Yes, HDD version MDVR supports SSD, HDD, and SD card. SD card version MDVR supports max 2 SD card.
The storage capacity can be from 32GB to 2TB.
2. Q: Is it difficult to install MDVR into the vehicle?
A: Actually it is easy to install it into vehicle. Most driver can figure out how to connect the power cables.
And the camera installation is more easy. Just screw, connect and mount on the target place inside the vehicle.
3. Q: If I need door open and close alarm, overspeed alarm, reverse video, brake video, left-turn video, right-turn video, etc,
is it available?
A: Definitely yes!
The I/O RS232 and 485 extension port is for all expanded purposes, including the functions above.
In fact, there are more customized functions which can be connect through this port, such as Fuel sensor, Counter system,
PTZ camera, and so on.
4. Q: We have our own platform and server, can we use your MDVR? Do you have SDK or can you do customized platform for us?
A: Yes, we have SDK ready and welcome your OEM customized order!
Our Client Platform
Server --- First year is free. We can also help to build up your own Server. Welcome to talk.
CMS Platform --- iFAR is our brand name of softwares. Copyright protection. Free platform.
Player --- Free Player.
Software --- iFAR is free. Welcome OEM customized project.
Technology support --- We provide Installation guiding, Problem solving, Remote upgrading etc.
Warranty --- We provide 12 months quality warranty based on normal use.
