4CH HDD GPS Basic black box car digital video recorder , Vehicle Mobile DVR SD card

4CH HDD GPS Basic black box car digital video recorder , Vehicle Mobile DVR SD card

    • 4CH HDD GPS Basic black box car digital video recorder , Vehicle Mobile DVR SD card
    • 4CH HDD GPS Basic black box car digital video recorder , Vehicle Mobile DVR SD card
    • 4CH HDD GPS Basic black box car digital video recorder , Vehicle Mobile DVR SD card
  • 4CH HDD GPS Basic black box car digital video recorder , Vehicle Mobile DVR SD card

    Product Details:

    Place of Origin: Shenzhen,China
    Brand Name: Vanwin Tracking
    Certification: CE/FCC/RoHS
    Model Number: VW619HD

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Price: negotiated
    Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
    Delivery Time: 2-3 days for samples,15-30 days for large orders
    Payment Terms: T/T or western Union or Paypal
    Supply Ability: 5,000pcs per month
    Contact Now
    Detailed Product Description
    Video Format: H.264 Network Port: RJ45
    Storage Card: Hard Disk 2TB+64GB SD Card Applicable: Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining Truck Fleets
    Resolution: 720P/D1/HD1/CIF G-sensor: Support
    Cameras: Sony CCD Or AHD Cameras 3G/4G GPS WIFI G-sensor: Optional

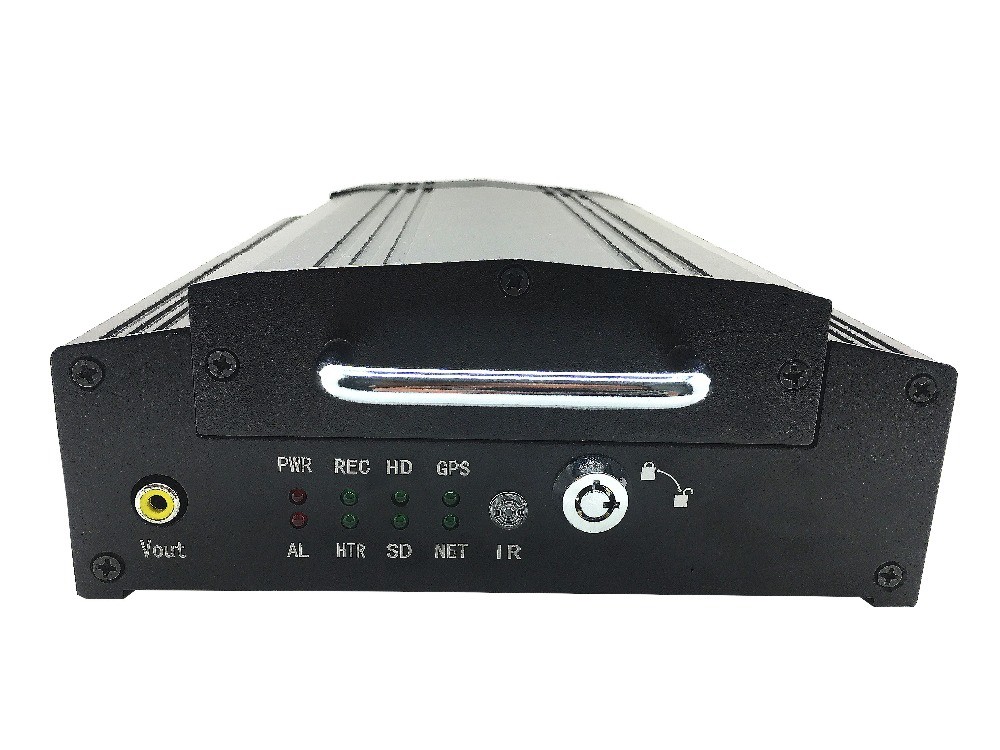

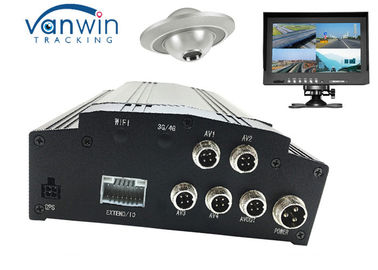

    720P blackbox 4CH HDD GPS Basic MDVR build-in G-sensor Vehicle Mobile DVR

    The DVR Black Box Recorder system records both the inside and outside of your vehicle to prove what really happened in any situation.


    The 4 camera device uses 2 regular cameras as well as 2 night/day cameras, up to 28 days of footage can be saved to its hard drive to ensure a moment is never missed.


    All video recorded is full 720P HD and 30 frames per second over 4 channels.


    The DVR device is a power managed and wide voltage +8V~+36V DC.


    Main Features

    • 4 Channel*720P or 1080P
    • H.264 compression format
    • 2.5“ SATA 1TB Hard disk
    • GPS tracking
    • 3G remote control
    • Built-in WIFI for option
    • 4CH full 720P/D1 recording
    • 6 alarm input, 2 alarm output
    • 2 way intercom
    • Remote oil&power cut-off
    • Mirror recording in SD card
    • Patent UPS continuously working to protect data upon sudden power-off
    • Customized GPS data format sending(optional)
    • Built-in Heater(optional)
    • Lockable, metal HDD handle, protect HDD efficiently
    • Watermark and Time/Date stamp in exported images







    Graphics Operation Interface

    System parameters can be set through external display and remote controller

    Security Management

    2-level management for user password, administrator password, supporting encrypted transmission

    Video and Preview

    Video Input, Output

    4-channel video input, 1channel video output; 1.0Vp-p, 75Ω


    Character superposition function, information superposition of time and date, device ID and GPS, etc.

    Video Compression Format

    Compression coding. Applying Hisilicon hi-performance processor.



    Preview Function

    Preview of 1-channle, 4-image stitching, supporting full screen triggered by event and switching of stitched images

    Frame Rate

    PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel


    4 channels x720P or 1080P


    Grade 1 to grade 5 for selection (descending)

    Bit Rate

    CIF: 256Kbps ~ 1.5 Mbps, 8-level bit rates for selection

    HD1: 600Kbps ~ 2 Mbps, 8-level bit rates for selection

    D1: 800Kbps ~ 3Mbps, 8-level bit rates for selection


    Audio Input, Output

    4-channel input, 1-channel output

    Compression Format

    G.726 coding


    Storage Medium

    Supporting dual SD card, which supports up to 32G

    File Format/ System


    Video Strategies

    Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording

    Video Search

    Searching by time, type, storage device and other conditions

    Video Playback

    Supporting playback on local device, supporting synchronous playback of up to 4 channels and analysis on vehicle information in the files

    Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time


    Alarm Input/ Output

    6-channel on/off signal alarm input, 1-channel on/off signal alarm output

    Alarm Recording

    Prerecording function 15 seconds before alarm, duration of recording after alarm can be adjusted from 30s ~ 30min

    Storage Space Alarm

    Supporting settings for alarm of storage space

    Function Alarm

    GPS overspeed alarm, acceleration alarm, motion detection alarm

    Communication Ports

    RS232, RJ45 10M/100M self-adaptable network interface

    Wireless Transmission (Optional)

    Embedded 3G wireless transmission module, WCDMA, CDMA2000, TD-SCDMA system for selection;

    Compatible with GPRS, EDGE;

    Embedded Wi-Fi module;

    GPS (Optional)

    Supporting external GPS

    Remote Data Transmission Channel Selection

    Supporting 3G, Wi-Fi data channel transmission, supporting Wi-Fi priority transmission strategy; supporting remote downloads of back-end recording strategies;

    PTZ Control

    Supporting PTZ control realized by local ad client software;

    Parameter Configuration

    Supporting parameter configuration functions for mobile DVR coding channel;



    System Upgrading

    Supporting SD card and remote upgrading

    Power Supply and Power Consumption

    Power Supply

    1. ACC on/off

    2. Delayed shutdown

    3. Timed on/off

    Input Voltage

    DC:+8V ~ +36V

    Output Voltage

    +12V@4*0.5A; +5V@0.5A

    Power-off Protection

    With patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure

    Power Consumption

    <10W in normal operation; <0.5W in standby mode

    Operating Environment


    Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃


    10% to 95%





    Our Service
    Server --- First year is free. We can also help to build up your own Server. Welcome to talk.
    CMS Platform --- iFAR is our brand name of softwares. Copyright protection. Free platform. It can support PC and Mobile phone.
    Player --- Free Player.
    Software --- iFAR is free. Welcome OEM customized project.
    Technology support --- We provide Installation guiding, Problem solving, Remote upgrading etc.
    Warranty --- We provide 12 months quality warranty based on normal use

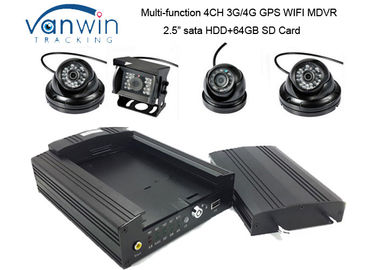

     VW619HD Series

    1. 4CH Basic HDD MDVR
    2. 4CH HDD MDVR+ GPS Tracking+G-sensor
    3. 4CH HDD MDVR+ 3G/4G+GPS Tracking+G-sensor
    4. 4CH HDD MDVR+3G+GPS Tracking+WIFI+G-sensor
