H.264 Vehicle Mobile Dvr Kit 4ch Car Dvr Camera System With 3g Gps Wifi

H.264 Vehicle Mobile Dvr Kit 4ch Car Dvr Camera System With 3g Gps Wifi

H.264 Vehicle Mobile Dvr Kit 4ch Car Dvr Camera System With 3g Gps Wifi

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW619HD

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
Delivery Time: 2-3 days for samples,15-30 days for large orders
Payment Terms: T/T or western Union or Paypal
Supply Ability: 5,000pcs per month
Contact Now
Detailed Product Description
Power Supply: 8V-36V Wide Voltage Camera Installtion: Front/side/rear Optional
Basic Function: 4 Cameras Monitoring With 3G Real Time,GPS Tracking, WIFI Download Software Support: All Softwares, Like Client,server,playback Software
Applicable: Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining Truck Fleets Resolution: 720P/D1/CIF, Max 4CH 720P Recording
Alarm: 6CH Alarm Inputs, 2CH Alarm Output Own Software/Platform: Yes
3G 4G GPS WIFI: Optional
High Light:

4 channel vehicle dvr

,

4 camera car dvr

H.264 Vehicle Mobile Dvr Kit 4ch Car Dvr Camera System With 3g Gps Wifi

VW619HD Series

4CH HDD MDVR with 4CH 720P basic recording

4CH HDD MDVR with 4CH 720P Basic Recording+ GPS Tracking

4CH HDD MDVR+ GPS tracking+ 3G Live Video

4CH HDD MDVR+ GPS tracking+ 3G LIve Video+ WIFI Download

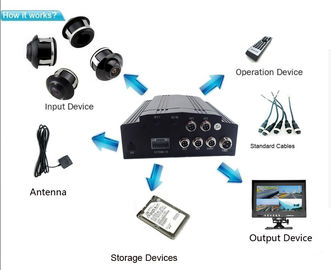

How does it work?

1.  It records both the inside and outside of your vehicle to prove what really happened in any situation.

2. The 4 camera device uses 2 regular cameras as well as 2 night/day cameras, up to 28 days of footage     can be saved to its hard drive to ensure a moment is never missed. All video recorded is full 720p HD       and 30 frames per second over 4 channels.

3. The DVR device is a power managed and wide voltage +8V~+36VDC.

4. It’s designed for all commercial vehicles, especially those that carry passengers.



Main Features

1) 4 Channel*720P or 1080P

2) H.264 compression format

3) 64GB SD Card

4) 2.5“ SATA 1TB Hard disk

5) GPS tracking

6) 3G remote control

7) Built-in WIFI for option

8) 6 alarm input, 2 alarm output

9) 2 way intercom

10) Remote oil&power cut-off

11) Mirror recording in SD card

12) Patent UPS continuously working to protect data upon sudden power-off

13) Customized GPS data format sending(optional)

14) Built-in Heater(optional)

15) Lockable, metal HDD handle, protect HDD efficiently

16) Watermark and Time/Date stamp in exported images



Main Specifications



Item Description
OS Linux
Graphics Operation Interface System parameters can be set through external display and remote controller
Security Management 2-level management for user password, administrator password, supporting encrypted transmission
Video and Preview Video Input, Output 4-channel video input, 1channel video output; 1.0Vp-p, 75Ω
OSD Character superposition function, information superposition of time and date, device ID and GPS, etc.
Video Compression Format Compression coding. Applying Hisilicon hi-performance processor.
Dual-Stream Supported
Preview Function Preview of 1-channle, 4-image stitching, supporting full screen triggered by event and switching of stitched images
Frame Rate PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel
Resolution AHD 720P,D1, HD1 ,CIF 4channel
Quality Grade 1 to grade 5 for selection (descending)
Bit Rate

CIF: 256Kbps ~ 1.5 Mbps, 8-level bit rates for selection

HD1: 600Kbps ~ 2 Mbps, 8-level bit rates for selection

D1: 800Kbps ~ 3Mbps, 8-level bit rates for selection

Audio Audio Input, Output 4-channel input, 1-channel output
Compression Format G.726 coding
Recording Storage Medium Supporting one 2.5” hard drive and one SD card, which supports up to 128G, supporting data redundancy storage technology;
File Format/ System Special file system
Video Strategies Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording
Video Search Searching by time, type, storage device and other conditions
Video Playback Supporting playback on local device, supporting synchronous playback of up to 4 channels and analysis on vehicle information in the files
Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time
Alarm Alarm Input/ Output 8-channel on/off signal alarm input, 1-channel on/off signal alarm output
Alarm Recording Prerecording function 15 seconds before alarm, duration of recording after alarm can be adjusted from 30s ~ 30min
Storage Space Alarm Supporting settings for alarm of storage space
Function Alarm GPS overspeed alarm, acceleration alarm, motion detection alarm
Communication Ports 485,RS232, RJ45 10M/100M self-adaptable network interface
Wireless Transmission (Optional) Supporting Wi-Fi;
GPS (Optional) Supporting external GPS
PTZ Control Supporting PTZ control realized by local;
Parameter Configuration Supporting parameter configuration functions for mobile DVR coding channel;
G-Sensor Embedded
System Upgrading Supporting SD card, hard drive upgrading and remote upgrading
Power Supply and Power Consumption Power Supply

1. ACC on/off

2. Hard drive lock on/off

3. Delayed shutdown

4. Timed on/off

Input Voltage DC:+8V ~ +36V
Output Voltage +12V@5*0.5A;
Power-off Protection With patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure
Power Consumption <10W in normal operation; <0.5W in standby mode
Operating Environment Temperature Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃
Humidity 10% to 95%
Dimensions 160(W) x62(H) x200(D) mm.
Weight

Net: 2200g, Gross: 3500g

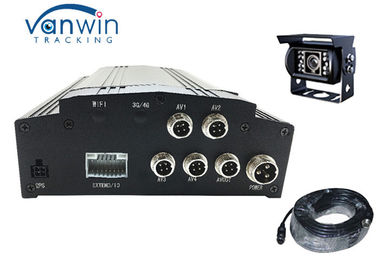

H.264 Vehicle Mobile Dvr Kit 4ch Car Dvr Camera System With 3g Gps Wifi 0

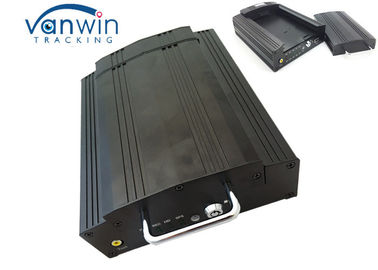

H.264 Vehicle Mobile Dvr Kit 4ch Car Dvr Camera System With 3g Gps Wifi 1



Our Client Monitoring Platform



H.264 Vehicle Mobile Dvr Kit 4ch Car Dvr Camera System With 3g Gps Wifi 2

FAQ

1.Q: Does the MDVR support Hard drive and SD card?

A: Yes, HDD version MDVR supports SSD, HDD, and SD card. SD card version MDVR supports max 2 SD card.

The storage capacity can be from 32GB to 2TB.



2.Q: Is it difficult to install MDVR into the vehicle?

A: Actually it is easy to install it into vehicle. Most driver can figure out how to connect the power cables.

And the camera installation is more easy. Just screw, connect and mount on the target place inside the vehicle.

3.Q: If I need door open and close alarm, overspeed alarm, reverse video, brake video, left-turn video, right-turn video, etc,

is it available?

A: Definitely yes!

The I/O RS232 and 485 extension port is for all expanded purposes, including the functions above.

In fact, there are more customized functions which can be connect through this port, such as Fuel sensor, Counter system,

PTZ camera, and so on.

4.Q: We have our own platform and server, can we use your MDVR? Do you have SDK or can you do customized platform for us?

A: Yes, we have SDK ready and welcome your OEM customized order!
