M12 4Pin Aviation Connector Male to Female Extension Cable 5m for Rear View Camera CCTV System

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW-E05
Minimum Order Quantity: 1 piece
Price: $2.5~$12 per piece
Packaging Details: it's as the accessory to connect MDVR with camera
Delivery Time: 2-3 days for samples, 5-10 days for large orders
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 5,000pcs per month
Gender: Male, Male To Female Connector: 4 Pin
Material: Waterproof, Rainproof Connector Type: Aviation Grade
Application: DVR Or Camera Connection, Power Supply Connection Type: Aviation Male And Female Connector
High Light:

monitor plug adapter

,

4 pin connector

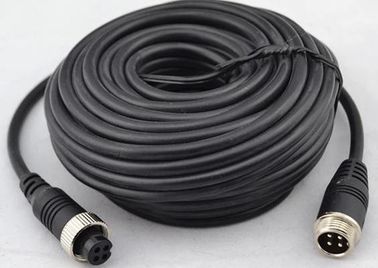

M12 4Pin Aviation Connector Male to Female Extension Cable 5m for Rear View Camera CCTV System



This cable used for vehicle rear view camera system,as a extension cable from the camera to the multiplexer or power harness.



Features
  • 4 pins with male head and female head
  • Rainproof, Shockproof
  • it's better than BNC connector as the aviation connectors will not loose or drop itself during driving.
  • Applicable to dvr, monitor and camera connections, as well as the power cables
  • GX12,Cable Cordset,4 Pin,Double Ended Cable,Male to Female,Straight,for Cable
  • Model sheet by screw fixation;
  • Ideal for performing their own installations and connections with total reliability and durability;
  • The connection is stable because it has threads for mounting;
Specifications



           Product name: M12 4Pin Aviation Connector Male to Female Extension Cable 5m for Rear View Camera CCTV System
Gender of Connector: male to female,Male to male, female to female
Connector type: water proof,with lock,arecraft grade
Cable length: depends on clients, 3M, 5M, 10M, 15M, 20M, 25M, 30M, 40M
Cable OD: 3mm to 6.24mm
PIN No: 2~10PIN
Cores wire: power,video,audio, earthing,cotton
Shielding: yes(optional)
Conductor: copper
Insolation material: PVC or PU
Jacket material: PVC
                 Certificate: CE, RoHS,FCC

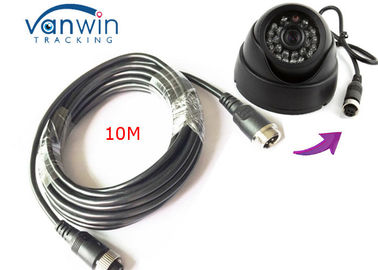

M12 4Pin Aviation Connector Male to Female Extension Cable 5m for Rear View Camera CCTV System 0

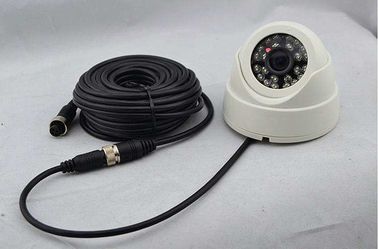

M12 4Pin Aviation Connector Male to Female Extension Cable 5m for Rear View Camera CCTV System 1
