|Place of Origin:||Shenzhen,China|
|Brand Name:||Vanwin Tracking|
|Minimum Order Quantity:||1pc|
|Packaging Details:||Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .|
|Delivery Time:||2-3 days for samples,15-30 days for large orders|
|Payment Terms:||T/T or western Union or Paypal|
|Supply Ability:||5,000pcs per month|
|Power Supply:||8V-36V||Storage Capacity:||SD Card, Max Support 2*128GB|
|Basic Function:||8 Cameras Monitoring With 3G Real Time,GPS Tracking,Wi-Fi||Software Support:||Client,Server,Playback Software|
|Car Make:||Bus,Truck,School Bus,Tailer,Petrol Cars And So On||Quality:||The World Class Anti-vibration Technology|
|Recording:||8ch Full D1 Recording||RJ45:||Support|
8ch h.264 dvr,
car camera dvr

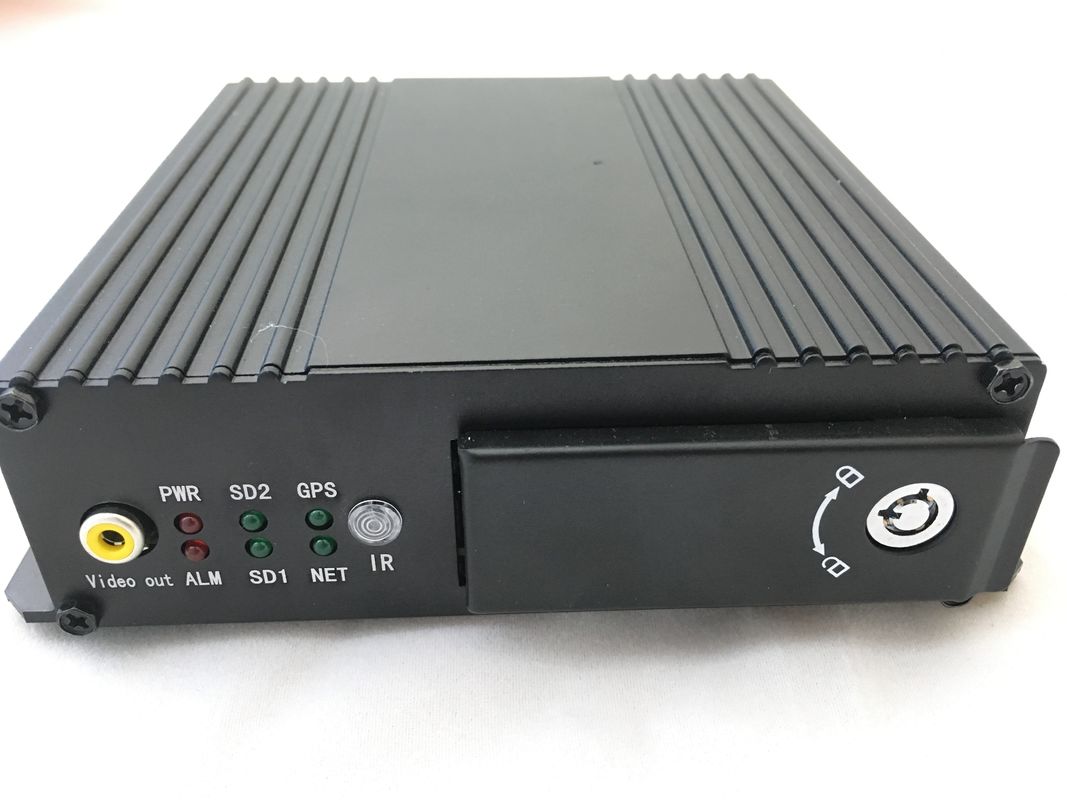

8CH MDVR with GPS 3G WIFI Support Playback CMS MDVR for Public Bus
1.The MDVR allows you to track and view your vehicles in REAL TIME via live video camera streaming from up to 8 cameras on your bus, train, ship and other various types of vehicles with people counting,
RFID card reader,fuel consumption sensor,LED display functions etc.
2. Using the Internet, WIFI, GPS, and Mobile CCTV technology, you can now view your vehicles, drivers and cargo from your office, wherever they are in the country. Our cloud-based Control Room software also allows you track your fleet, identifying speed, location, fuel-level and many more.
Vehicle Tracking that lets you SEE the FULL picture.
1) 8CH, Support 8 cameras
2) H.264 compression format
4) Dual Sd cards recording
5) GPS tracking
6) 3G remote control
7) Built-in WIFI for option
8) 6 alarm input, 1 alarm output
9) 2 way intercom
10) Remote oil&power cut-off
11) Mirror recording in SD card
12) Patent UPS continuously working to protect data upon sudden power-off
13) Customiz more function
14) Built-in Heater(optional)
15) Lockable, metal HDD handle, protect HDD efficiently
16) Watermark and Time/Date stamp in exported images
|Graphics Operation Interface||System parameters can be set through external display and remote controller|
|Security Management||2-level management for user password, administrator password, supporting encrypted transmission|
|Video and Preview||Video Input, Output||8-channel video input, 1channel video output; 1.0Vp-p, 75Ω|
|OSD||Character superposition function, information superposition of time and date, device ID and GPS, etc.|
|Video Compression Format||Compression coding. Applying Hisilicon hi-performance processor.|
|Preview Function||Preview of 1-channel, 4-image stitching, supporting full screen triggered by event and switching of stitched images|
|Frame Rate||PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel|
|Resolution||CIF, HD1 and D1 for selection, supporting 2 channels of D1+ 2 channels of CIF at the most|
|Quality||Grade 1 to grade 5 for selection (descending)|
|Bit Rate||CIF: 256Kbps ~ 1.5 Mbps, 8-level bit rates for selection|
|HD1: 600Kbps ~ 2 Mbps, 8-level bit rates for selection|
|D1: 800Kbps ~ 3Mbps, 8-level bit rates for selection|
|Audio||Audio Input, Output||8-channel input, 1-channel output|
|Compression Format||G.726 coding|
|Recording||Storage Medium||Supporting dual SD cards, which supports up to 256GB|
|File Format/ System||ASF/FAT32|
|Video Strategies||Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording|
|Video Search||Searching by time, type, storage device and other conditions|
|Video Playback||Supporting playback on local device, supporting synchronous playback of up to 8 channels and analysis on vehicle information in the files|
|Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time|
|Alarm||Alarm Input/ Output||6-channel on/off signal alarm input, 1-channel on/off signal alarm output|
|Alarm Recording||Prerecording function 15 seconds before alarm, duration of recording after alarm can be adjusted from 30s ~ 30min|
|Storage Space Alarm||Supporting settings for alarm of storage space|
|Function Alarm||GPS overspeed alarm, acceleration alarm, motion detection alarm|
|Wireless Transmission (Optional)||Embedded 3G wireless transmission module, WCDMA, CDMA2000, TD-SCDMA system for selection;|
|Compatible with GPRS, EDGE;|
|GPS (Optional)||Supporting external GPS, WIFI download|
|Remote Data Transmission Channel Selection||Supporting 3G; supporting remote downloads of back-end recording strategies;|
|PTZ Control||Supporting PTZ control realized by local ad client software;|
|Parameter Configuration||Supporting parameter configuration functions for mobile DVR coding channel;|
|System Upgrading||Supporting SD card, hard drive upgrading and remote upgrading|
|Power Supply and Power Consumption||Power Supply||1. ACC on/off|
|2. Hard drive lock on/off|
|3. Delayed shutdown|
|4. Timed on/off|
|Input Voltage||DC:+8V ~ +36V|
|Power-off Protection||With patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure|
|Power Consumption||<10W in normal operation; <0.5W in standby mode|
|Operating Environment||Temperature||Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃|
|Humidity||10% to 95%|
3G Client Monitoring Platform via PC/Mobile Phone
1. What about my family being recorded when using my vehicle for private use?
Re: The unit is completely secure of unauthorised access and the data cannot be viewed unless an event calls for data recovery. In other words, no one can access the data unless a prior event has called for a data recovery for the time and date stamp of the event. Only the data for this time and date stamp will be recovered and the data will then be able to be used as evidence.
2. Who has authority to see the data?
Re: requesting authority includes the Police, local authority (council), Insurance Company and any legal representative working on the owner's behalf.
3. Can I disable the video and audio recording?
Re: No, the recorder is encrypted and locked down and cannot be accessed unless an authorised person has been called to access the data.
4. Does the system work 24/7?
Re: Yes, and the standard system works off the ignition switch only which saves the battery of the vehicle from draining.
5. Does the recorder offer GPS, speed, 3G, WIFI, G sensors?
A Yes, they are optional.
