64GB SD Card 4CH 1080P AHD 3G 4G WIFI And GPS Mobile NVR For Bus / Truck / Taxi
Product Details:
Place of Origin: | Shenzhen,China |
Brand Name: | Vanwin Tracking |
Certification: | CE/FCC/RoHS |
Model Number: | VW619HD-GSW |
Payment & Shipping Terms:
Minimum Order Quantity: | 1pc |
---|---|
Price: | negotiated |
Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
Delivery Time: | 2-3 days for samples,15-30 days for large orders |
Payment Terms: | T/T or western Union or Paypal |
Supply Ability: | 5,000pcs per month; 4CH 1080P AHD 3G 4G WIFI and GPS mobile NVR for bus truck taxi |
Detail Information |
|||
Power Supply: | 8V-36V | Storage Capacity: | HDD/SSD, Can Support 2TB HDD |
---|---|---|---|
Functions: | 4G 3G, GPS Tracking, Wi-Fi, G-sensor, 6CH Alarm Input, Lan Port | Software Support: | Client, Server, Playback Software |
VPN: | YES, Can Customize | 3G 4G GPS WIFI: | Optional |
Cameras: | 720P 1.0MP, 960P 1.3MP, 1080P 2.0MP | External Hard Drive: | Supported |

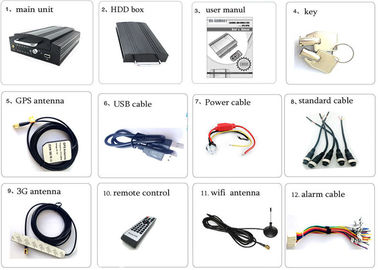

Size: | 160(W) X62(H) X200(D) Mm | Accessories: | HDD, Cameras, Extension Cables, Monitor, Sound Pik-up |
High Light: | vehicle camera dvr,car digital video recorder |
Product Description
4CH 1080P AHD 3G 4G WIFI and GPS mobile NVR for bus truck taxi
3G Mobile DVR is mainly used for vehicle fleeting management with live video and monitoring ,and you can know where the vehicle is with GPS tracking especially necessary for school bus or goods truck or bank money carrying cars. Live monitoring what they are doing.Welcome you.
1. 4 channel Bus security with 3G GPS WIFI for option
2. Deter bullying, fighting behavior, Data protection

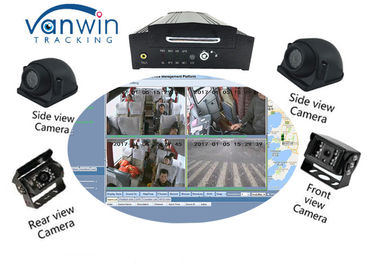

3. Front ,side ,back 360 degress recording to monitor your vehicle
4. 3G live and tracking with PC or Mobile Phone
The 4 camera device uses 2 regular cameras as well as 2 night/day cameras, up to 28 days
It is designed for all commercial vehicles, especially those that carry passengers.
Main Features
- 4CH, Support 4 cameras
- H.264 compression format
- 64GB SD Card
- 2.5“ SATA 2TB Hard disk
- GPS tracking
- 3G remote control
- Built-in WIFI for option
- 6 alarm input, 1 alarm output
- 2 way intercom
- Remote oil&power cut-off
- Mirror recording in SD card
- Patent UPS continuously working to protect data upon sudden power-off
- Customized GPS data format sending(optional)
- Built-in Heater(optional)

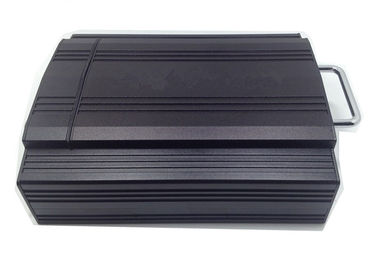

- Lockable, metal HDD handle, protect HDD efficiently
- Watermark and Time/Date stamp in exported images
Specification
Item |
Description |
||
OS |
Linux |
||
Graphics Operation Interface |
System parameters can be set through external display and remote controller |
||
Security Management |
2-level management for user password, administrator password, supporting encrypted transmission |
||
Video and Preview |
Video Input, Output |
4-channel video input, 1channel video output; 1.0Vp-p, 75Ω |
|
OSD |
Character superposition function, information superposition of time and date, device ID and GPS, etc. |
||
Video Compression Format |
Compression coding. Applying hisilicon hi-performance processor. |
||
Dual-Stream |
Supported |
||
Preview Function |
Preview of 1-channel, 4-image stitching, supporting full screen triggered by event and switching of stitched images |
||
Frame Rate |
PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel |
||
Resolution |
CIF, HD1 and D1 for selection, supporting 2 channels of D1+ 2 channels of CIF at the most |
||
Quality |
Grade 1 to grade 5 for selection (descending) |
||
Bit Rate |
CIF: 256Kbps ~ 1.5 Mbps, 8-level bit rates for selection HD1: 600Kbps ~ 2 Mbps, 8-level bit rates for selection D1: 800Kbps ~ 3Mbps, 8-level bit rates for selection |
||
Audio |
Audio Input, Output |
4-channel input, 1-channel output |
|
Compression Format |
G.726 coding |
||
Recording |
Storage Medium |
Supporting one 2.5” hard drive and one SD card, which supports up to 32G, supporting data redundancy storage technology; |
|
File Format/ System |
ASF/FAT32 |
||
Video Strategies |
Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording |
||
Video Search |
Searching by time, type, storage device and other conditions |
||
Video Playback |
Supporting playback on local device, supporting synchronous playback of up to 4 channels and analysis on vehicle information in the files |
||
Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time |
|||
Alarm |
Alarm Input/ Output |
6-channel on/off signal alarm input, 1-channel on/off signal alarm output |
|
Alarm Recording |
Prerecording function 15 seconds before alarm, duration of recording after alarm can be adjusted from 30s ~ 30min |
||
Storage Space Alarm |
Supporting settings for alarm of storage space |
||
Function Alarm |
GPS overspeed alarm, acceleration alarm, motion detection alarm |
||
Communication Ports |
RS232, RJ45 10M/100M self-adaptable network interface |
||
Wireless Transmission (Optional) |
Supporting Wi-Fi; |
||
GPS (Optional) |
Supporting external GPS |
||
PTZ Control |
Supporting PTZ control realized by local; |
||
Parameter Configuration |
Supporting parameter configuration functions for mobile DVR coding channel; |
||
G-Sensor |
Embedded |
||
System Upgrading |
Supporting SD card, hard drive upgrading and remote upgrading |
||
Power Supply and Power Consumption |
Power Supply |
1. ACC on/off 2. Hard drive lock on/off 3. Delayed shutdown 4. Timed on/off |
|
Input Voltage |
DC:+8V ~ +36V |
||
Output Voltage |
+12V@4*0.5A; +5V@0.5A |
||
Power-off Protection |
With patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure |
||
Power Consumption |
<10W in normal operation; <0.5W in standby mode |
||
Operating Environment |
Temperature |
Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃ |
|
Humidity |
10% to 95% |
||
Dimensions |
160(W) x62(H) x200(D) mm. |
||
Weight |
Net: 2200g, Gross: 3500g |
Our Advantages
1. Our dvr has the world class anti-vibration technology,widely used in military .It is very long lifetime for over 10 years.
2. We are professional manufacturer,who can offer you great price and technology support.
3. We have a very warm and capable technical team,who can customize many projects for you.We have many examples .Please check our offical website.
4. Great Service.
Our Client Monitoring Platform for PC and Mobile Phone
FAQ
1)Is the GPS polling configurable? If so where can this be done?
Re:GPS polling is configurable. For the DVR local settings, we didn't make the interface to show such settings, because it is a kind of protection. If you need, we could also make a interface for such settings. By our current version, you could only set the GPS polling frequency by the server config( it means you have to set up your own server, then you could set the frequency by your own need)
2)Is it possible to rename the alarm inputs? For example in burglary or SOS?
Re:Yes, othe model above supports 6 alarm inputs, such 6 alarm signals are customize for you, it means you could set different alarm signal to replace the original ones.( like you could set door open or window broken as the inputs, this is no problem)
3)Can you explain where we can see (in the client) when an alarm input is triggered? We tried it and saw a car blinking on the map, but there was no report visible. The alarm input was activated by a positive 12V (manual page 15 art. 2.3.6).
Re: As for the alarm list, you have to set the signals firstly, please click the above “setting” menu, then find “alarm linkage”, then there are many options for the signals, you could tick which you need, and upload a MP3 sound as alert. Please try and check.
4)Where can we configure the email notifications in case of an alarm?
Re:In fact, only when you set up the server, then you could configure the email notification by our server
software.
If you're interested in the system above, please be free to get the high-quality solution and system with us.
