Small Vandalproof IR Mini Dome AHD Camera Bus / Vehicle / Car Camera 1080p

Small Vandalproof IR Mini Dome AHD Camera Bus / Vehicle / Car Camera 1080p
Small Vandalproof IR Mini Dome AHD Camera Bus / Vehicle / Car Camera 1080p Small Vandalproof IR Mini Dome AHD Camera Bus / Vehicle / Car Camera 1080p Small Vandalproof IR Mini Dome AHD Camera Bus / Vehicle / Car Camera 1080p Small Vandalproof IR Mini Dome AHD Camera Bus / Vehicle / Car Camera 1080p Small Vandalproof IR Mini Dome AHD Camera Bus / Vehicle / Car Camera 1080p

Large Image :  Small Vandalproof IR Mini Dome AHD Camera Bus / Vehicle / Car Camera 1080p

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW-C205
Payment & Shipping Terms:
Minimum Order Quantity: 5PCS
Price: negotiated
Packaging Details: Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 100pcs
Delivery Time: 2-3 days for samples,5-10 days for large orders
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 5,000pcs per month; Small Vandalproof IR Mini Dome AHD Camera Bus / Vehicle / Car Camera 1080p

Small Vandalproof IR Mini Dome AHD Camera Bus / Vehicle / Car Camera 1080p

Description
Type: CCTV Bus Dome Camera Power: DC12 Or 24V
TV System: PAL Or NTSC Lens Angle: 140 Degree Wide Angle
Color: Black Resolution: 600TVL/700TVL/800TVL
Service: OEM / ODM Waterproof: IP67
High Light:

security monitor camera

,

car bumper camera

Small Vandalproof IR Mini Dome AHD Camera Bus / Vehicle / Car Camera 1080p



Main Features



 1. Horizontal Resolution:  600TVL/700TVL/800TVL; 720P960P/1080P



 2. Water Resistance: IP67



 3. Suitable for safety and security



 4. Waterproof and can be installed on your license plate



 5. Mirror / Normal image Adjustment (depending on the chips)





Specifications





TV System NTSC/PAL
Sensor 1/4 SONY CCD
Effective Pixels PAL:500(H)x582(V) NTSC510(H)x492(V)
Horizontal Sync Frequency PAL:15625kHz NTSC:15734kHz
Vertical Sync Frequency PAL:50 Hz NTSC:60 Hz
Exposure A.E: auto electronics shutter 1/60s(1/50s)~1/100000s
Sync.System Internal
AGC Auto
BLC Auto
Resolution 480TVL/600TVL/700TVL/800TVL
Video out 1.0Vp-p composite video. 75(ohm) load
S/N Ratio ≥48dB
Current Consumption Max.150mA
Power Supply DC12V±10%
Operating Temperature -30℃-70℃,RH95%MAX
Storage Temperature -40℃-85℃,RH95%MAX
Lens Horizontal Angel/ Built-in  120° 90° 75°
Built-in Lens f:1.65mm f:2.8mm f:3.15mm
Water-proof  IP66-IP68
Minimum Illumination 0 Lux (with 8Pcs Led ON)



Application







The mini bus dome camera is widely used in bus, car, taxi, dangerous cargo truck, police car, van, Train, ship, home security etc.





Quality Control



1) All our products must be 100% pre-tested before shipping by our professional QC Team

2) Items have 18 months warranty since the date receving the goods.

3) Aging time 48 hours to ensure stable quality

4) Life time tech support





Packing Detail



1. Neutral Box.

2. Your Logo is also Welcomed.

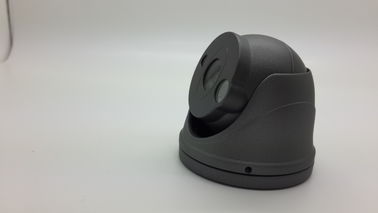

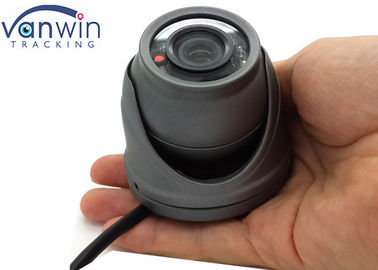

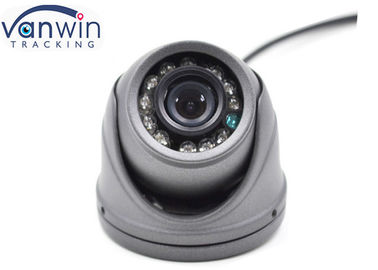

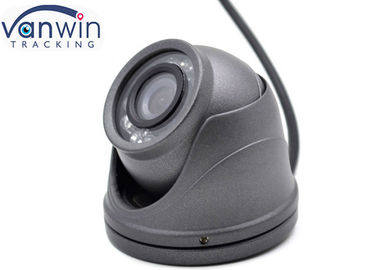

Small Vandalproof IR Mini Dome AHD Camera Bus / Vehicle / Car Camera 1080p 0

Small Vandalproof IR Mini Dome AHD Camera Bus / Vehicle / Car Camera 1080p 1

Small Vandalproof IR Mini Dome AHD Camera Bus / Vehicle / Car Camera 1080p 2
