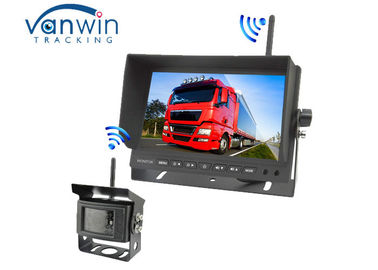

HD Screen TFT wireless Car Monitor Night Vision With Long Transmission Distance for Reversing

HD Screen TFT wireless Car Monitor Night Vision With Long Transmission Distance for Reversing

    • HD Screen TFT wireless Car Monitor Night Vision With Long Transmission Distance for Reversing
    • HD Screen TFT wireless Car Monitor Night Vision With Long Transmission Distance for Reversing
    • HD Screen TFT wireless Car Monitor Night Vision With Long Transmission Distance for Reversing
    • HD Screen TFT wireless Car Monitor Night Vision With Long Transmission Distance for Reversing
    • HD Screen TFT wireless Car Monitor Night Vision With Long Transmission Distance for Reversing
  • HD Screen TFT wireless Car Monitor Night Vision With Long Transmission Distance for Reversing

    Product Details:

    Place of Origin: Shenzhen,Guandong
    Brand Name: Vanwin Tracking
    Certification: CE/FCC/RoHS
    Model Number: VW-M710WHD

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: negotiated
    Packaging Details: Color Neutral Box ; Neutral giftbox,white box and customize box for your option Packing details: Carton Size: 58.2*45.8*34cm N.W:.15.08KG PER CTN G.W: 15.88KG PER CTN 10pcs / ctn
    Delivery Time: 1-3 working days
    Payment Terms: T/T,Western Union,Paypal;
    Supply Ability: 5000 pcs per month; 7" Reversing Wide Screen Monitor Night Vision Wireless Backup Camera kit for Truck, Trailer
    Contact Now
    Detailed Product Description
    Power Supply: 24V±10% DC Screen Size: 7 Inch Wireless Monitor
    Screen Type: 16:9 Resolution: 1024*R.G.B*600
    Car Make: Bus, Truck, Other Special Vehicles Certification: ISO9001; CE
    System: PAL&NTSC Auto-switching 2.4G Wireless Transmitter: 100M In Open Area

    HD Screen TFT wireless Car Monitor Night Vision With Long Transmission Distance for Reversing

    • 100% Adaptive Wide Voltage: Flexible vehicle compatibility support wide voltage 9~36V, supports almost all vehicle power supply voltage.
    • Super Long Transmission Distance: Adopted 2.4G digital wireless technologies, embedded processor and operating system, low power consumption, no radiation, flicker-free and clear image. Non-interference Non-delay transmission in the long distance of 328ft.
    • Multiple Installation Methods: We provide three installation methods of this backup camera system, absorption on the windscreen and fixing on the center console, both of which can be installed hands-on with some simple tools.
    • Night Vision and Waterproof Design: This wireless backup camera is designed with 18 Infrared LEDs, night vision wireless backup camera performs well at night, aluminum alloy material shell and outside hanging design, it has anti-vibration and anti-corrosion anti-weather ability, make it suitable for different environments.
    • Super Wide Visual Range: The backup camera and monitor can be adjusted in angle up and down, and the camera of reversing has a visual wide angle in more than 120-degree, which can solve your problem of reversing rear-view perfectly.

    Specification



    7inch 16:9  7 inch Wireless monitor
    Stents distance:110mm-200mm
    Resolution:1024*R.G.B*600
    PAL&NTSC auto-switching
    Power supply:24V±10%
    Built-in 2.4G wireless function,can receive audio/vedio
    Audio/video; 1Way2.4G wireless video&Audio input
    2.4G in open area:100M
    Built-in speaker
    OSD menu,remote control
    Touch button screen
    One wireless waterproof camera
    Dimention:180*121*24mm
    embedded with 2.4G transmitter
    Image sensor: 1/3″ 8082
    Definition:720P AHD
    Miminum illumination:05.lux
    image angle:120°
    System:PAL&NTSC auto-switching
    2.4G wireless transmitter:100M in open area
    Power supply :12V~24V±10%
    Water proof class :IP67/68
    Aluminum alloy shell, outside hanging design
    special for bus, truck.
    Watrproof .shockproof,infrared night vision, Resistance to high temperature and humidity
    Standard accessories L1.5m power line



    HD Screen TFT wireless Car Monitor Night Vision With Long Transmission Distance for ReversingPictures

    HD Screen TFT wireless Car Monitor Night Vision With Long Transmission Distance for Reversing

    HD Screen TFT wireless Car Monitor Night Vision With Long Transmission Distance for Reversing



    HD Screen TFT wireless Car Monitor Night Vision With Long Transmission Distance for ReversingHD Screen TFT wireless Car Monitor Night Vision With Long Transmission Distance for Reversing



    Packaging & Shipping



    1. Box can be color box, white box, OEM

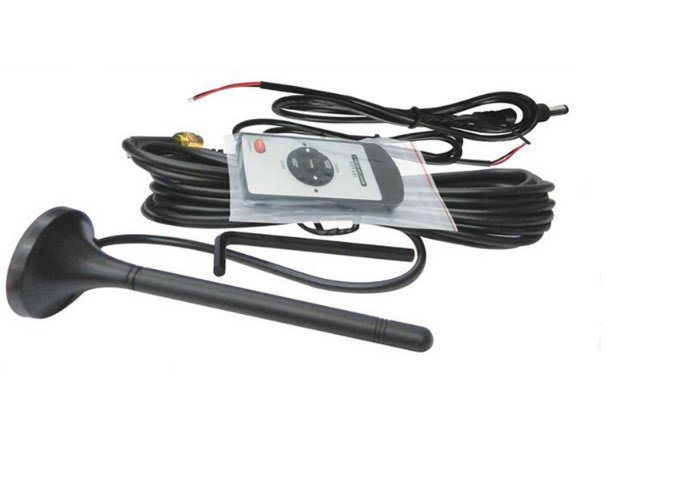

    2. Package includes power line, bracket, remote controller, headrest frame, insert card and user manual.



    3. Goods will be shipped out within 2~7 days after the receipt of payment.
