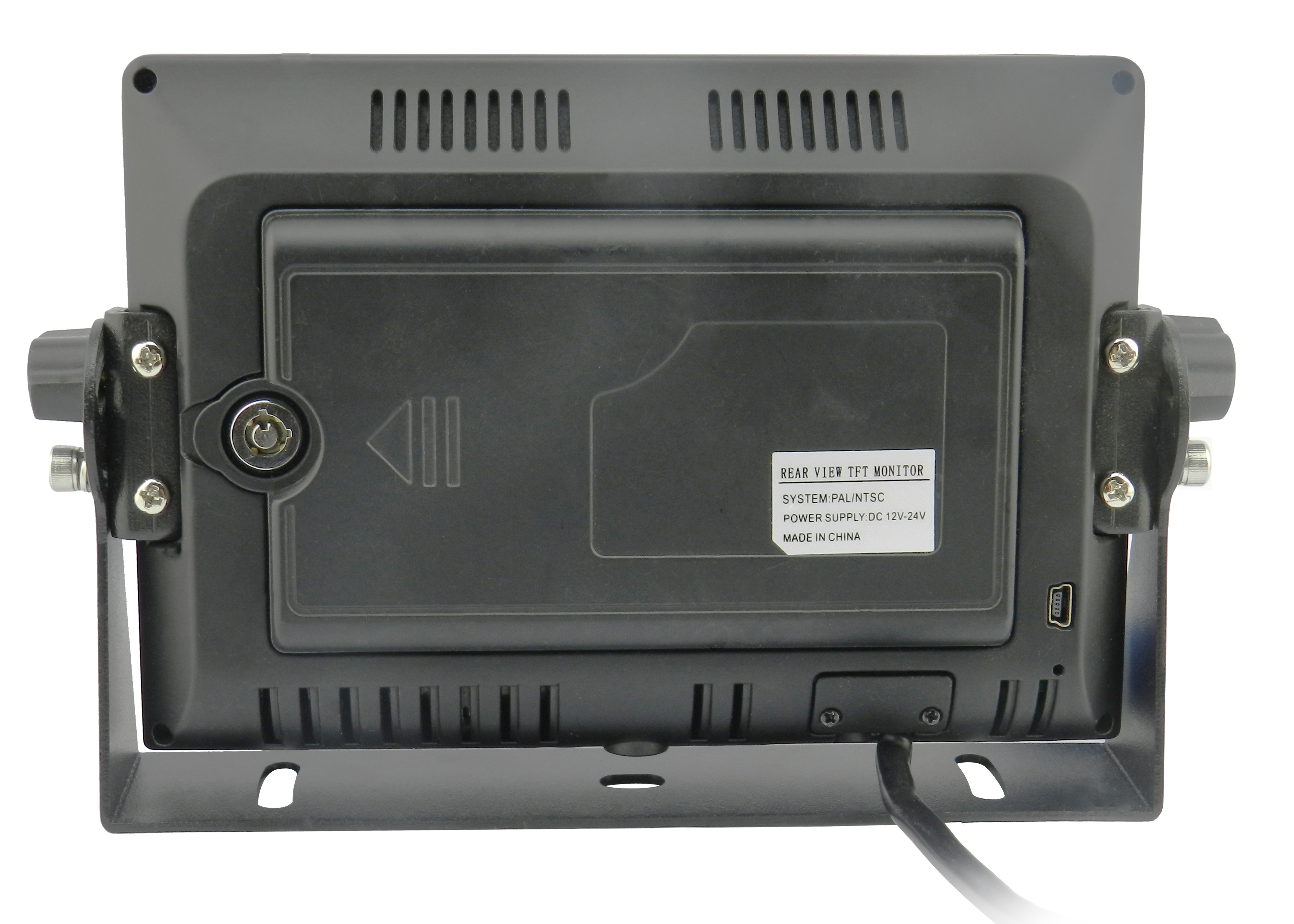

IPS HD Car Tft Lcd Monitor 7 Inches 360° Around Bird View Cameras System 12~24V

IPS HD Car Tft Lcd Monitor 7 Inches 360° Around Bird View Cameras System 12~24V

    • IPS HD Car Tft Lcd Monitor 7 Inches 360° Around Bird View Cameras System 12~24V
    • IPS HD Car Tft Lcd Monitor 7 Inches 360° Around Bird View Cameras System 12~24V
    • IPS HD Car Tft Lcd Monitor 7 Inches 360° Around Bird View Cameras System 12~24V
    • IPS HD Car Tft Lcd Monitor 7 Inches 360° Around Bird View Cameras System 12~24V
    • IPS HD Car Tft Lcd Monitor 7 Inches 360° Around Bird View Cameras System 12~24V
  • IPS HD Car Tft Lcd Monitor 7 Inches 360° Around Bird View Cameras System 12~24V

    Product Details:

    Place of Origin: Shenzhen,Guandong
    Brand Name: Vanwin Tracking
    Certification: CE/FCC/RoHS
    Model Number: VW-M7360S

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Kit
    Price: negotiated
    Packaging Details: Color Neutral Box ; Neutral Color box,white box and customize box for your option
    Delivery Time: 1~2 days for sample and 3~15 working days for big order
    Payment Terms: T/T,Western Union,Paypal
    Supply Ability: 5000 pcs per month ;
    Contact Now
    Detailed Product Description
    Size: 7 Inch IPS HD Panel Resolution: 1024*R.G.B*600
    Screen Type: 16:9 Panel Brightness: LED 500cd/m2
    Image Reversion: UP/Down And Left/Right Quad Images: Support
    Storage Type: USB(C10) * 1, 128GB(Max) Power Supply: 12~24V
    Compatible System: NTSC & PAL (automatically) Storage Function: Optional
    Camera Type: Fish-eye Cameras Car Make: Suitable For Universal, All Cars, Coach, Buses, Bus

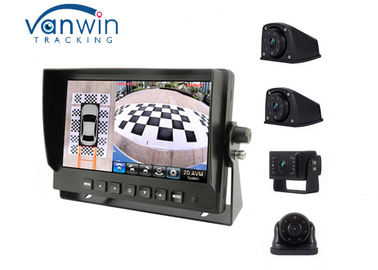

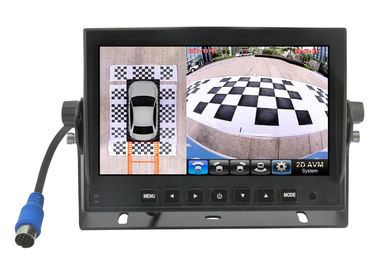

    7inch IPS HD Monitor with 360° Around Bird View cameras system



    Main Feature

    ●7 Inch HD Monitor With 360°Around View function

    ●3D/2D 360° Seamless View of the Vehicle Surroundings
    ●360° Blind Spots Coverage

    ●720P(1280*720) High Resolution
    ●Four 210 Degree Ultra Wide Fish-eye Cameras
    ●Video Recording

    MONITOR   Model No. VW-M7360S
    Parameters Screen Size 7 inch IPS HD Panel
    Resolution 1024*R.G.B*600
    Screen Radio 16:09
    Panel Brightness LED 500cd/m2
    Viewing Angle Hor. L(70°)/R(70°) Ver. UP(50°)/DOWN(70°)
    Video Input 4*CH 720P Video Input
    Audio Input Non
    Language Simplified Chinese/ English
    Images Display 360°Around View Support 3D image display
    Single Image Support 2D image display
    Quad Images Support
    Indicator Lamp & Trigger Front View No
    Left/Right Turning Blinker Support
    Reversing View Support
    Power Working Voltage 12V-24V
    Power Consumption <5W
    Shockproof Class 4G
    Environment Operating Temperature .-30+70 ºC
    Operating Relative Humidity 85%RH
    Storage Temperature .-30+75 ºC
    Control Panel Key Support
    Remote Control Support
    Dimension L*W*H(mm) 180*65*138.5(include the bracket)
    CPU CPU Freescale IMX6
    Module Quad Cores, 1.3GHz frequency
    RAM 1G DDR3
    DVR Storage Type USB(C10) * 1, 128GB(Max)
    Video Storage 2G/1H 2G(4 channel*hour)
    Recording Video Format AVI
    Playback resolution 4*720P(1280*720)
    Application Vehicles Suit for light vehicle or heavy vehicle
    Vehicle length L=3M-15M
    Cameras Camera Type Fish-eye Cameras
    Resolution 720P(1280*720)
    Streaming Function Four 210 Degree Ultra Wide Fish-eye Cameras with 3D

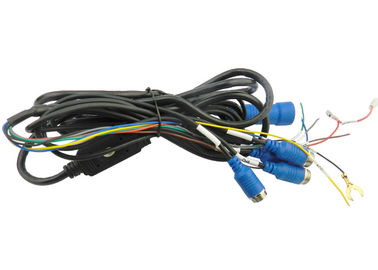

    Extension Cable 4 Extension cables with 4 PIN connector L=5M/10M/15M/20M



    7inch Car Monitor Demission:

    IPS HD Car Tft Lcd Monitor 7 Inches 360° Around Bird View Cameras System 12~24V

    IPS HD Car Tft Lcd Monitor 7 Inches 360° Around Bird View Cameras System 12~24V

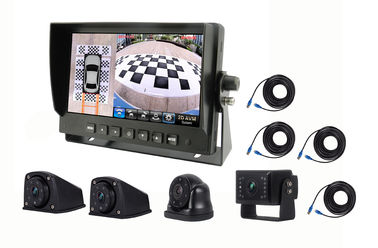

    360° Around View cameras system Application



    IPS HD Car Tft Lcd Monitor 7 Inches 360° Around Bird View Cameras System 12~24V
