AHD Two Split Waterproof 1080P Car Monitor With IP69K7 Inch
Product Details:
| Place of Origin: | China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE ROHS |
| Model Number: | VW718LA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | USD30-USD70 |
| Packaging Details: | Neutral package, carton box |
| Delivery Time: | 3-15days upon payment |
| Payment Terms: | L/C, T/T, Western Union,paypal |
| Supply Ability: | 1000PCS/month |
|
Detail Information |
|||
| Brightness: | 500-650cd/㎡ | Support: | 2 Splits,waterproof IP69 |
|---|---|---|---|
| Car Make: | Universal Vehicles | Working Temperature: | -20℃ To 70℃ |
| Resolution: | 1024*R.G.B*600 | Screen Size: | 7" 9" 10.1" Optional |
| Power Supply: | Automobile Storage Battery (12-326V) ，12V Output | Color: | Black |
| Video Input: | Quad/2-CH Inputs | Size: | 7inch(9inch, 10.1 Inch As Optional) |
| Viewing Angle: | 160° | Format: | PAL,NTSC |
| Bracket: | Metal U Type Bracket, Detachable Sunshade | Product Name: | 7"Inch AHD Two Split Waterproof Monitor |
| High Light: | Two Split 1080P Car Monitor,Waterproof Car Monitor With IP69K,AHD 1080P Car Monitor |
||
Product Description
1080P 7"Inch AHD Two Split Waterproof car Monitor with IP69K
SPECIFICATION
7"Inch AHD Two Split Waterproof Monitor
AV Resolution:1024*R.G.B*600,
Back Light Luminance:LED,LED,500-650cd/㎡
View angle:L/R:85°,UP:85°,down:85° degree
Two-channel AHD video input,adjustable display of single and two-segment images and picture-in-picture images Full images/2 images adjustable ,Support AHD720P/960P/1080P and CVBS multi-video hybrid input
2 ways Trig Trigger priority:V2>V1, Reverse reference point
TWO channels independently adjust the image flip in left, right, upper and lower directions
with light sensor receiver,can adjust screen brightness automatically day & night
System:PAL&NTSC auto-switching
Power supply: Power supply: DC 9V-36V input,12V output
High-low voltage protection&short circuit protection
Working temperature:-20℃ to 70℃
Storage temperature:-30℃ to 80℃
Waterproof grade: IP69K
with shock resistance of:5.9G
Apearance color:Ferrous metal
standard:Metal U type bracket, Detachable sunshade
RCA/ 4pin connector (Optional)
Dimension:188*127.2*34(79)mm

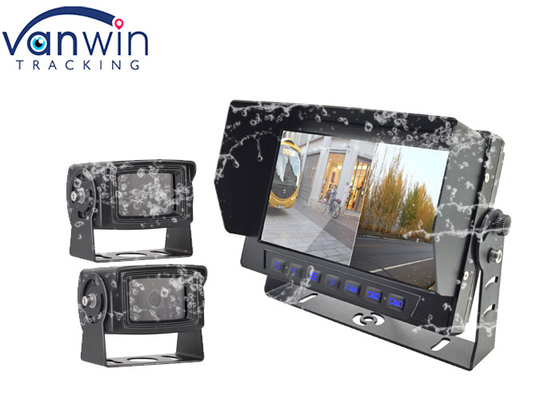

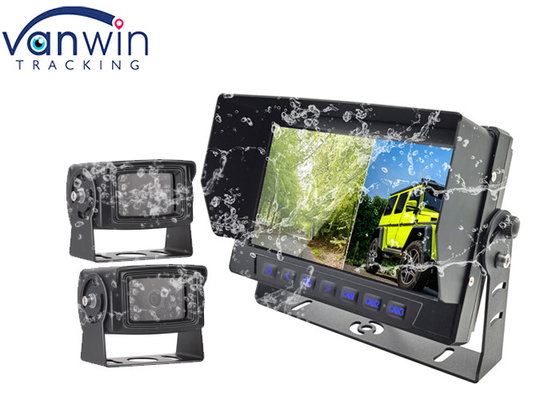

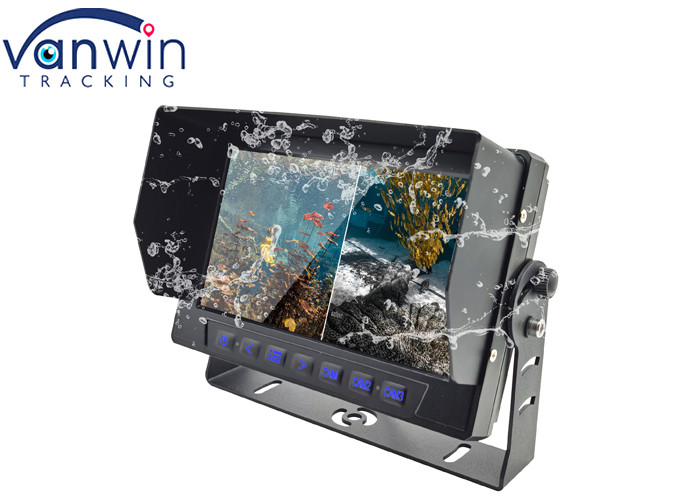

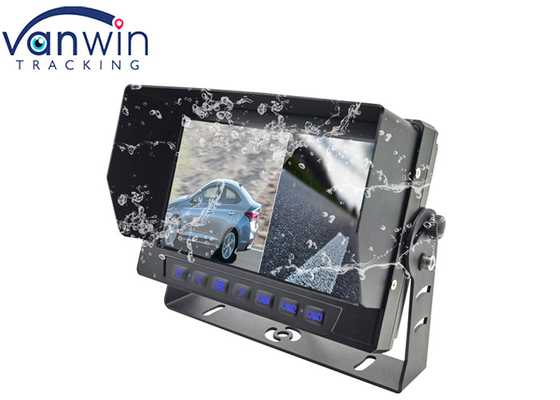

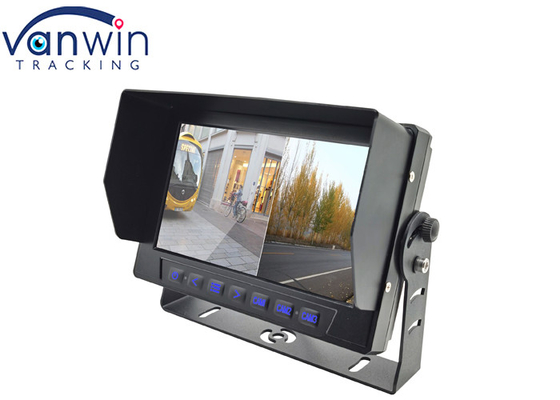

PRODUCT PICTURE
INSTALLATION
APPLICATION
