Digital TFT LCD Color Waterproof Auto Parking Car Back Rearview Monitor 7 Inch
Product Details:
| Place of Origin: | China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE ROHS |
| Model Number: | VW718M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | USD30-USD70 |
| Packaging Details: | Neutral package, carton box |
| Delivery Time: | 3-15days upon payment |
| Payment Terms: | L/C, T/T, Western Union,paypal |
| Supply Ability: | 1000PCS/month |
|
Detail Information |
|||
| Brightness: | 350-400cd/m2 | Signal Input: | 3 Way Video Input |
|---|---|---|---|
| Working Temperature: | -20℃ To 70℃ | Resolution: | 800*R.G.B*480 |
| Selling Point: | Waterproof IP69K(certified) | Power Supply: | Automobile Storage Battery (12-36V) ，12V Output |
| Color: | Black | Size: | 7 Inch(9inch, 10.1 Inch As Optional) |
| Format: | PAL,NTSC | Bracket: | Metal U Type Bracket, Detachable Sunshade |
| Product Name: | 7 Inch Digital TFT- LCD Color Waterproof | ||
| High Light: | 7 Inch TFT Car Monitor,rear view camera monitor,Digital TFT Car Monitor |
||
Product Description
7 inch Digital TFT- LCD Color waterproof Auto Parking Car Back Rearview Monitor
SPECIFICATION
7 inch Waterproof Car Monitor with (Detachable sunshade )
Resolution: 800*R.G.B*480 ,Brightness:LED,350-400cd/m2
View angle:L/R 70°,UP:50°,down: 70° degree
3 way video input, 3 ways trigger function:V2>V1>V3
Reference point and time control for reverse gear setting
System:PAL&NTSC auto-switching
with light sensor receiver,can adjust screen brightness automatically day & night
Power supply:DC 12V-36V input,12V output Operating
High-low voltage protection&short circuit protection
Working temperature:-20℃ to 70℃
Storage temperature:-30℃ to 80℃
Waterproof grade: IP69k
with shock resistance of:5.9G
Apearance color:Ferrous metal
standard:Metal U type bracket
RCA/ 4pin connector(Optional)
Dimension:188*127.2*34(79)mm

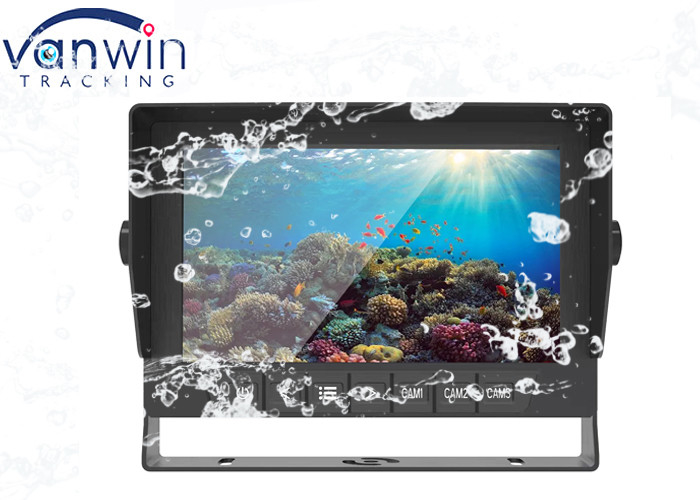

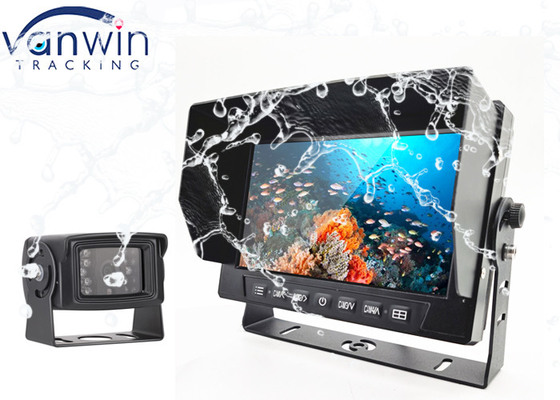

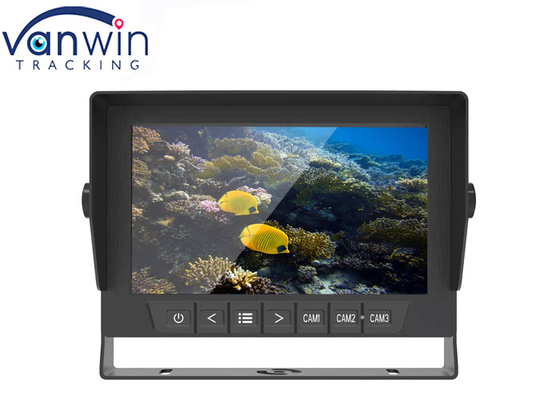

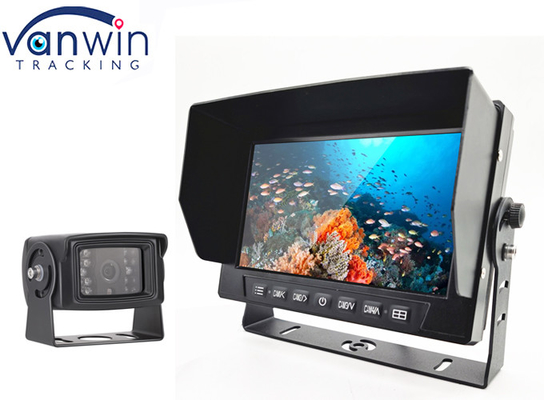

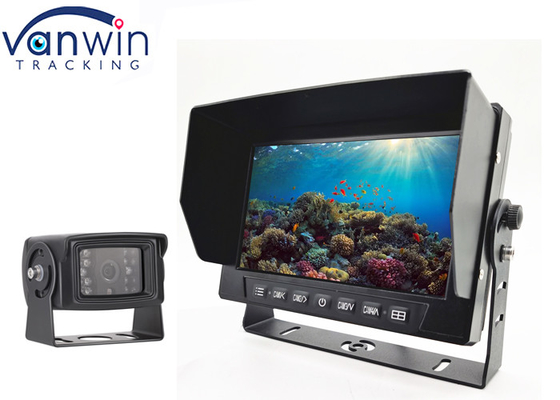

PRODUCT PICTURE
INSTALLATION
APPLICATION
