9 Inch LCD Reverse Rear View Car Monitor Truck Camera Systems
Product Details:
| Place of Origin: | China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE ROHS |
| Model Number: | VW906 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | USD30-USD70 |
| Packaging Details: | Neutral package, carton box |
| Delivery Time: | 3-15days upon payment |
| Payment Terms: | L/C, T/T, Western Union,paypal |
| Supply Ability: | 1000PCS/month |
|
Detail Information |
|||
| Brightness: | LED,300-350cd/m2 | Signal Input: | 2 Way Video Input, 2 Way Audio Input |
|---|---|---|---|
| Car Make: | Universal Vehicles | Working Temperature: | -20℃ To 70℃ |
| Resolution: | 800*R.G.B*480 | Screen Size: | 9inch (5" 7" 9" 10.1" Optional) |
| Power Supply: | Automobile Storage Battery (12-36V) ，12V Output | Color: | Black |
| Viewing Angle: | 160° | Format: | PAL,NTSC |
| Bracket: | Metal U Type Bracket, Detachable Sunshade | Product Name: | 9 Inch LCD Car Reverse Rear View Bus Monitor Truck Camera Systems |
| High Light: | 9'' Rear View Car Monitor,Reverse Rear View Car Monitor,9'' rear view mirror camera system |
||
Product Description
9 Inch LCD Car Reverse Rear View Bus Monitor Truck Camera Systems
SPECIFICATION
9"inch Stand Alone Monitor (Detachable sunshade )
Resolution: 800*R.G.B*480 ,Brightness:LED,300-350cd/m2
View angle:L/R 70°,UP:50°,down: 70° degree
2 way video input, 2 way audio input
Automatically switch to V2 when reversing
3 way video input,2 way audio input (optional)
3 ways Trigger function:V2>V1>V3 (optional)
Reference point and time control for reverse gear setting
System:PAL&NTSC auto-switching
with light sensor receiver,can adjust screen brightness automatically day & night
Power supply:DC 12V-36V input,12V output Operating
High-low voltage protection&short circuit protection
Working temperature:-20℃ to 70℃
Storage temperature:-30℃ to 80℃
Apearance color: black rubber painte
standard:Metal U type bracket
Butterfly bracket/fan bracket/Suction Cup holder/Headrest frame(optional)
RCA/ 4pin connector (Optional)
Dimension: 230*155*27mm(74)
Headrest frame Dimension :251*176*31mm

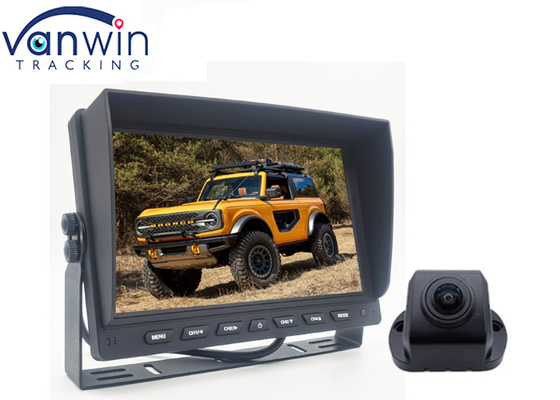

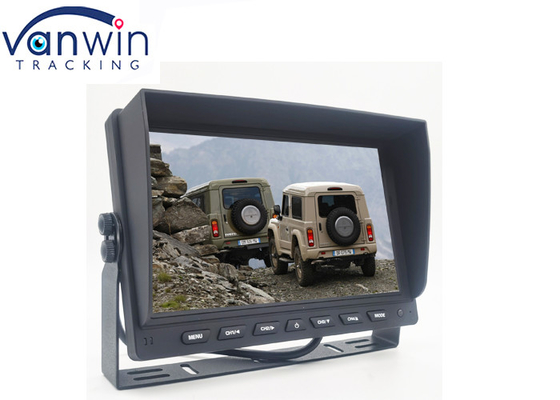

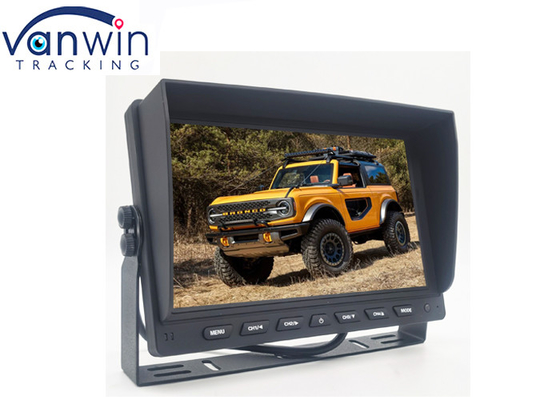

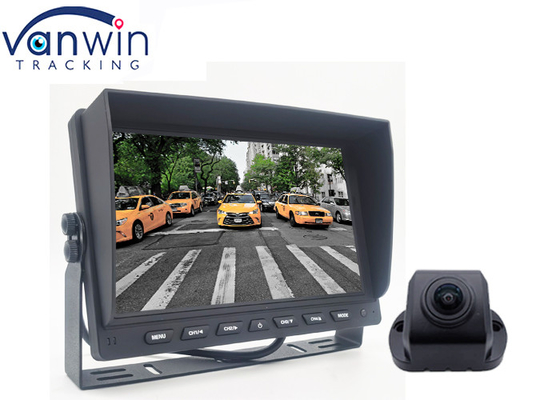

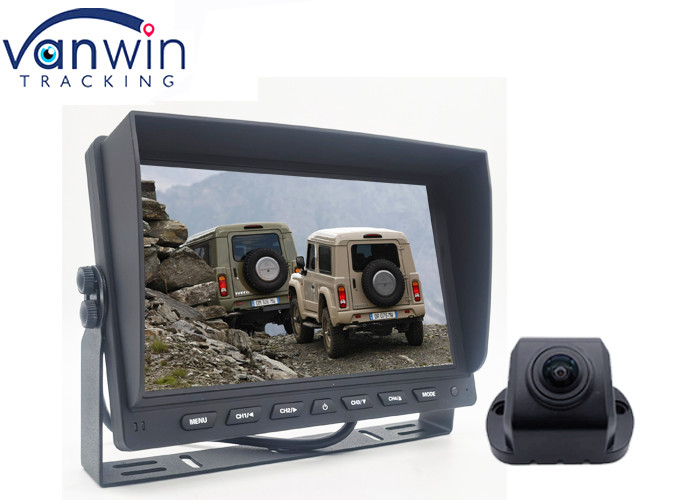

PRODUCT PICTURE
INSTALLATION
APPLICATION
