Black 7 Inch Car Monitor 4 Channel Video Input HD Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE ROHS |
| Model Number: | VW706Q |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | USD30-USD70 |
| Packaging Details: | Neutral package, carton box |
| Delivery Time: | 3-15days upon payment |
| Payment Terms: | L/C, T/T, Western Union,paypal |
| Supply Ability: | 1000PCS/month |
|
Detail Information |
|||
| Brightness: | LED,350-400cd/m2 | Signal Input: | 4 Ways Video Inputs， 1 Way Audio Inputfor V1 Full Image/2 Images/3images/4 Images Adjustable |
|---|---|---|---|
| Car Make: | Universal Vehicles | Working Temperature: | -20℃ To 70℃ |
| Resolution: | 800*R.G.B*480 | Screen Size: | 5inch (7" 9" 10.1" Optional) |
| Power Supply: | Automobile Storage Battery (12-36V) ，12V Output | Color: | Black |
| Viewing Angle: | 160° | Format: | PAL,NTSC |
| Bracket: | Metal U Type Bracket, Detachable Sunshade | ||
| High Light: | HD Screen 7 Inch Car Monitor,7 Inch Car Monitor 4 Channel |
||
Product Description
7 Inch Car Monitor 4 Channel Video Input Monito HD Screen Bus Truck Monitor
SPECIFICATION
7"inch Rear View Quad Monitor (Detachable sunshade )
Resolution: 800*R.G.B*480 ,Brightness:LED,350-400cd/m2
View angle:L/R 70°,UP:50°,down: 70° degree
4 ways Trigger function, 1 way audio inputfor V1
Full image/2 images/3images/4 images adjustable
4 ways Trig Trigger priority:V2>V1>V3>V4) :
Reference point and time control for reverse gear setting
with light sensor receiver,can adjust screen brightness automatically day & night
Power supply:DC 12V-36V input,12V output Operating
High-low voltage protection&short circuit protection
Working temperature:-20℃ to 70℃
Storage temperature:-30℃ to 80℃
Apearance color: black rubber painte
standard:Metal U type bracket
Butterfly bracket/fan bracket/Suction Cup holder/Headrest frame(optional)
RCA/ 4pin connector (Optional)
Dimension:180*121*26(75)mm
Headrest frame Dimension :202.5*143*27mm

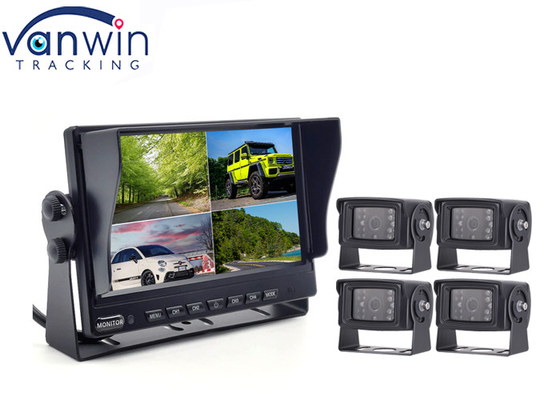

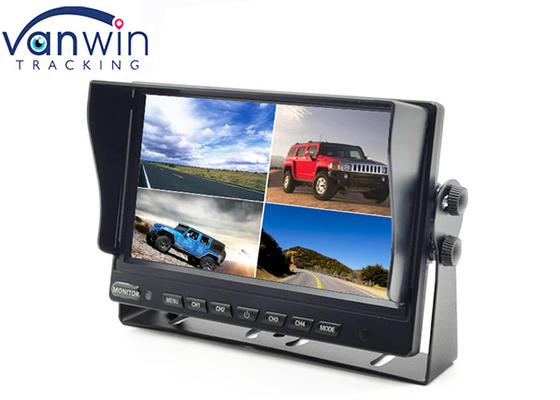

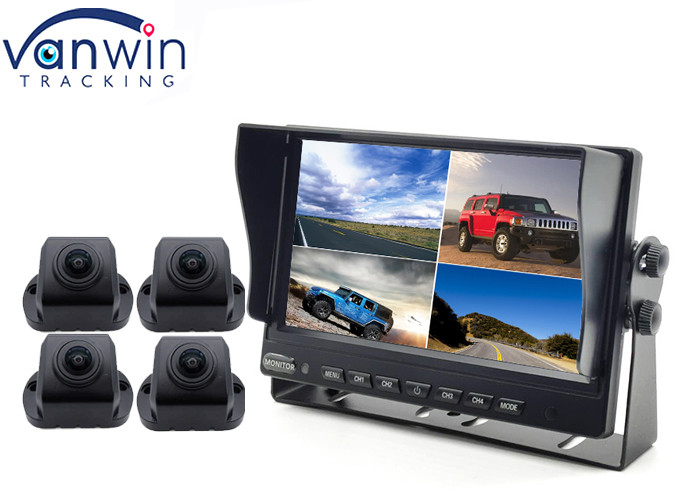

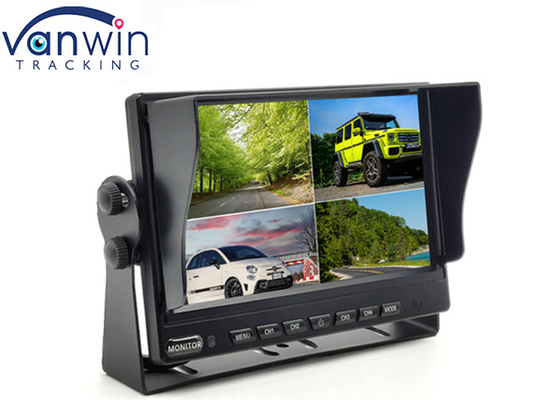

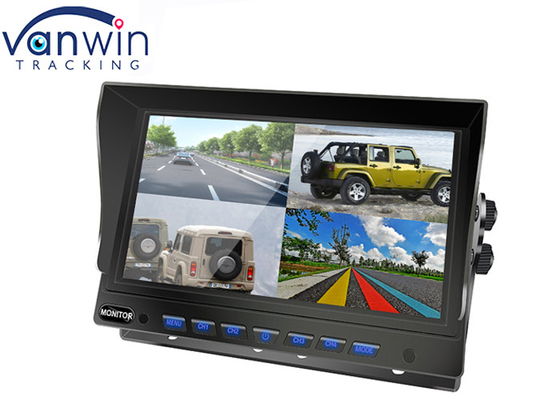

PRODUCT PICTURE
INSTALLATION
APPLICATION
