Frontview / Rearview HD 1080P AHD Camera For Trucks / Bus / Van
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW225 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 100pcs |
| Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
| Payment Terms: | Western Union, T/T, Paypal |
| Supply Ability: | 5,000pcs per month; |
|
Detail Information |
|||
| Type: | Rearview Camera For Bus/van/trucks | TV System: | PAL Or NTSC |
|---|---|---|---|
| Test Time: | Over 48 Hours | Chip Mode: | AHD Camera |
| Material: | Metal Housing | View Angel: | 120°-170° |
| Resolution: | 720P/1080P Optional | Application: | Car/Taxi/Truck/Bus |
| High Light: | Rearview 1080P AHD Camera,Frontview 1080P AHD Camera,1080P AHD Camera For Trucks |
||
Product Description
HD 1080P AHD frontview rearview camera for trucks bus van
Main Feature
1. Appearance: Metal material (black)
2. Lens: 170 ° (exclusive agent for imported lenses)
3. Lamp panel: without infrared light
4. Voltage: DC12V
5. System: P-system/N-system
6. Image: Ortho/Mirror
7. Wire: 4P aircraft carrier wire
8. Waterproof grade: IP69K
9. Image without correction, distortion, deformation, and black corners
Specification
|
Image Sensor |
1/3" progressive scan CMOS |
|
Horizontal Resolution |
1.3Mega pixel |
|
TV system |
PAL/NTSC |
|
Effective pixels |
1280(H)*960(V) |
|
Minimum Illumination |
0.01Lux@(F1.2,AGC ON),0 Lux with IR |
|
S/N |
≥44dB |
|
Auto Gain Control |
Support |
|
Back light compensation |
Support |
|
White Balance |
AUTO |
|
Digital Noise Reduction |
Adaptive digital noise reduction,2D/3D-DNR |
|
Electronic Shutter |
AUTO/1/50(1/60)-1(50,000Sec) |
|
Video Output |
Follow AHD standard |
|
Image Function |
Original/Reverse image |
|
Output Adapter |
4P aviation head cable |
|
Lens |
1.5mm,M12*P0.5 |
|
IP grade |
IP69K |
|
Operating Temperature/Humidity |
-40°C~+85°C/Humidity≤90%(No condensation) |
|
Power Supply |
DC12V±10% |
|
Power Consumption |
≤0.6W |
|
Dimension |
32*23.5*23.5(mm) |

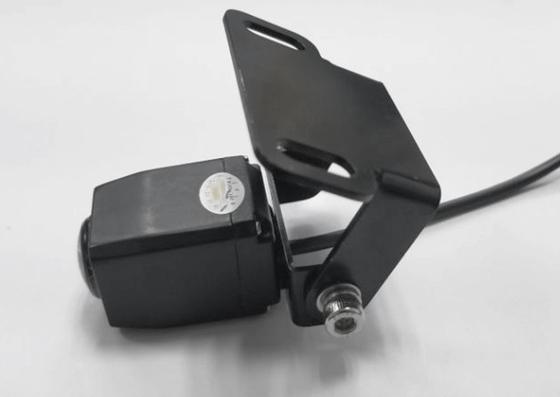

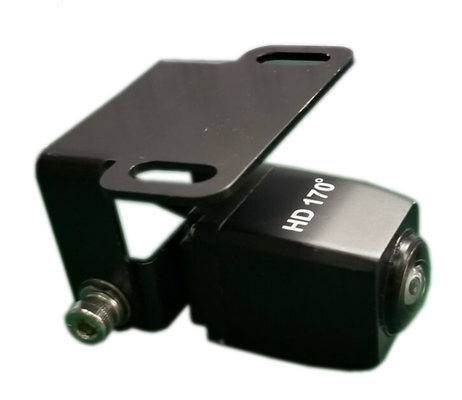

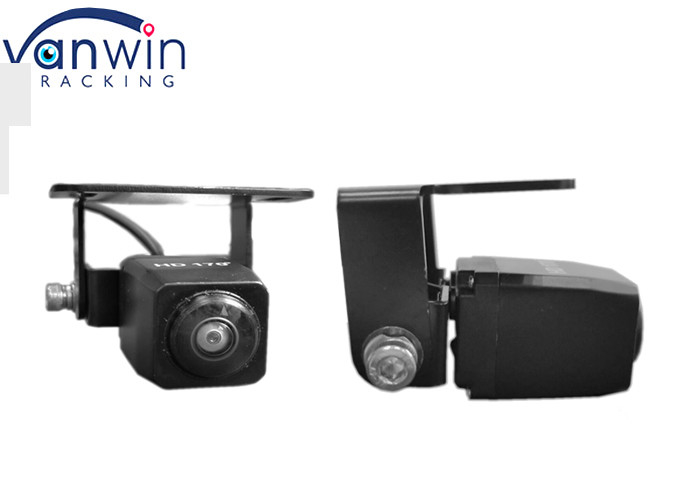

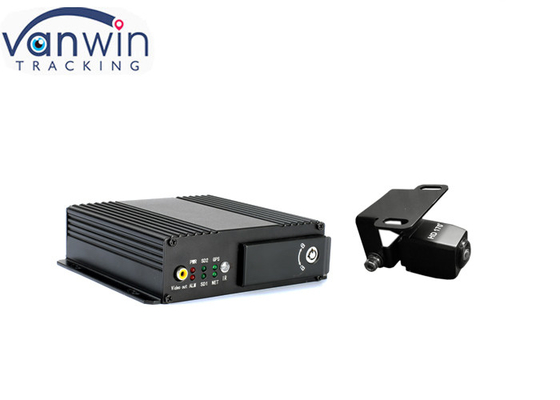

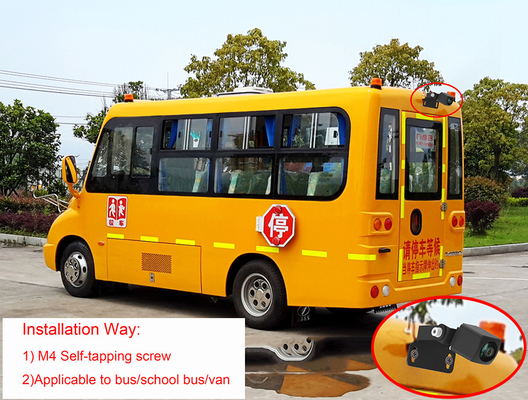

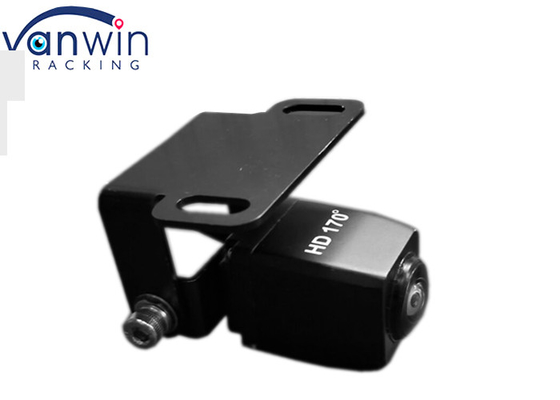

Product Pictures:
