H.264 Digital Video Recorder G-sensor Bus People Counter 1TB HDD Storage

H.264 Digital Video Recorder G-sensor Bus People Counter 1TB HDD Storage

    • H.264 Digital Video Recorder G-sensor Bus People Counter 1TB HDD Storage
    • H.264 Digital Video Recorder G-sensor Bus People Counter 1TB HDD Storage
    • H.264 Digital Video Recorder G-sensor Bus People Counter 1TB HDD Storage
  • H.264 Digital Video Recorder G-sensor Bus People Counter 1TB HDD Storage

    Product Details:

    Place of Origin: Shenzhen,China
    Brand Name: Vanwin Tracking
    Certification: CE/FCC/RoHS
    Model Number: VW609C

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Price: negotiated
    Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
    Delivery Time: 2-3 days for samples,15-30 days for large orders
    Payment Terms: T/T or western Union or Paypal
    Supply Ability: 5,000pcs per month ; People Counter Bus Camera with GPS Video Tracking System DVR
    Contact Now
    Detailed Product Description
    Power Supply: 8V-36V Storage Capacity: 1TB HDD
    Functions: People Counter ,3G ,GPS ,G-sensor,UPS,6CH Alarm Input Software Support: Client,Server,Playback Software
    Applicable: School Bus Or Bus Or Any Vehicle Original Factory: YES
    H.264 Format: YES Accuracy: 98% Above
    Product Name: People Counter Bus Camera With GPS Video Tracking System DVR

    People Counter H.264 Digital Video Recorder G-sensor 1TB HDD Storage

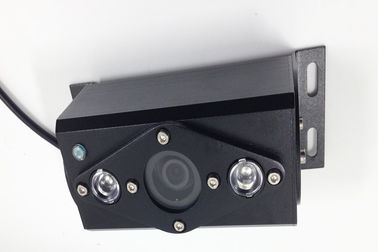

    Video counter system introduction

    The 2nd generation of Video counter system is based on advanced smart counting technology and attains high accuracy by detecting morphological characteristics of human(head and shoulder) and the human movement situation of getting On&Off the vehicle. 2nd generation is mainly characteristic of its high accuracy, despite crowded group, closthes, colors etc. Each counting camera can detect passenger On and Off, and can distinguish human and object. It becomes important system for public transportation enterprises and governments.





    Features and functions

    * 98% up accurate

    * High accuracy despite crowded group

    * Not affected by clothes color and passenger height etc

    * Long duration and low maintenance

    * Accurate counting for On and Off through Front and Back door

    * Automatically generate statistic report

    * Easy installation and uninstallation

    * More accurate surveillance and more effective management on ticket, conductor and driver.





    Specification



    Item

    Description

    OS

    Linux

    Graphics Operation Interface

    System parameters can be set through external display and remote controller

    Security Management

    2-level management for user password, administrator password, supporting encrypted transmission

    Video and Preview

    Video Input, Output

    4-channel video input, 1channel video output; 1.0Vp-p, 75Ω

    OSD

    Character superposition function, information superposition of time and date, device ID and GPS, etc.

    Video Compression Format

    Compression coding. Applying hisilicon hi-performance processor.

    Dual-Stream

    Supported

    Preview Function

    Preview of 1-channel, 4-image stitching, supporting full screen triggered by event and switching of stitched images

    Frame Rate

    PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel

    Resolution

    CIF, HD1 and D1 for selection, supporting 2 channels of D1+ 2 channels of CIF at the most

    Quality

    Grade 1 to grade 5 for selection (descending)

    Bit Rate

    CIF: 256Kbps ~ 1.5 Mbps, 8-level bit rates for selection

    HD1: 600Kbps ~ 2 Mbps, 8-level bit rates for selection

    D1: 800Kbps ~ 3Mbps, 8-level bit rates for selection

    Audio

    Audio Input, Output

    4-channel input, 1-channel output

    Compression Format

    G.726 coding

    Recording

    Storage Medium

    Supporting one 2.5” hard drive and one SD card, which supports up to 32G, supporting data redundancy storage technology;

    File Format/ System

    ASF/FAT32

    Video Strategies

    Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording

    Video Search

    Searching by time, type, storage device and other conditions

    Video Playback

    Supporting playback on local device, supporting synchronous playback of up to 4 channels and analysis on vehicle information in the files

    Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time

    Alarm

    Alarm Input/ Output

    6-channel on/off signal alarm input, 1-channel on/off signal alarm output

    Alarm Recording

    Prerecording function 15 seconds before alarm, duration of recording after alarm can be adjusted from 30s ~ 30min

    Storage Space Alarm

    Supporting settings for alarm of storage space

    Function Alarm

    GPS overspeed alarm, acceleration alarm, motion detection alarm

    Communication Ports

    RS232, RJ45 10M/100M self-adaptable network interface

    Wireless Transmission (Optional)

    Supporting Wi-Fi;

    GPS (Optional)

    Supporting external GPS

    PTZ Control

    Supporting PTZ control realized by local;

    Parameter Configuration

    Supporting parameter configuration functions for mobile DVR coding channel;

    G-Sensor

    Embedded

    System Upgrading

    Supporting SD card, hard drive upgrading and remote upgrading

    Power Supply and Power Consumption

    Power Supply

    1. ACC on/off

    2. Hard drive lock on/off

    3. Delayed shutdown

    4. Timed on/off

    Input Voltage

    DC:+8V ~ +36V

    Output Voltage

    +12V@4*0.5A; +5V@0.5A

    Power-off Protection

    With patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure

    Power Consumption

    <10W in normal operation; <0.5W in standby mode

    Operating Environment

    Temperature

    Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃

    Humidity

    10% to 95%

    Dimensions

    160(W) x62(H) x200(D) mm.

    Weight

    Net: 2200g, Gross: 3500g

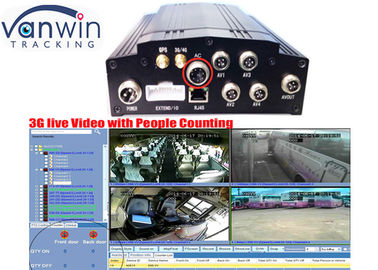

    CMS Platform



    H.264 Digital Video Recorder G-sensor Bus People Counter 1TB HDD Storage





    How to instal



    H.264 Digital Video Recorder G-sensor Bus People Counter 1TB HDD Storage
