Waterproof High Definition 1080P 2MP Front Side view camera for Van truck

Waterproof High Definition 1080P 2MP Front  Side view camera for Van truck
Waterproof High Definition 1080P 2MP Front  Side view camera for Van truck Waterproof High Definition 1080P 2MP Front  Side view camera for Van truck Waterproof High Definition 1080P 2MP Front  Side view camera for Van truck Waterproof High Definition 1080P 2MP Front  Side view camera for Van truck Waterproof High Definition 1080P 2MP Front  Side view camera for Van truck

Large Image :  Waterproof High Definition 1080P 2MP Front Side view camera for Van truck

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW-380
Payment & Shipping Terms:
Minimum Order Quantity: 5PCS
Price: negotiated
Packaging Details: Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 100pcs
Delivery Time: 2-3 days for samples, 5-10 days for large orders
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 5,000pcs per month, Waterproof High Definition 1080P 2MP Front Side view camera for trucks

Waterproof High Definition 1080P 2MP Front Side view camera for Van truck

Description
Type: Side View Camera For Van Truck IR LED: 10pcs
TV System: PAL Or NTSC Lens Angle: 120 Degree Wide Angle
Power: DC12 Or DV Sensor: Analog / AHD / IP
Material: Metal Housing Waterproof: IP67
Application: Side View Cameras For Bus / Truck / Van IR Cut: Yes
High Light:

mobile surveillance cameras

,

car reversing camera

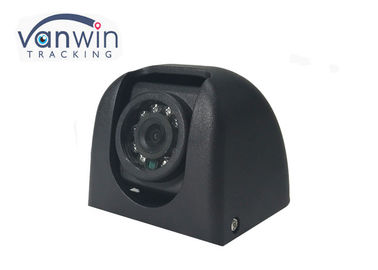

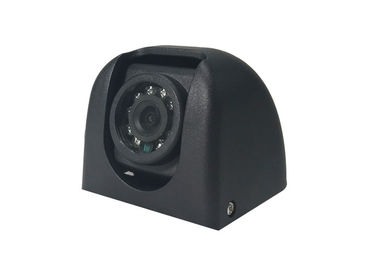

Waterproof High Definition 1080P 2MP Front Side view camera for Van truck


The bus / truck camera is used as side or front cameras for many vehicle, like van, truck, school bus, city bus with good night vision and special design. It can work with mobile dvr, dvr, monitor or other monitoring /reversing system.



Main Features:



  • with 10 IR LED, great night vision
  • Easy Installation Mechanical Design
  • very waterproof and popular
  • 1/3"AHD CMOS, 720P/960P/1080P, 0.01Lux/F1.2
  • Special mold

Specifications:



960P for example



Image Sensor 1/3" AHD 960P CMOS, 0.01Lux/F1.2
Horizontal Resolution 1.3 Mega pixel
TV system PAL/NTSC
Effective pixels 1280(H)*960(V)
Minimum Illumination 0.01Lux@(F1.2,AGC ON),0Lux with IR
S/N ≥44dB
Auto Gain Control Support
Back light compensation Support
White Balance AUTO
Digital Noise Reduction Adaptive digital noise reduction,2D/3D-DNR
Electronic Shutter AUTO/1/50(1/60)-1(50,000Sec)
Video Output AHD standard
Image Function Original/Reverse image
Output Adapter 4P aviation head cable
Lens 2.33mm(1.7mm Optional),M12*P0.5
IR LEDS Quantity 10PCS
IR distance 10~15 meters
IP grade IP67
Operating Temperature/Humidity -30°C~+70°C/Humidity≤90%(No condensation)
Power Supply DC12V±10%
Power Consumption ≤1.2W



Chips Available for Option



Sharp CCD 600TVL

Sharp CCD 700TVL

Sony CCD 600TVL

Sony CCD 700TVL



Connetor Available for Option



4Pin Aviation connector

DC+RCA connector

CCTV security BNC connector

Or other special connectors required



Accessories

Menual 1pcs, Screw:4pcs

Waterproof High Definition 1080P 2MP Front  Side view camera for Van truck 0

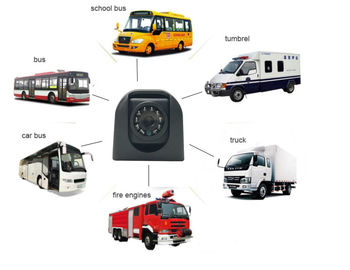

Applications



It can be installed for any vehicle especially truck, bus.

Waterproof High Definition 1080P 2MP Front  Side view camera for Van truck 1
