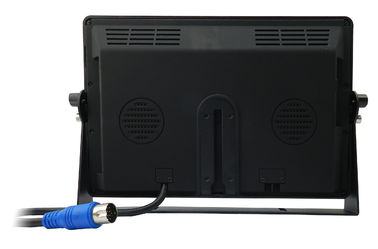

10.1inch Analog High Definition TFT Car Monitor System with 2 MP Resolution

10.1inch Analog High Definition TFT Car Monitor System with 2 MP Resolution

    • 10.1inch Analog High Definition TFT Car Monitor System with 2 MP Resolution
    • 10.1inch Analog High Definition TFT Car Monitor System with 2 MP Resolution
    • 10.1inch Analog High Definition TFT Car Monitor System with 2 MP Resolution
  • 10.1inch Analog High Definition TFT Car Monitor System with 2 MP Resolution

    Product Details:

    Place of Origin: Shenzhen,Guandong
    Brand Name: Vanwin Tracking
    Certification: CE/FCC/RoHS
    Model Number: VW-110HD

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: negotiated
    Packaging Details: Color Neutral Box ; Neutral Color box,white box and customize box for your option Packing details: 10pcs/box net weight: 10.42KGS gross weight:11.22KGS M: 62.4*46*24cm
    Delivery Time: 3-7 working days
    Payment Terms: T/T,Western Union,Paypal
    Supply Ability: 5000 pcs per month ;
    Contact Now
    Detailed Product Description
    Size: 10.1 Inch Resolution: 1024xRGBx600
    Screen Type: 16:9 View Angle: Hor. L(70) R(70) Ver. UP(50) DOWN(70)
    Image Reversion: UP/Down And Left/Right Video Input: 3 Channel HD Video Input
    Camera: Front/side/rear Optional Product Name: 10.1” Analog High Definition Car Monitor System With 2 MP Resolution



    10.1 inch Analog High Definition TFT Car Monitor System with 2 MP Resolution



    Functions



    1.The AHD monitor have 3 HD video input ,it means it can connect 3 AHD cameras for monitoring in the vehicle DC12-24V.

    2. Also have normal monitor for optional ,like 5inch ,7 inch ,9 inch ,10 inch with quad or non-quad .Also with 7inch and 9inch monitor DVR for choice .

    3. We would like to provide one full set for your testing with best price as we can .



    You will like us and our products so much .





    Advantages



    1. Professional  manufacture for MDVR system and different kinds of car monitors and cameras for optional.

    2. We also have our own SMT factory with all kinds of chips production

    3. All monitors and cameras and MDVR have been tested over 48 hours before sending .Quality and credit is our credit firstly .Welcome you to test and prove samples .

    4. We are very honest and kind to serve you well .

    5. Your money is safe here .





    Specification



    Screen Ratio 16 : 9
    Back Light Luminance LED, 300cd/M2
    Resolution 1024xRGBx600
    Compatible system NTSC & PAL (automatically)
    OSD control

    Brightness, Contrast, Saturation, Volume, Language

    (English, Simplify Chinese)

    View angle Hor. L(70) R(70) Ver. UP(50) DOWN(70)
    Image reversion UP/Down and Left/Right
    Power requirement DC 12-24V
    Power consumption 5W
    Storage temperature -30 to 80 degree
    Working temperature -20 to 70 degree
    Size 285*184*34MM
    Weight About 680g
    Key color Black
    AV Inputs 3 channel HD video input, single image display, support 720P@25/30, 720P@50/60, 1080P@25/30
    Number of Trigger and display 3 triggers
    Optional functions 4 PIN connector or RCA connector
    Other features OSD menu, Remoter control, Sunshade design around
    Accessories Remote controller, Power supply cable , User manual, Bracket, Hexagon wrench
    Package 10pcs/box net weight: 15.08KGS gross weight:15.88KGS M: 62.4*46*24cm




    10.1inch Analog High Definition TFT Car Monitor System with 2 MP Resolution

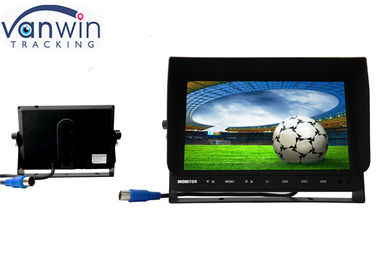

    The Effect Picture with 1080P 3MP cameras



    10.1inch Analog High Definition TFT Car Monitor System with 2 MP Resolution
