Vehicle Mini Ball Camera for Taxi Hidden Kamera for Mobile DVR System

Vehicle Mini Ball Camera for Taxi Hidden Kamera for Mobile DVR System

    • Vehicle Mini  Ball Camera for Taxi Hidden Kamera for Mobile DVR  System
    • Vehicle Mini  Ball Camera for Taxi Hidden Kamera for Mobile DVR  System
  • Vehicle Mini  Ball Camera for Taxi Hidden Kamera for Mobile DVR  System

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: Vanwin Tracking
    Certification: CE/FCC/RoHS
    Model Number: VW-398

    Payment & Shipping Terms:

    Minimum Order Quantity: 5pcs
    Price: negotiated
    Packaging Details: Neutral carton box package by default
    Delivery Time: 2-3 days for samples, 5-10 days for large orders
    Payment Terms: Western Union, T/T, Paypal
    Supply Ability: 5,000pcs per month
    Contact Now
    Detailed Product Description
    Type: Car Ball Camera Resolution: 1080P/960P/720P/800TVL/700TVL/600TVL/480TVL/420TVL
    TV System: PAL/NTSC Power: DC12 Or 24V
    Lens Angle: 120 Degree Wide Angle Warranty: 12 Months
    Material: Metal IR Lights: NO
    Size: Small

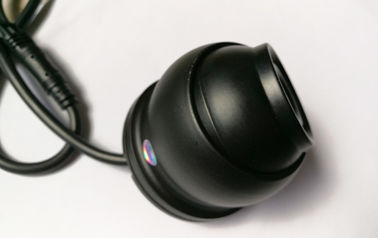

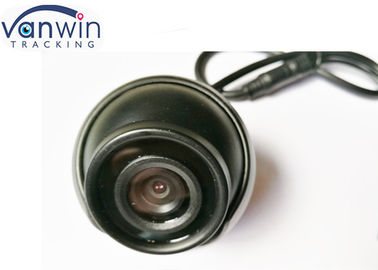

    Vehicle Mini Ball Camera for Taxi Hidden Kamera for Mobile DVR System



    It is very popluar model due its high definition resolution and also small size .Used for vehicle security monitoring system .There are many chips from 420TVL to 800TVL and AHD 1.0 MP/1.3MP/2.0MP for optional.
    The below is 1.3 Mega pixels parameter



    Sensor 1/3 AR0130 CMOS
    TV System PAL NTSC
    Effective Resolution PAL:1280(H)×960(V) NTSC:1280(H)×960(V)
    Minimum Illumination 0.0001 LUX / F1.2
    Horizontal Resolution AHD:1.3 Mega Pixels 960P,Analog:1200 TVL
    Scanning Frequency 50Hz 60Hz
    Gamma Value 0.45
    Electronic Shutter 1/50~1/100000s 1/60~1/100000s
    SNR >46dB
    Video Output 1.0V p-p
    Operating Temperature ‘-20℃ to 50 ℃
    Operating Humidity Relative humidity less than 95 %
    Power DC12V (±10%)
