9" Car Monitor DVR camera system with 32GB SD card recording 4 Channels Video Input

9" Car Monitor DVR camera system with 32GB SD card recording 4 Channels Video Input

    • 9" Car Monitor DVR camera system with 32GB SD card recording 4 Channels Video Input
    • 9" Car Monitor DVR camera system with 32GB SD card recording 4 Channels Video Input
    • 9" Car Monitor DVR camera system with 32GB SD card recording 4 Channels Video Input
    • 9" Car Monitor DVR camera system with 32GB SD card recording 4 Channels Video Input
    • 9" Car Monitor DVR camera system with 32GB SD card recording 4 Channels Video Input
  • 9" Car Monitor DVR camera system with 32GB SD card recording 4 Channels Video Input

    Product Details:

    Place of Origin: Shenzhen,Guandong
    Brand Name: Vanwin Tracking
    Certification: CE/FCC/RoHS
    Model Number: VW-912MQDV

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: negotiated
    Packaging Details: Color Neutral Box ; Neutral Color box,white box and customize box for your option Packing details: 10pcs/box net weight: 10.42KGS gross weight:11.22KGS M: 62.4*46*24cm
    Delivery Time: 3-7 working days
    Payment Terms: T/T,Western Union,Paypal
    Supply Ability: 5000 pcs per month ; 9" Car Monitor DVR camera system with 32GB SD card recording 4 Channels Video Input
    Contact Now
    Detailed Product Description
    Size: 9 Inch Resolution: 1024xRGBx600
    Screen Type: 16:9 View Angle: Hor. L(70) R(70) Ver. UP(50) DOWN(70)
    Image Reversion: UP/Down And Left/Right Video Input: 4 Channel HD Video Input
    Camera: 1/2/3/4 Image Display Audio Input: 1 Channel Audio Input
    DVR Recording: Max 32G SD Card Application: Truck, Van, Wargon, Agricultural Vehicle Or Universal Usage

    9" Car Monitor DVR camera system with 32GB SD card recording 4 Channels Video Input



    Main Features

    • 9" digital LCD Panel, 16:9 display
    • Resolution: 800*R.G.B*480
    • System: PAL&NTSC(Optional)
    • Trigger: 4 Triggers
    • Connector: 4 PIN or RCA optional
    • Built-in Speaker, remote control
    • Power supply: 12V-24V
    • One built-in ploymer battery
    • Image compression: MOTION JPEG
    • Video Compression: AD PCM
    • Recording Speed: 30 FPS
    • System Language: English, Chinese or customized language



    LCD 9″ digital screen
    Screen ratio 16:9
    Resolution 800*R.G.B*480
    Backlight lumilance LED, 300 cd/m2
    Contrast 1000:1
    View angle UP—50°,DOWN—70°,L—70°,R—70°
    System PSL/NTSC(Automatically)
    OSD Control Brightness, contrast, color, tone, volume, modes, DVR, flip, language(English, German, French, Spanish, Portuguese, Italian, Dutch, simplified Chinese)
    Shockproof level 4G
    DVR image quality DVR recording 4 channels video signal, VGA resolution:640*480, Recording speed: 30FPS, Storage format: AVI , Occupy space 66M per minute.
    AV recording Support 1 way AV recording
    Compression term Vedio compression:MOTION JPEG
    Power line 4 PIN power line/ RCA power line(optional)
    Memory interface 1 SD interface
    Video storage SD high-speed card, maximum support 32Gt
    Power requirement 12-24V DC
    Power consumption <8W
    Maximum current <700mA
    Working temperature -10℃ to 60℃
    Storing temperature -20℃ to 70℃

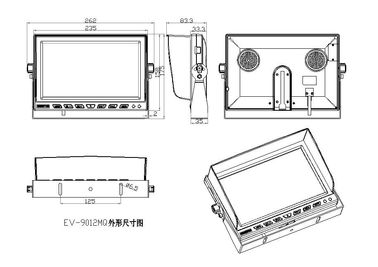

    Size 235mm*170mm*76mm
    Weight Around 700 g
      4 way video input,1way audio input,DVR records whatever the screen
    AV Input displays.
    Trigger control 4 way trigger control

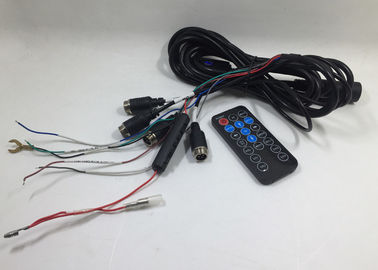

    Accessaries Remote control,power line,sunshade and bracket,user manual





    9" Car Monitor DVR camera system with 32GB SD card recording 4 Channels Video Input

    9" Car Monitor DVR camera system with 32GB SD card recording 4 Channels Video Input
