720p G-Sensor GPS GSM 3G WIFI 4G HDD Mobile DVR 4ch MDVR With Camera Monitor CMS

720p G-Sensor GPS GSM 3G WIFI 4G HDD Mobile DVR 4ch MDVR With Camera Monitor CMS

    • 720p G-Sensor GPS GSM 3G WIFI 4G HDD Mobile DVR 4ch MDVR With Camera Monitor CMS
    • 720p G-Sensor GPS GSM 3G WIFI 4G HDD Mobile DVR 4ch MDVR With Camera Monitor CMS
    • 720p G-Sensor GPS GSM 3G WIFI 4G HDD Mobile DVR 4ch MDVR With Camera Monitor CMS
    • 720p G-Sensor GPS GSM 3G WIFI 4G HDD Mobile DVR 4ch MDVR With Camera Monitor CMS
    • 720p G-Sensor GPS GSM 3G WIFI 4G HDD Mobile DVR 4ch MDVR With Camera Monitor CMS
  • 720p G-Sensor GPS GSM 3G WIFI 4G HDD Mobile DVR 4ch MDVR With Camera Monitor CMS

    Product Details:

    Place of Origin: Shenzhen,China
    Brand Name: Vanwin Tracking
    Certification: CE/FCC/RoHS
    Model Number: VW619HD-GSW

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Price: negotiated
    Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
    Delivery Time: 2-3 days for samples,15-30 days for large orders
    Payment Terms: T/T or western Union or Paypal
    Supply Ability: 5,000pcs per month; HDD / SSD 720p G-sensor GPS GSM 3G WIFI 4G 4ch mobile dvr / MDVR with camera monitor CMS
    Contact Now
    Detailed Product Description
    Power Name: HDD Mobile DVR Storage Capacity: HDD / SSD, Can Support 2TB HDD
    Functions: 4G 3G, GPS Tracking, Wi-Fi, G-sensor, 6CH Alarm Input, Lan Port Software Support: Client, Server, Playback Software
    Accessories: HDD, Cameras, Extension Cables, Monitor, Sound Pik-up Weight: Net: 2200g, Gross: 3500g
    Network: WCDMA, CDMA2000, TDD-LTE, FDD-LTE IR Remote Cotrol: Support
    Tackback Device: Support Video Compression: H.264

    HDD / SSD 720p G-sensor GPS GSM 3G WIFI 4G 4ch mobile dvr / MDVR with camera monitor CMS

    Why installing the MDVR system?

    Protect drivers - Cabbies are in a vulnerable position. They put their trust in their passengers. 4CH MDVR System can help to deter unruly passengers from acting out of line.

    Deter violence - Whether the result of alcohol, or many other factors, violent confrontations can and do occur between cab passengers and drivers. The presence of 4CH MDVR System can make riders think twice before acting afoul.

    Prevent robberies - When 4CH MDVR System are onboard, anyone attempting to rob a cabbie will have to do so knowing their every move is being videotaped. That knowledge alone should be enough to stop many potential robbers in their tracks.

    Monitor driver behavior - Passengers aren't the only ones with the potential to act out of line in a taxi cab. Drivers can also be guilty on occasion. 4CH MDVR System help to ensure that cab drivers carry out their duties in a professional manner.

    Provide visual evidence - In cases where violent confrontations or robberies do take place, 4CH MDVR System can provide valuable video evidence for criminal investigations.



    Main Features

    1. 4CH, Support 4 cameras
    2. H.264 compression format
    3. 64GB SD Card
    4. 2.5“ SATA 2TB Hard disk
    5. GPS tracking
    6. 3G remote control
    7. Built-in WIFI for option
    8. 6 alarm input, 1 alarm output
    9. 2 way intercom
    10. Remote oil&power cut-off
    11. Mirror recording in SD card
    12. Patent UPS continuously working to protect data upon sudden power-off
    13. Customized GPS data format sending(optional)
    14. Built-in Heater(optional)
    15. Lockable, metal HDD handle, protect HDD efficiently
    16. Watermark and Time/Date stamp in exported images

    Specification



    Item

    Description

    OS

    Linux

    Graphics Operation Interface

    System parameters can be set through external display and remote controller

    Security Management

    2-level management for user password, administrator password, supporting encrypted transmission

    Video and Preview

    Video Input, Output

    4-channel video input, 1channel video output; 1.0Vp-p, 75Ω

    OSD

    Character superposition function, information superposition of time and date, device ID and GPS, etc.

    Video Compression Format

    Compression coding. Applying hisilicon hi-performance processor.

    Dual-Stream

    Supported

    Preview Function

    Preview of 1-channel, 4-image stitching, supporting full screen triggered by event and switching of stitched images

    Frame Rate

    PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel

    Resolution

    CIF, HD1 and D1 for selection, supporting 2 channels of D1+ 2 channels of CIF at the most

    Quality

    Grade 1 to grade 5 for selection (descending)

    Bit Rate

    CIF: 256Kbps ~ 1.5 Mbps, 8-level bit rates for selection

    HD1: 600Kbps ~ 2 Mbps, 8-level bit rates for selection

    D1: 800Kbps ~ 3Mbps, 8-level bit rates for selection

    Audio

    Audio Input, Output

    4-channel input, 1-channel output

    Compression Format

    G.726 coding

    Recording

    Storage Medium

    Supporting one 2.5” hard drive and one SD card, which supports up to 32G, supporting data redundancy storage technology;

    File Format/ System

    ASF/FAT32

    Video Strategies

    Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording

    Video Search

    Searching by time, type, storage device and other conditions

    Video Playback

    Supporting playback on local device, supporting synchronous playback of up to 4 channels and analysis on vehicle information in the files

    Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time

    Alarm

    Alarm Input/ Output

    6-channel on/off signal alarm input, 1-channel on/off signal alarm output

    Alarm Recording

    Prerecording function 15 seconds before alarm, duration of recording after alarm can be adjusted from 30s ~ 30min

    Storage Space Alarm

    Supporting settings for alarm of storage space

    Function Alarm

    GPS overspeed alarm, acceleration alarm, motion detection alarm

    Communication Ports

    RS232, RJ45 10M/100M self-adaptable network interface

    Wireless Transmission (Optional)

    Supporting Wi-Fi;

    GPS (Optional)

    Supporting external GPS

    PTZ Control

    Supporting PTZ control realized by local;

    Parameter Configuration

    Supporting parameter configuration functions for mobile DVR coding channel;

    G-Sensor

    Embedded

    System Upgrading

    Supporting SD card, hard drive upgrading and remote upgrading

    Power Supply and Power Consumption

    Power Supply

    1. ACC on/off

    2. Hard drive lock on/off

    3. Delayed shutdown

    4. Timed on/off

    Input Voltage

    DC:+8V ~ +36V

    Output Voltage

    +12V@4*0.5A; +5V@0.5A

    Power-off Protection

    With patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure

    Power Consumption

    <10W in normal operation; <0.5W in standby mode

    Operating Environment

    Temperature

    Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃

    Humidity

    10% to 95%

    Dimensions

    160(W) x62(H) x200(D) mm.

    Weight

    Net: 2200g, Gross: 3500g



    The complete kit:


    1. One MDVR with 3G GPS WIFI G-sensor for Option
    2. 1~4 cameras with extension cables
    3. One monitor for the driver
    4. HDD 500GB/1TB/2TB
    5. Micphone, Talkback device, Panic button

    1. Standard configuration

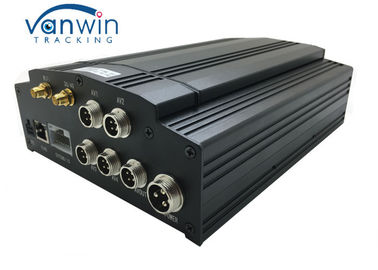

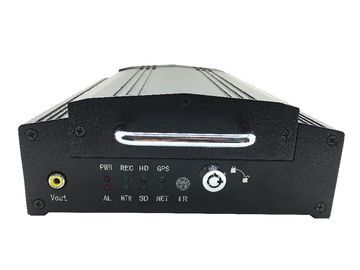

    MDVR host 1pc
    Power cable 1pc
    I/O Cable 1pc
    Standard cables 5pcs
    Remote control 1pc
    keys 1pc
    3G/4G Antenna 1pc
    WIFI Antenna 1pc
    GPS Antenna 1pc
    User manual 1pc

    2. Optional configuration

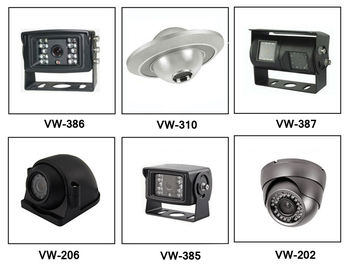

    Cameras
    LCD monitor

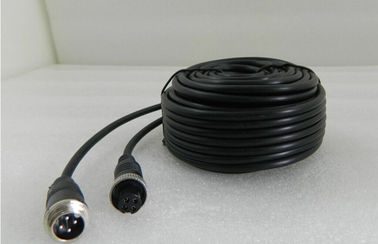

    Extension cables
    Storage card
    Talkback device/Micphone
    Oil sensor/People Counter and ect.

    720p G-Sensor GPS GSM 3G WIFI 4G HDD Mobile DVR 4ch MDVR With Camera Monitor CMS
    720p G-Sensor GPS GSM 3G WIFI 4G HDD Mobile DVR 4ch MDVR With Camera Monitor CMS

    It can support remote online monitoring by computer and Mobile APP.



    720p G-Sensor GPS GSM 3G WIFI 4G HDD Mobile DVR 4ch MDVR With Camera Monitor CMS

    720p G-Sensor GPS GSM 3G WIFI 4G HDD Mobile DVR 4ch MDVR With Camera Monitor CMS





    If you're interested in the system above, please be free to get the high-quality solution and system with us.
