|Place of Origin:||Shenzhen,China|
|Brand Name:||Vanwin Tracking|
|Minimum Order Quantity:||1pc|
|Packaging Details:||Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .|
|Delivery Time:||2-3 days for samples,15-30 days for large orders|
|Payment Terms:||T/T or western Union or Paypal|
|Supply Ability:||5,000pcs per month; 3G GPRS People counting sensor bus passenger counter for public bus|
|Power Supply:||8V-36V||Sensor Type:||Video Counting, 98% Accuracy|
|Level:||World Class Anti-vibration Technology||Operation Interface:||OSD With Mouse And Remote Control|
|Scanning Style:||Video Counting||Data Transmission:||3g, GPS, Wifi ,gprs, Rs232/485, HDD Storage|
|Camera:||Binocular Cameras&Monitoring Cameras||USB Port:||Standard 2.0|
|City Bus:||Support 1/2/3/4 Doors City Buses||Accuracy:||Up 98%|
3G GPRS People counting sensor bus passenger counter for public bus
1. Vanwin Counting Bus People Counter with binocular lens is developed based on advanced Video Counting&image analysis technology. It judges passenger’s number by capturing human characteristics such as head, shoulders, body and body’s get-on& get-off Movement characteristics and obtains accurate counting results by high-speed DSP intelligent algorithm. After many years’ improvement and development, the core calculation has been successfully used in different application scenarios and vehicles. Normally the accuracy of statistics is over 98% and with crowded circumstances, the accuracy is over 98%. It can automatically filter backpack, luggage etc.
2. For every cycle time from door-open to door-close, the passenger number of get-on or get-off with time&date and gps positioning information will be stored into SD card or harddisk. At the same time these data could be sent to 3rd-party application equipment (need customization) through the serial port RS232 level.
3. For 3G / 4G / WiFi counter, all the counting data(including passenger nubmer, time, date, gps positioing infomation) will be sent to the server or 3rd-party application server (need customization) through the 3G / 4G / WiFi wireless network
4. The People Countng System is designed with GPS Positioning to link passenger data to vehicle location. This provides a wealth of data for agencies to analyze about the utilization of the system based on location, direction of travel, and time.
5. Alternatively, Vehicle CCTV cameras can be used together with people counters to record the video of people getting on and off at each stop or station, so operators can verify that the system is counting properly simply by watching the video back - this shows people getting on and off the vehicle together with the increasing counts.
* 98% up accurate
* High accuracy despite crowded group
* Not affected by clothes color and passenger height etc
* Long duration and low maintenance
* Accurate counting for On and Off through Front and Back door
* Automatically generate statistic report
* Easy installation and uninstallation
* More accurate surveillance and more effective management on ticket, conductor and driver.
* Supporting 4ch/8ch video recording, SD card& HDD storage.
* Supporting 3g, gps, wifi, alarm, G-sensor functions.
Operation Interface: OSD with mouse and remote control
Video Counting input: Max 2 channels
Video Counting output: 1 channel
Accuracy: 98% up
operating voltage: DC 8—36V
Operating power: ≤4W
Operating temperature: -20°C -- +80°C
Operating humidity: 10% -- 95%
USB port: Standard 2.0
Counting input port: Aviation
|Graphics Operation Interface||System parameters can be set through external display and remote controller|
|Security Management||2-level management for user password, administrator password, supporting encrypted transmission|
|Video and Preview||Video Input, Output||4-channel video input, 1channel video output; 1.0Vp-p, 75Ω|
|OSD||Character superposition function, information superposition of time and date, device ID and GPS, etc.|
|Video Compression Format||Compression coding. Applying Hisilicon hi-performance processor.|
|Preview Function||Preview of 1-channle, 4-image stitching, supporting full screen triggered by event and switching of stitched images|
|Frame Rate||PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel|
|Resolution||AHD 720P,D1, HD1 ,CIF 4channel|
|Quality||Grade 1 to grade 8 for selection (1 is the best)|
CIF: 300Kbps ~ 1.2 Mbps, 8-level bit rates for selection
HD1: 500Kbps ~ 1.5 Mbps, 8-level bit rates for selection
D1: 600Kbps ~ 2Mbps, 8-level bit rates for selection
720P: 800Kbps ~ 4Mbps, 8-level bit rates for selection
|Audio||Audio Input, Output||4-channel input, 1-channel output|
|Compression Format||G.726 coding|
|Recording||Storage Medium||Supporting one 2.5” hard drive and one SD card, which supports up to 128G, supporting data redundancy storage technology;|
|File Format/ System||Special file system|
|Video Strategies||Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording|
|Video Search||Searching by time, type, storage device and other conditions|
|Video Playback||Supporting playback on local device, supporting synchronous playback of up to 4 channels and analysis on vehicle information in the files|
|Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time|
|Alarm||Alarm Input/ Output||8-channel on/off signal alarm input, 2-channel on/off signal alarm output|
|Alarm Recording||duration of recording after alarm can be adjusted from 10s ~ 999S|
|Storage Space Alarm||Supporting settings for alarm of storage space|
|Function Alarm||GPS overspeed alarm, acceleration alarm, motion detection alarm|
|counter||Passenger Video counter||Two doors Synchronous statistics. the recognizing accuracy was more than 95%|
|Communication Ports||485,RS232, RJ45 10M/100M self-adaptable network interface|
|Wireless Transmission (Optional)||Supporting Wi-Fi;|
|GPS (Optional)||Supporting external GPS|
|PTZ Control||Supporting PTZ control realized by local;|
|Parameter Configuration||Supporting parameter configuration functions for mobile DVR coding channel;|
|System Upgrading||Supporting SD card, hard drive upgrading and remote upgrading|
|Power Supply and Power Consumption||Power Supply||
1. ACC on/off
2. Hard drive lock on/off
3. Delayed shutdown
4. Timed on/off
|Input Voltage||DC:+9V ~ +36V|
|Power-off Protection||With patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure|
|Power Consumption||<10W in normal operation; <0.5W in standby mode|
|Operating Environment||Temperature||Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃|
|Humidity||10% to 95%|
|Dimensions||160(W) x62(H) x200(D) mm.|
|Weight||Net: 2020g, Gross: 3500g|
1. Main Unit(below)
Counter Processor(brain), Mounted at the bottom of seat or ceiling of bus, process and calculate the data, send to HDD storage or 3g/4g
2. Binocular Camera
Mounted on the ceiling of the doors, counts passengers get in or out of the bus.
3. Door Sensor
Door open/close sensor, is used for sensing the door open or close status.
4. 4 Monitoring Cameras
5. One monitor

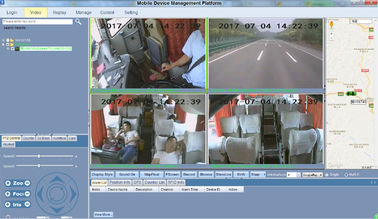

Notice: If you buy our 3G counter(with mdvr together), you will use our platform ;if you buy our GPRS counter ,also you can use our management platform tool ,also you can use your own platform with our protocol by RS232/485 interface.
Please contact us for specific manual in details
