Focus on Vehicle Security Solution.
Quality is Our Culture! Trust us for Professional!
|Place of Origin:||Shenzhen,China|
|Brand Name:||Vanwin Tracking|
|Minimum Order Quantity:||1pc|
|Packaging Details:||Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .|
|Delivery Time:||2-3 days for samples,15-30 days for large orders|
|Payment Terms:||T/T or western Union or Paypal|
|Supply Ability:||5,000pcs per month; 98% High Accurate Public Bus People Counter With GPS GPRS 3G 4G WIFI Mobile Vehicle DVR|
|Power Supply:||8V-36V||Sensor Type:||Video Counting, 98% Accuracy|
|Level:||World Class Anti-vibration Technology||Operation Interface:||OSD With Mouse And Remote Control|
|Scanning Style:||Video Counting||Data Transmission:||3g, GPS, Wifi ,gprs, Rs232/485, HDD Storage|
|Camera:||Binocular Cameras&Monitoring Cameras||Network:||3G/4G/WIFI|
|USB Port:||Standard 2.0||City Bus:||Support 1/2/3/4 City Buses|
|The Third-party Platform:||Supported||Protocol:||Yes|
bus passenger counter,
cctv mobile dvr

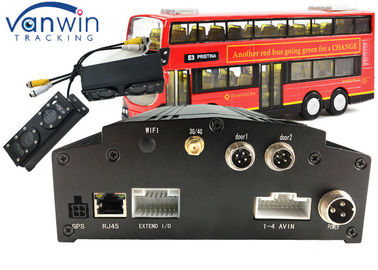

98% High Accurate Public Bus People Counter With GPS GPRS 3G 4G WIFI Mobile Vehicle DVR
4CH 720P 3G/4G Realtime Video Tracking Mobile DVR with Bus People Counter all in one system.
Vanwin Vieo- Counting Bus People Counter(VPC) with binocular lens is developed based on advanced Video Counting&image analysis technoloy.
It judges passenger's number by capturing human characteristics such as head, shoulders, body and body's get-on& get-off Movement characteristics and obtains accurate counting results by high-speed DSP intelligent algorithm.
After many year's improment and development, the core calculation has been successfully used in different application scenarios and vehicles. Normally the accuracy of statistics is over 98% and with crowded circumstances, the accuracy is over 95%.
It can automatically filter backpack, luggage etc.

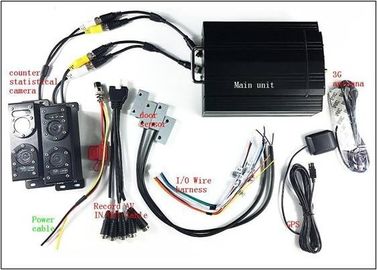

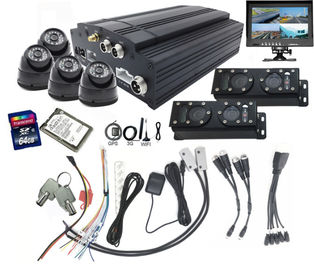

1. Main Unit(below)
Counter Processor(brain), Mounted at the bottom of seat or ceiling of bus, process and calculate the data, send to HDD storage or 3g/4g
2. Binocular Camera
Mounted on the ceiling of the doors, counts passengers get in or out of the bus.
3. Door Sensor
Door open/close sensor, is used for sensing the door open or close status.
4. 4 Monitoring Cameras
5. One monitor for Option
Operation Interface: OSD with mouse and remote control
Video Counting input: Max 2 channels
Video Counting output: 1 channel
Accuracy: 98% up
operating voltage: DC 8—36V
Operating power: ≤4W
Operating temperature: -20°C -- +80°C
Operating humidity: 10% -- 95%
USB port: Standard 2.0
Counting input port: Aviation
|Graphics Operation Interface||System parameters can be set through external display and remote controller|
|Security Management||2-level management for user password, administrator password, supporting encrypted transmission|
|Video and Preview||Video Input, Output||4-channel video input, 1channel video output; 1.0Vp-p, 75Ω|
|OSD||Character superposition function, information superposition of time and date, device ID and GPS, etc.|
|Video Compression Format||Compression coding. Applying Hisilicon hi-performance processor.|
|Preview Function||Preview of 1-channle, 4-image stitching, supporting full screen triggered by event and switching of stitched images|
|Frame Rate||PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel|
|Resolution||AHD 720P,D1, HD1 ,CIF 4channel|
|Quality||Grade 1 to grade 8 for selection (1 is the best)|
CIF: 300Kbps ~ 1.2 Mbps, 8-level bit rates for selection
HD1: 500Kbps ~ 1.5 Mbps, 8-level bit rates for selection
D1: 600Kbps ~ 2Mbps, 8-level bit rates for selection
720P: 800Kbps ~ 4Mbps, 8-level bit rates for selection
|Audio||Audio Input, Output||4-channel input, 1-channel output|
|Compression Format||G.726 coding|
|Recording||Storage Medium||Supporting one 2.5” hard drive and one SD card, which supports up to 128G, supporting data redundancy storage technology;|
|File Format/ System||Special file system|
|Video Strategies||Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording|
|Video Search||Searching by time, type, storage device and other conditions|
|Video Playback||Supporting playback on local device, supporting synchronous playback of up to 4 channels and analysis on vehicle information in the files|
|Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time|
|Alarm||Alarm Input/ Output||8-channel on/off signal alarm input, 2-channel on/off signal alarm output|
|Alarm Recording||duration of recording after alarm can be adjusted from 10s ~ 999S|
|Storage Space Alarm||Supporting settings for alarm of storage space|
|Function Alarm||GPS overspeed alarm, acceleration alarm, motion detection alarm|
|counter||Passenger Video counter||Two doors Synchronous statistics. the recognizing accuracy was more than 95%|
|Communication Ports||485,RS232, RJ45 10M/100M self-adaptable network interface|
|Wireless Transmission (Optional)||Supporting Wi-Fi;|
|GPS (Optional)||Supporting external GPS|
|PTZ Control||Supporting PTZ control realized by local;|
|Parameter Configuration||Supporting parameter configuration functions for mobile DVR coding channel;|
|System Upgrading||Supporting SD card, hard drive upgrading and remote upgrading|
|Power Supply and Power Consumption||Power Supply||
1. ACC on/off
2. Hard drive lock on/off
3. Delayed shutdown
4. Timed on/off
|Input Voltage||DC:+9V ~ +36V|
|Power-off Protection||With patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure|
|Power Consumption||<10W in normal operation; <0.5W in standby mode|
|Operating Environment||Temperature||Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃|
|Humidity||10% to 95%|
|Dimensions||160(W) x62(H) x200(D) mm.|
|Weight||Net: 2020g, Gross: 3500g|
Notice: If you buy our 3G counter(with mdvr together), you will use our platform ;if you buy our GPRS counter ,also you can use our management platform tool ,also you can use your own platform with our protocol by RS232/485 interface.
1)What purpose does the sensor serve?
The sensor is designed to count the number of bus passengers getting on or off.
All passengers are counted regardless of their payment method (cash, pass, welfare ticket, or discount ticket).
The sensor can be used to get information on the usage status and crowding of bus passengers.
Take advantage of the sensor's abilities to create an optimum time table by knowing the number of passengers getting on or off at a particular stop, at what times, on which lines, and in which zones.
The sensor (camera) is installed in the bus ceiling near an entrance and exit.
It is compact and easy to install.
A single sensor can count people getting both on and off.
Please contact us for specific manual in details
