3G 4G GPRS Bus Video Passenger Counting System with 4CH HDD MDVR for 29 seater bus
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW619C-3G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 5,000pcs per month; 3G 4G GPRS Bus Video Passenger Counting System with 4CH HDD MDVR for 29 seater bus |
|
Detail Information |
|||
| Power Supply: | 8V-36V | Counting Input Port: | Aviation |
|---|---|---|---|
| Applicable: | School Bus Or Bus Or Any Vehicle | Sensor Type: | Video Counting, 98% Accuracy |
| Level: | World Class Anti-vibration Technology | Operation Interface: | OSD With Mouse And Remote Control |
| Scanning Style: | Video Counting | Data Transmission: | 3G/GPS/wifir/s232/485/HDD Storage |
| Operating Voltage: | DC 8—36V | USB: | Standard 2.0 |
| 3G/4G: | Support | WIFI Module: | Option |
| High Light: | cctv mobile dvr,mobile dvr for buses |
||
Product Description
3G 4G GPRS Bus Video Passenger Counting System with 4CH HDD MDVR for 29 seater bus
The 2nd generation of HD Video counter system is based on advanced smart counting technology and attains high accuracy by detecting morphological characteristics of human(head and shoulder) and the human movement situation of getting On&Off the vehicle.
2nd generation is mainly characteristic of its high accuracy, despite crowded group, closthes, colors etc.
Each counting camera can detect passenger On and Off, and can distinguish human and object.
It becomes important system for public transportation enterprises and governments.
Counts passengers getting both on and off
Because the front door and back door sensors count people getting on and off respectively, it is possible to count passengers simultaneously when they all get on and off at once.
Counts two passengers at once
A single sensor is able to function properly even if a wide door allows two passengers to get on/off at the same time.
Stable accuracy more than 95%
Accuracy is based on average accuracy of an actual vehicle count (in our recommended environment).
*Note: Accuracy may vary depending on the installed environment and boarding/alighting conditions.
Outputs live images
The camera's video output function allows viewing of the conditions near the middle door (back door), which is difficult to see, and also records the images in the video event data recorder.

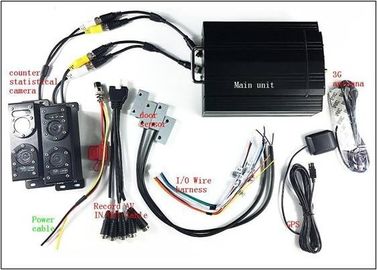

1. Main Unit
Counter Processor(brain), Mounted at the bottom of seat or ceiling of bus, process and calculate the data, send to HDD storage or GPRS&3g&4g.

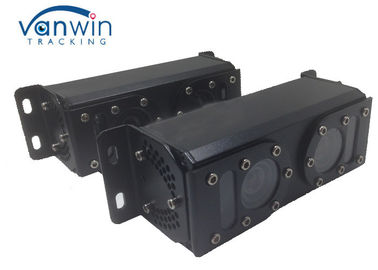

2. Binocular Camera
Mounted on the ceiling of the doors, counts passengers get in or out of the bus.
3. Door Sensor
Door open/close sensor, is used for sensing the door open or close status.
Main Features
- 95% up accurate
- High accuracy despite crowded group
- Not affected by clothes color and passenger height etc
- Long duration and low maintenance
- Accurate counting for On and Off through Front and Back door
- Automatically generate statistic report
- Easy installation and uninstallation
- More accurate surveillance and more effective management on ticket, conductor and driver.
- Supporting 4ch/8ch video recording, SD card& HDD storage.
- Supporting 3g, gps, wifi, alarm, G-sensor functions.
Main Specifications
| Item | Description | |
| OS | Linux3.0 | |
| Graphics Operation Interface | System parameters can be set through external display and remote controller | |
| Security Management | 2-level management for user password, administrator password, supporting encrypted transmission | |
| Video and Preview | Video Input, Output | 4-channel video input, 1channel video output; 1.0Vp-p, 75Ω |
| OSD | Character superposition function, information superposition of time and date, device ID and GPS, etc. | |
| Video Compression Format | Compression coding. Applying Hisilicon hi-performance processor. | |
| Dual-Stream | Supported | |
| Preview Function | Preview of 1-channle, 4-image stitching, supporting full screen triggered by event and switching of stitched images | |
| Frame Rate | PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel | |
| Resolution | AHD 720P,D1, HD1 ,CIF 4channel | |
| Quality | Grade 1 to grade 8 for selection (1 is the best) | |
| Bit Rate |
CIF: 300Kbps ~ 1.2 Mbps, 8-level bit rates for selection HD1: 500Kbps ~ 1.5 Mbps, 8-level bit rates for selection D1: 600Kbps ~ 2Mbps, 8-level bit rates for selection 720P: 800Kbps ~ 4Mbps, 8-level bit rates for selection |
|
| Audio | Audio Input, Output | 4-channel input, 1-channel output |
| Compression Format | G.726 coding | |
| Recording | Storage Medium | Supporting one 2.5” hard drive and one SD card, which supports up to 128G, supporting data redundancy storage technology; |
| File Format/ System | Special file system | |
| Video Strategies | Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording | |
| Video Search | Searching by time, type, storage device and other conditions | |
| Video Playback | Supporting playback on local device, supporting synchronous playback of up to 4 channels and analysis on vehicle information in the files | |
| Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time | ||
| Alarm | Alarm Input/ Output | 8-channel on/off signal alarm input, 2-channel on/off signal alarm output |
| Alarm Recording | duration of recording after alarm can be adjusted from 10s ~ 999S | |
| Storage Space Alarm | Supporting settings for alarm of storage space | |
| Function Alarm | GPS overspeed alarm, acceleration alarm, motion detection alarm | |
| counter | Passenger Video counter | Two doors Synchronous statistics. the recognizing accuracy was more than 95% |
| Communication Ports | 485,RS232, RJ45 10M/100M self-adaptable network interface | |
| Wireless Transmission (Optional) | Supporting Wi-Fi; | |
| GPS (Optional) | Supporting external GPS | |
| PTZ Control | Supporting PTZ control realized by local; | |
| Parameter Configuration | Supporting parameter configuration functions for mobile DVR coding channel; | |
| G-Sensor | Embedded | |
| System Upgrading | Supporting SD card, hard drive upgrading and remote upgrading | |
| Power Supply and Power Consumption | Power Supply |
1. ACC on/off 2. Hard drive lock on/off 3. Delayed shutdown 4. Timed on/off |
| Input Voltage | DC:+9V ~ +36V | |
| Output Voltage | +12V@5*0.5A; | |
| Power-off Protection | With patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure | |
| Power Consumption | <10W in normal operation; <0.5W in standby mode | |
| Operating Environment | Temperature | Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃ |
| Humidity | 10% to 95% | |
| Dimensions | 160(W) x62(H) x200(D) mm. | |
| Weight | Net: 2020g, Gross: 3500g | |
FAQ1.Q: Does the MDVR support Hard drive and SD card?
A: Yes, HDD version MDVR supports SSD, HDD, and SD card. SD card version MDVR supports max 2 SD card.
The storage capacity can be from 32GB to 2TB.
2.Q: Is it difficult to install MDVR into the vehicle?
A: Actually it is easy to install it into vehicle. Most driver can figure out how to connect the power cables.
And the camera installation is more easy. Just screw, connect and mount on the target place inside the vehicle.
3.Q: If I need door open and close alarm, overspeed alarm, reverse video, brake video, left-turn video, right-turn video, etc,
is it available?
A: Definitely yes!
The I/O RS232 and 485 extension port is for all expanded purposes, including the functions above.
In fact, there are more customized functions which can be connect through this port, such as Fuel sensor, Counter system,
PTZ camera, and so on.
4.Q: We have our own platform and server, can we use your MDVR? Do you have SDK or can you do customized platform for us?
A: Yes, we have SDK ready and welcome your OEM customized order!
Please contact us for specific manual in details
