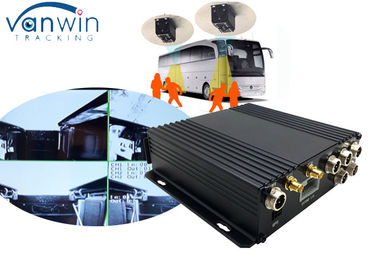

Linux Video Bus People Counter , SD Card Storage Bus Passenger Counter System

Linux Video SD card Counting Bus People Counting Camera system With RS232/485 Serial Port

The 3rd generation of Video counter system has its features below:

1. with double lens for each counting camera .,add much higher accuracy.
2. Suitable for 8V-36V power supply.Especially for bus /school bus application.
3. Just count people not count animals or object.
4. Developed by ourselves ,with patent protection.
5. 98% up accurate,High accuracy despite crowded group
6. Not affected by clothes color and passenger height etc
7. Accurate counting for On and Off through Front and Back door
8. Automatically generate statistic report
9. Easy installation and uninstallation
10. More accurate surveillance and more effective management on ticket, conductor and driver

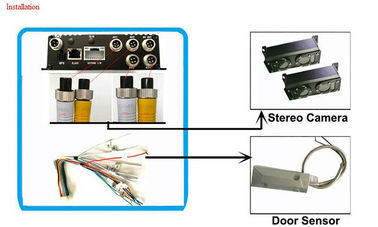

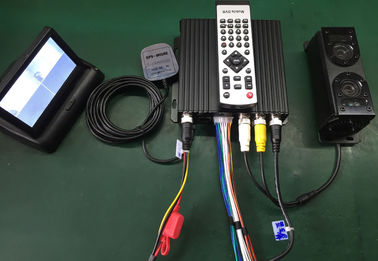

It includes the whole suit  and installation guide below

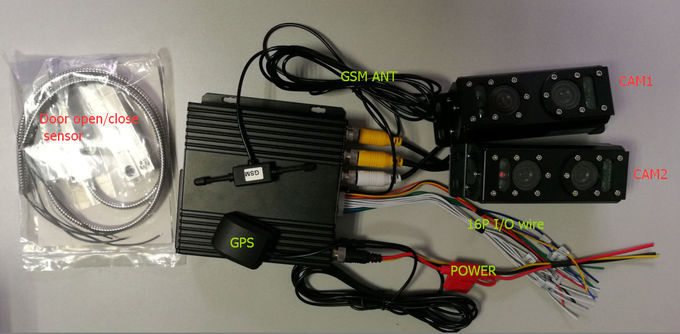

1. Main Unit

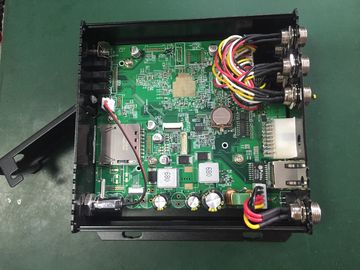

Counter Processor(brain), Mounted at the bottom of seat or ceiling of bus, process and calculate the data, send to SD card storage or GPRS&3g

2. Binocular Camera

Mounted on the ceiling of the doors, counts passengers get in or out of the bus.

3. Door Sensor

Door open/close sensor, is used for sensing the door open or close status.

Product Description&Specification

• System: Linux
• CPU: TMS320DM6446
• Operation Interface: OSD with mouse and remote control
• Video Counting input: Max 2 channels
• Video Counting output: 1 channel
• Accuracy: 95% up
• Operating voltage: DC 8—36V
• Operating power: ≤4W
• Operating temperature: -20°C -- +80°C
• Operating humidity: 10% -- 95%
• USB port: Standard 2.0
• Counting input port: Aviation

Counting camera Parameters

• Image Sensor:1/3 SONY CCD
• TV System: PAL/NTSC
• TV Lines:700TVL
• Image Output: Synchronous sampling output
• Lens’ Spacing:5MM
• Len:960*576 Pixel,3.6 mm (2.8mm/3.6mm/4mm/6mm Optional)
• Viewing Angle:55 degree
• Installation height Range:2.1M~2.3M(3.6MM len), 1.9M~2.1M(2.8MM len),
• 2.3M~2.5M(4MM len)
• Detecting Door Width Range:0.4M~1.2M
• White Balance:Auto
• Shutter:1/50-1/80000(s) 1/60-1/80000(s)
• Frame rate:25 FTPS
• Video Output Interface:Composite video output, 75Ω 1Vp-p Aviation
• Gain:Auto
• SNR:＞48db
• Power Supply:DC12 V
• Power:≤1W
• Working Temperature:-30～+55℃
• Relative Humidity:10%～90% Not condensed
• Cooling: no active cooling, passive structure with heat dissipation
• Product Size:155(L)*50(W)*55(H)MM
• Weight:0.32KG

Door sensor

• Contact Way:Connected when touch, disconnected when separate
• Max Power:10W
• Min Switch Voltage:100VDC
• Avalenche Voltage:200VDC
• Max Switch Current:0.5A
• Max Load Current:1A
• Max Contact Resistance:100mΩ
• Min Insulation Resistance:10~10Ω
• Moving Time:0.4ms
• Bounce Time:0.3ms
• Release Time:0.05ms
• Max Working Frequency:5000±400HZ
• Sensitivity:07-10AT
• Minimum Reset Index:5AT
• Max Contact Capacity:0.3pF
• Housing Material: Zinc Alloy
• Product Color: Gray
• Working Temperature:-30℃~80℃
• Working Relative Humidity:≤95%(40℃)
• Sense Magnetic /Release Distance:35-45MM

Platform show

Notice: If you buy our 3G counter(with mdvr together), you will use our platform ;if you buy our GPRS counter ,also you can use our management platform tool ,also you can use your own platform with our protocol by RS232/485 interface.

Config Setting for people counter

The GPRS System box:

Please contact us for specific manual in details
