Binocular Camera 4W Linux Cpu Bus People Counter TMS320DM6446

Binocular Camera 4W Linux Cpu Bus People Counter TMS320DM6446

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW608C-3G

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
Delivery Time: 2-3 days for samples,15-30 days for large orders
Payment Terms: T/T or western Union or Paypal
Supply Ability: 5,000pcs per month; 3G bus passenger counting system 98% accuracy with RS232 / RS485 port, Protocol Supported
Get Best Price Contact Now

Detail Information

Power Supply: 8V-36V Function: Passenger Counting, Calculation, GPRS Data Sending
Support: Softwares And Technology Support Counter Types: 4 Types For Optional
Level: World Class Anti-vibration Technology Operation Interface: OSD With Mouse And Remote Control
Camera: Binocular Camera Storage: Platform Or 32GB SD Card
GPRS/3G/4G: Option GPS Tracking: Option
High Light:

TMS320DM6446 Bus People Counter

,

Linux Cpu Bus People Counter

,

4W Bus Passenger Counter

Product Description

2 doors Basic Bus Peopl Counter with linux cpu for comfortable bus



  1. Our basic People Counter is an automatic bus passenger counting machine with high accuracy (95% -98%), which is developed based on binocular stereo vision technology and intelligent video analysis technology.
  2. With a passenger counting system, transport managers gain accurate key performance measures like passengers per mile and number of passengers per day.
  3. For every cycle time from door-open to door-close, the passenger number of get-on or get-off with time&date and gps positioning information will be stored into SD card&Server.
  4. And all the counting data(including passenger nubmer, time, date, gps positioing infomation) will be saved in SD card.
  5. We will provide the protocol to integrated with your third-party system with RS232 and RS485 port.

Product Description&Specification:

  1.      System: Linux
  2.      CPU: TMS320DM6446
  3.      Operation Interface: OSD with mouse and remote control
  4.      Video Counting input: Max 2 channels
  5.      Video Counting output: 1 channel
  6.      Accuracy: 95% up
  7.      Operating voltage: DC 8—36V
  8.      Operating power: ≤4W
  9.      Operating temperature: -20°C -- +80°C
  10.      Operating humidity: 10% -- 95%
  11.      USB port: Standard 2.0
  12.      Counting input port: Aviation

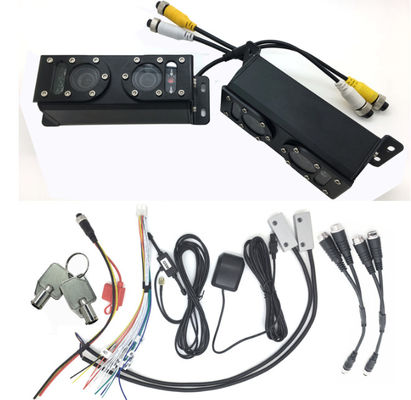

It includes the whole suit  and installation guide below

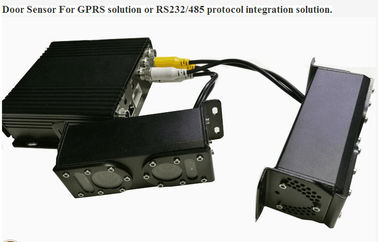

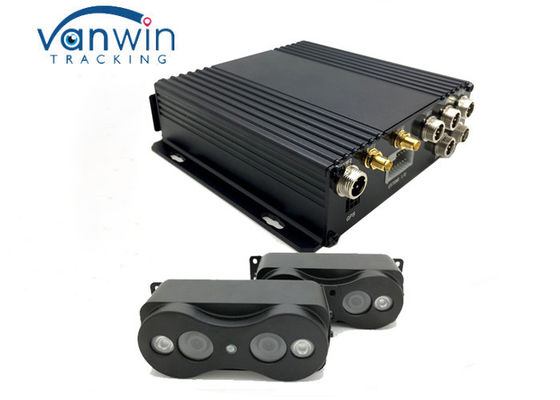

1. Main Unit

Counter Processor(brain), Mounted at the bottom of seat or ceiling of bus, process and calculate the data, send to SD card storage or 3g



2. Binocular Camera

Mounted on the ceiling of the doors, counts passengers get in or out of the bus.



3. Door Sensor

Door open/close sensor, is used for sensing the door open or close status.



Wire Connection



1. connect “CAM1” to “AV1” ; connect “CAM2” to “AV2” ;

2. connect “CAM3” to “AV3” ; connect “CAM4” to “AV4” ;

Binocular Camera 4W Linux Cpu Bus People Counter TMS320DM6446 0



Install counting camera on top of the door



Find the suitable point on top of the door

1 If the bus has 2 doors, then use 2 counting cameras.

If one door please only connect counting camera No.1.

2 Vertical principle. It requires to face the counting camera vertical toward the ground. Use the bracket to adjust until it is vertical. The minimum angle for each single adjustment is 2.5 degree for the easiest adjustment purpose.

3 There are 4 holes on the back of the counting camera for easy fix purse by screw. M2.5 X 5 screw is recommended. This design is for easy fixing by means of other tools such as normal camera bracket, customized boom etc.

4 Make sure the counting camera is fixed on the center of the top with range 220 centimeter (minimum) from top to pedal.

5 For good performance, the lens should be selected according to target vehicle. Firm and stable feature are high demanded for the camera installation.



Binocular Camera 4W Linux Cpu Bus People Counter TMS320DM6446 1

Binocular Camera 4W Linux Cpu Bus People Counter TMS320DM6446 2

Binocular Camera 4W Linux Cpu Bus People Counter TMS320DM6446 3



Platform show

Notice: If you buy our 3G counter(with mdvr together), you will use our platform ;if you buy our 3G counter/counter ,also you can use our management platform tool ,also you can use your own platform with our protocol by RS232/485 interface.



Binocular Camera 4W Linux Cpu Bus People Counter TMS320DM6446 4





Why choose the system?

  1. with double lens for each counting camera .,add much higher accuracy.
  2. Suitable for 8V-36V power supply.Especially for bus /school bus application.
  3. Just count people not count animals or object.
  4. Developed by ourselves ,with patent protection.
  5. 98% up accurate,High accuracy despite crowded group
  6. Not affected by clothes color and passenger height etc
  7. Accurate counting for On and Off through Front and Back door
  8. Automatically generate statistic report
  9. Easy installation and uninstallation
  10. More accurate surveillance and more effective management on ticket, conductor and driver.



Please contact us for specific manual in details
