|Power Supply:||8V-36V DC Voltage||Type:||Passenger Counter For Bus|
|USB Port:||Standard 2.0||RS232/RS485:||Supported|
|Sensor Type:||Video Counting, 98% Accuracy||Interface:||RJ45,RS232,RS485|
|Operation Interface:||OSD With Mouse And Remote Control||Camera:||Binocular Cameras&Monitoring Cameras|
|AV Out:||4CH CCTV Cameras Inputs+4 Channel Counting Cameras Inputs||Installation:||Vehicle Door,mounted On Ceiling|
|Protocol:||Support RS232/485 And 3G Communication Serial||Data Transmission:||3G, 4G, GPS, WIFI ,GPRS, RS232/485, HDD Storage|
|Application:||City Bus, School Bus And Other Transport Vehicle Ect.|
RS232 Camera Passenger Counter,
4CH CCTV Camera Passenger Counter,
Mobile Dvr People Counting Sensor
High Accuracy People Counting Sensor Camera Passenger Counter connect with mobile dvr for Bus
3G passenger counter with binocular lens is developed based on advanced Video Counting&image analysis technoloy.
It judges passenger's number by capturing human characteristics such as head, shoulders, body and body's get-on& get-off Movement characteristics and obtains accurate counting results by high-speed DSP intelligent algorithm.
After many year's improment and development, the core calculation has been successfully used in different application scenarios and vehicles. Normally the accuracy of statistics is over 98% and with crowded circumstances, the accuracy is over 95%.
It can automatically filter backpack, luggage etc.
3G passenger counter can support 4 channels input video, AHD 720P or 2 channels AHD720P + 2 channels D1 cameras or all D1 cameras; GPS location tracking; 3G/4G live video streaming view; HDD (max 2TB)+SD(max 128GB), Counting people getting on and off the bus, alarm trigger like over speed,harsh brake, RS232/485 for extension functions like oil sensor, G-sensor, lan port, etc.

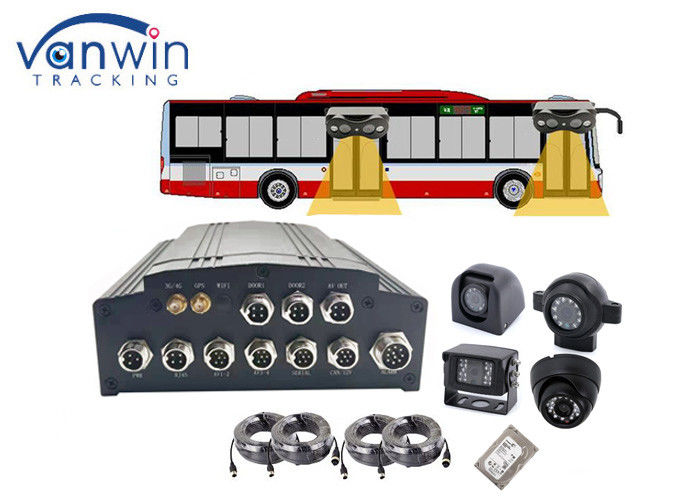

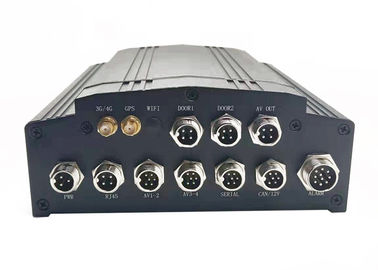

1. Main Unit(below)
Counter Processor(brain), Mounted at the bottom of seat or ceiling of bus, process and calculate the data, send to HDD storage or 3g/4g
2. 2 Binocular Cameras for front and back door

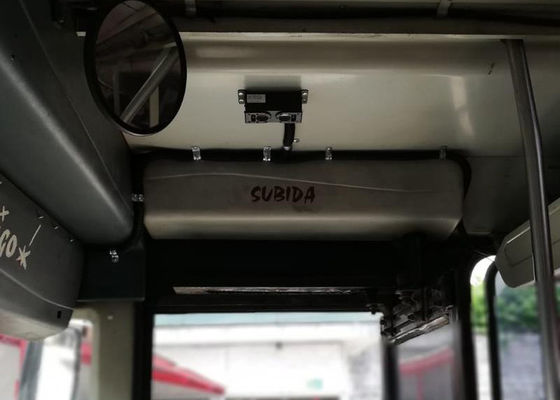

Mounted on the ceiling of the doors, counts passengers get in or out of the bus.
3. 4 CCTV Cameras
4. One car monitor for Option
|Graphics Operation Interface||System parameters can be set through external display and remote controller|
|Security Management||2-level management for user password, administrator password, supporting encrypted transmission|
|Video and Preview||Video Input, Output||8-channel video input, 1channel video output; 1.0Vp-p, 75Ω|
|OSD||Character superposition function, information superposition of time and date, device ID and GPS, etc.|
|Video Compression Format||Compression coding. Applying Hisilicon hi-performance processor.|
|Preview Function||Preview of 1-channle, 4-image stitching, supporting full screen triggered by event and switching of stitched images|
|Frame Rate||PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel|
|Resolution||AHD 720P,D1, HD1 ,CIF 4channel|
|Quality||Grade 1 to grade 8 for selection (1 is the best)|
CIF: 300Kbps ~ 1.2 Mbps, 8-level bit rates for selection
HD1: 500Kbps ~ 1.5 Mbps, 8-level bit rates for selection
D1: 600Kbps ~ 2Mbps, 8-level bit rates for selection
720P: 800Kbps ~ 4Mbps, 8-level bit rates for selection
|Audio||Audio Input, Output||4-channel input, 1-channel output|
|Compression Format||G.726 coding|
|Recording||Storage Medium||Supporting one 2.5” hard drive and one SD card, which supports up to 128G, supporting data redundancy storage technology;|
|File Format/ System||Special file system|
|Video Strategies||Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording|
|Video Search||Searching by time, type, storage device and other conditions|
|Video Playback||Supporting playback on local device, supporting synchronous playback of up to 4 channels and analysis on vehicle information in the files|
|Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time|
|Alarm||Alarm Input/ Output||8-channel on/off signal alarm input, 2-channel on/off signal alarm output|
|Alarm Recording||duration of recording after alarm can be adjusted from 10s ~ 999S|
|Storage Space Alarm||Supporting settings for alarm of storage space|
|Function Alarm||GPS overspeed alarm, acceleration alarm, motion detection alarm|
|counter||Passenger Video counter||Two doors Synchronous statistics. the recognizing accuracy was more than 95%|
|Communication Ports||485,RS232, RJ45 10M/100M self-adaptable network interface|
|Wireless Transmission (Optional)||Supporting Wi-Fi;|
|GPS (Optional)||Supporting external GPS|
|PTZ Control||Supporting PTZ control realized by local;|
|Parameter Configuration||Supporting parameter configuration functions for mobile DVR coding channel;|
|System Upgrading||Supporting SD card, hard drive upgrading and remote upgrading|
|Power Supply and Power Consumption||Power Supply||
1. ACC on/off
2. Hard drive lock on/off
3. Delayed shutdown
4. Timed on/off
|Input Voltage||DC:+9V ~ +36V|
|Power-off Protection||With patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure|
|Power Consumption||<10W in normal operation; <0.5W in standby mode|
|Operating Environment||Temperature||Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃|
|Humidity||10% to 95%|
|Dimensions||160(W) x62(H) x200(D) mm.|
|Weight||Net: 2020g, Gross: 3500g|
1)What purpose does the sensor serve?
Re:The sensor is designed to count the number of bus passengers getting on or off.
All passengers are counted regardless of their payment method (cash, pass, welfare ticket, or discount ticket).
4)Passenger counter and surveillance passenger cameras work with the same device or they work with their own one?
Re: we actually have 3 different models.
Model A is basic counter device
Model B is GPRS counter
Model C is HDD mdvr &counter all in one kit.
For model C, they supports 4ch recording, means you could connect max 4 another surveillance cameras with our main unit, so totally 2 counting cameras+ 4 surveillance cameras+ Main unit.
Please contact us for specific manual in details
