MDVR Vehicle Black Box DVR Camera People Counter For Bus Safety
Product Details:
| Place of Origin: | China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE ROHS |
| Model Number: | VW9204C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | USD100-USD1000 |
| Packaging Details: | Neutral package, carton box |
| Delivery Time: | 3-15days upon payment |
| Payment Terms: | L/C, T/T, Western Union,paypal |
| Supply Ability: | 1000PCS/month |
|
Detail Information |
|||
| Product Name: | Bus People Counter | Storage: | Dual SD Card, Max 512GB |
|---|---|---|---|
| Product Name: | 4G GPS Bus Passenger Flow Statistics Tool Video Counting Sensor | Functions: | Counting,GPS Tracking&locating, Reports For Fuel Level Aram Etc |
| Signal Trigger: | GPS Speed Trigger /Door Open/close Trigger | Video Inputs: | 4CH Counting Video Inputs |
| Accuracy: | Up To 98% | Wireless Connection: | Wi-Fi/4G |
| Data Analysis: | Real-time Analysis | Sensor: | High-precision Sensor |
| High Light: | MDVR Vehicle Black Box,DVR Camera People Counter |
||
Product Description

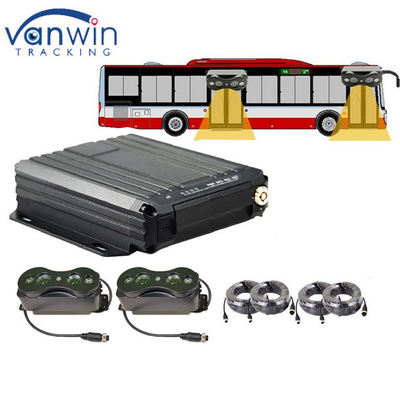

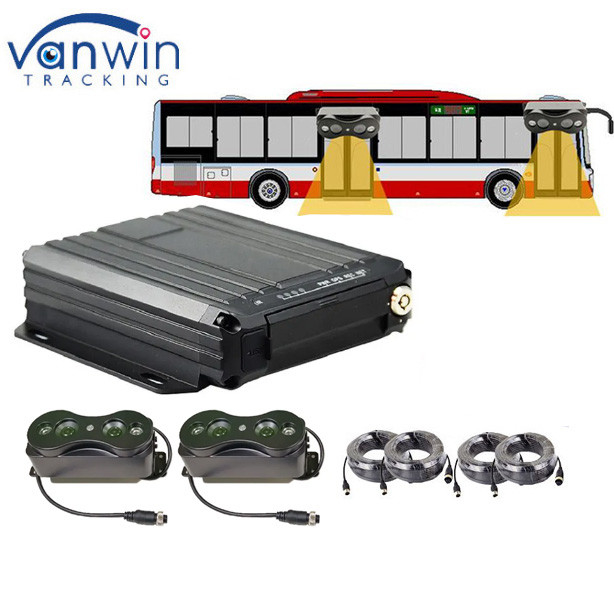

MDVR Vehicle Black Box DVR Camera People Counter for Bus Safety
Product Introduction:
9204C is a cost-effective and scalable device developed specifically for passenger flow statistics and in vehicle video surveillance. It adopts high-speed processor HI3520D V400 and Embedded operating system, and combines the most advanced H.264/H.265 video compression/decompression technology, 4G/3G network technology, GPS/BD positioning technology and WIFI technology in the IT field. Can achieve 1080P, 720P, D1 resolution video recording. Combined with the GPS module, accurate statistics of passenger flow at each platform can be carried out. Cooperating with the central software can achieve central monitoring, remote management, and analysis based on the central database for alarm linkage. By analyzing and mining passenger flow data, scientific basis can be provided for the allocation of public transportation vehicle resources. The product has a simple appearance, strong vibration resistance, flexible and convenient installation, powerful functions, and high reliability.
Product Features:
a)GPS speed trigger or door open/close trigger for counting
b) With snapshot stored to prove the counting error for more precise data recport
c)Vehicle-specific interface with good user experience.
d) The recording resolution is up to 1080P, using the latest H.265 digital encoding technology, high coding efficiency and flexible strategy.
e) Supports the AP direct connection function, which can be directly connected to the device through the mobile phone APP to perform parameter setting and other functions on the phone.

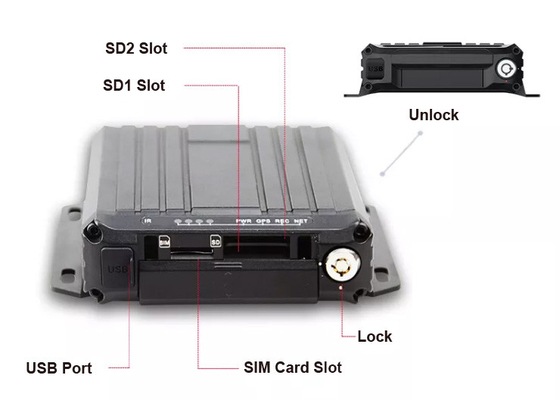

f) Support Dual Sd card storage for data backup
g) The hardware design has a power-off protection function. When the device suddenly powers off, the built-in super capacitor can be enabled to achieve normal shutdown, effectively avoiding the loss of key data.
h) Can be built-in ADAS, DSM module, lane departure, collision, drowsiness, smoking, call detection and warning.
i) Built-in G-sensor accelerometer, adaptive installation position, no need to manually set, support driver driving behavior detection.
j) All-aluminum alloy case, fanless design, with good heat dissipation.

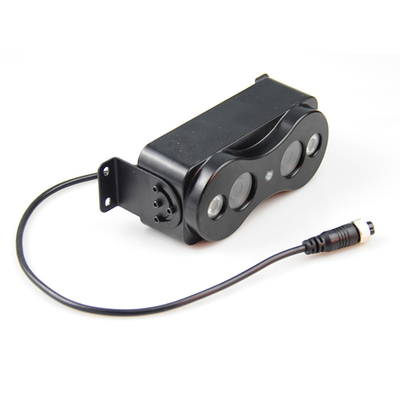

Counting Camera Specifications:
| Specifications | parameter |
| Image sensor | 1/3CMOS |
| Video format | PAL/NTSC(optional) |
| Horizontal resolution | 700 TV Lines |
| Image output | Simultaneous sampling output |
| Lens spacing | 5cm(12cm optional) |
| Lens parameters | 960*576 pixels, 2.8 mm (2.8mm/3.6mm/4mm/6 mm optional) |
| White balance | Automatic |
| Shutter | 1/50-1/80000(seconds) 1/60-1/80000(seconds) |
| Frame rate | 25 (frames/ second) |
| Video output interface | Composite video output,75Ω 1Vp-p BNC |
| Gain | automatic gain control |
| Signal to noise ratio | ＞48db |
| Power | 5-24Vvoltage input |
| Working current | 370MA≤ |
| Size | 133(W)mmx50(H)mmx59.65(L)mm(L×W×H) |
| Weight | about 0.35KG (single camera) |
| Operating temperature range | -20~+70℃ |
| Relative humidity | 10%～90%non-condensing |
| Heat dissipation | Passive structural heat dissipation |
Application
