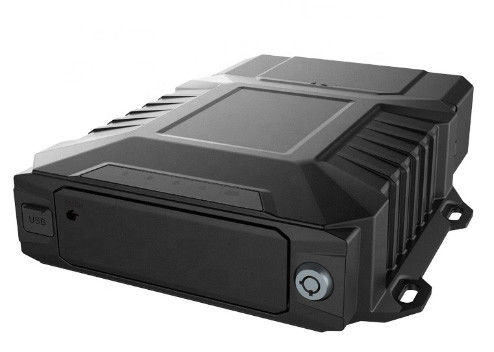

8CH 1080P HDD Car GPS Mobile DVR Integrated AI Functions Bus People Counter MDVR

8CH 1080P HDD Car GPS Mobile DVR Integrated AI Functions Bus People Counter MDVR

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW9208HD

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
Delivery Time: 2-3 days for samples,15-30 days for large orders
Payment Terms: T/T or western Union or Paypal
Supply Ability: 5,000pcs per month
Get Best Price Contact Now

Detail Information
Type: 8CH DVR 4G GPS AI Mobile DVR For School Bus, Truck Application: Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining Truck Fleets
Alarm: 6CH Alarm Inputs, 2CH Alarm Output Storage: 1/2TB Hdd Storage+1*sd Card
Resolution: 8ch 720P(1280x720), 960p, 1080P Camera: CVBS/720P/960P/1080P/IP
Power Supply: 9-36V DC WIFI Download: Support
Video Format: H.265/H264 Warranty: 18 Months
AI Function: ADAS/DSM/BSD Optional Serial Port: Support 2 RS232, 1 RS485
Language: English/Chinese/other Language Can Be Customized Software Support: Client For PC And Mobile Phone, Server, Playback Software
High Light:

8CH GPS Mobile DVR

,

1080P HDD GPS Mobile DVR

,

Integrated AI People Counter MDVR

Product Description

8CH 1080P HDD car Mobile GPS DVR Integrated AI functions Bus People Counter MDVR Vehicles CCTV Car black box

System Selling Points:
1) MDVR + AI All-In-One. Monitoring and Enhance Driving Safety at the same time.
2) Strongly Support ADAS+DSM+Bus People Counter. Further support BSD, 360 degree and ect.
3) 8 channel full HD (1080P) video recording, H.265.
4) World first AI MDVR, 1.2T computing NPU ensures high accuracy and stable performance.


Main Specifications

project
parameter specification
Audio and Video Inputs
video input
AHD:8ch 1080/25fps
IPC:Scalable 1-8ch
audio input
4ch audio iuput
Audio and Video outputs
video output
Default 1-way CVBS output (VGA output optional)
speech output
1ch audio output
Audio and video parameter coding
video coding
H.264 Main Profile/H.265
· Resolution
1080P/720P/D1 optional
audio coding
Default G.726,G.711A optional
storage space
HDD
1 2.5-inch optional: SSD/HDD hard disk
SD
Support 1 SD card
wireless network
4G
Supports 1 SIM card, optional: all major communication modules in the world
WIFI
2.4/5.8G optional
locate mode
BD/GPS
Support for mixed positioning, speed detection, time synchronization

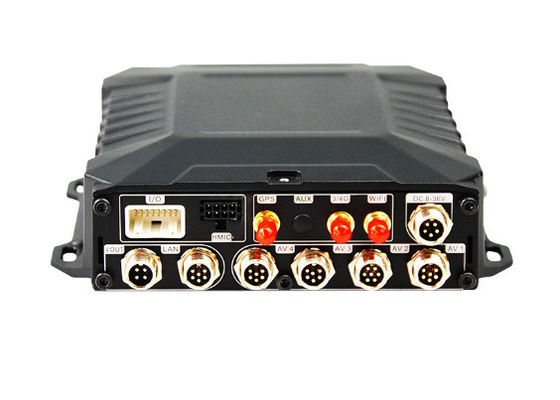

interface
USB
USB2.0 interface, support export data, external engineering treasure
serial port
Support 2 RS232, 1 RS485, can be connected with external sensor
I/O
4 level inputs, 2 analog inputs, 2 alarm outputs
network interface
Support external IPC, support hybrid NVR function
· Intercom
1 special intercom handheld mark interface
Other
operator schema
remote control,APP,WEB
· Gravity sensor
Built-in G-Sensor
Configurable AI algorithms
Face recognition,eople Counting



Products Details

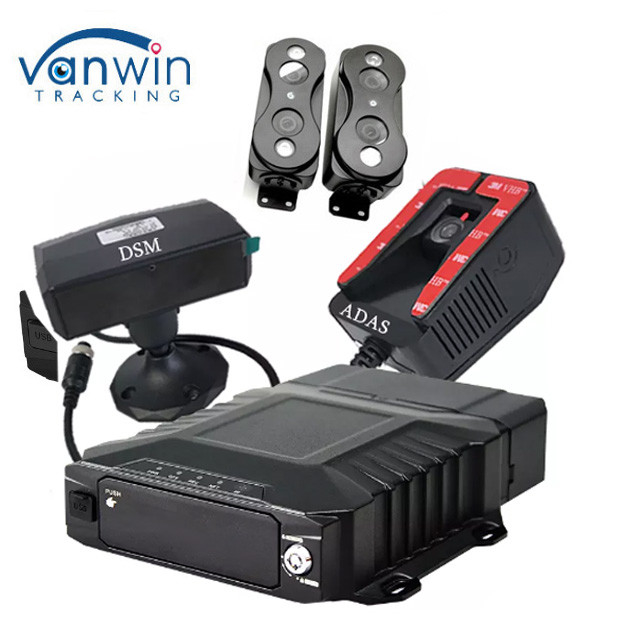

8CH 1080P HDD Car GPS Mobile DVR Integrated AI Functions Bus People Counter MDVR 0

8CH 1080P HDD Car GPS Mobile DVR Integrated AI Functions Bus People Counter MDVR 1

ADAS warning camera

1. Warning of lane deviation without turn signal
2. Excessive warning of car in front of you
3. Warning of impending collision
4. voice broadcast reminder,Provide real-time voice
6. Adjustable Angle, high temperature resistance


DSM prevents fatigue driving camera
1. Fatigue driving warning
2. Abnormal sightwarnings
3. Call warning
4. Imagecover warning
5. Driver change warning
6. Warning of camera failure
7. Supporte wide dynamic HDR response
8. 360°adjustable Angle, high temperature resistance

Specifications for DSM Camera

Item
Description
Modelvw
VW-DMSM-22
Parameter of Lens
Image sensor
1080P CMOS IMAGE SENSOR
Optical format
1/2.7 inch
pixel
1936H*1096V(1080P)
Pixel size
3.0*3.0um
output format
10-bit RGB Raw Data
Image output video
Analog HD AHD signal
Wide dynamic
95DB
lens structure
4E
aperture
2.0
Lens resolution
5 million pixels
Angle
Horizontal H: 85°
Vertical V: 45°
IR filter
940 IR
Lamp beads
wavelength
940nm
Number
2
work environment
voltage
12V
current
230 mA±5
temperature
-20 ～ 70℃
Storage temperature
-30 ～ 80℃
Working humidity
45%-80%RH
Store humidity
30%-90%RH
atmospheric pressure
860MBar ～ 1060Mbar
Size
interface
4PIN MicroTCA
Line length
55cm
weight
175g
Structure size
77(L)*55(W)*89(H)mm



4G Client Monitoring Platform CMSV6

8CH 1080P HDD Car GPS Mobile DVR Integrated AI Functions Bus People Counter MDVR 2

FQA

1. Do you provide the free CMS?

Yes, is free of charge. We will provide you the authorized code after you buy our equipment.



2. What is the minimum requirement to run this software?

CPU 2.5G four core; Memory 8GB; HDD 1TB;



3. Which OS can run this software?

server2002 / server2008 / Windows xp / Windows 7 / Windows 10, both 32bit and 64bit.



4. After we build our own server, can the IP of units be changed remotely?

Actually we can provide the protocol package for you to develop your own CMS. You could remotely change the settings of your vehicles, this is no problem.



Any further questions, please don't hesitate to contact us, we are very pleased to help you.
