1080P Bus Passenger Counting MDVR Camera, 3D Binocular Bus People Counter, GPS Mobile DVR for Passenger Flow & Safety Monitoring
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW9028C-AI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 5,000pcs per month |
|
Detail Information |
|||
| Type: | 1080P Bus Passenger Counting MDVR Camera For School Bus, Truck | Application: | Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining Truck Fleets |
|---|---|---|---|
| Alarm: | 6CH Alarm Inputs, 2CH Alarm Output | Storage: | 1/2TB Hdd Storage+1*sd Card |
| Resolution: | 8ch 720P(1280x720), 960p, 1080P | Camera: | CVBS/720P/960P/1080P/IP |
| Power Supply: | 9-36V DC | WIFI Download: | Support |
| Video Format: | H.265/H264 | Warranty: | 18 Months |
| AI Function: | ADAS/DSM/BSD Optional | Serial Port: | Support 2 RS232, 1 RS485 |
| Language: | English/Chinese/other Language Can Be Customized | Software Support: | Client For PC And Mobile Phone, Server, Playback Software |
| Highlight: | 1080P Bus Passenger Counting MDVR Camera,3D Binocular Bus People Counter |
||
Product Description

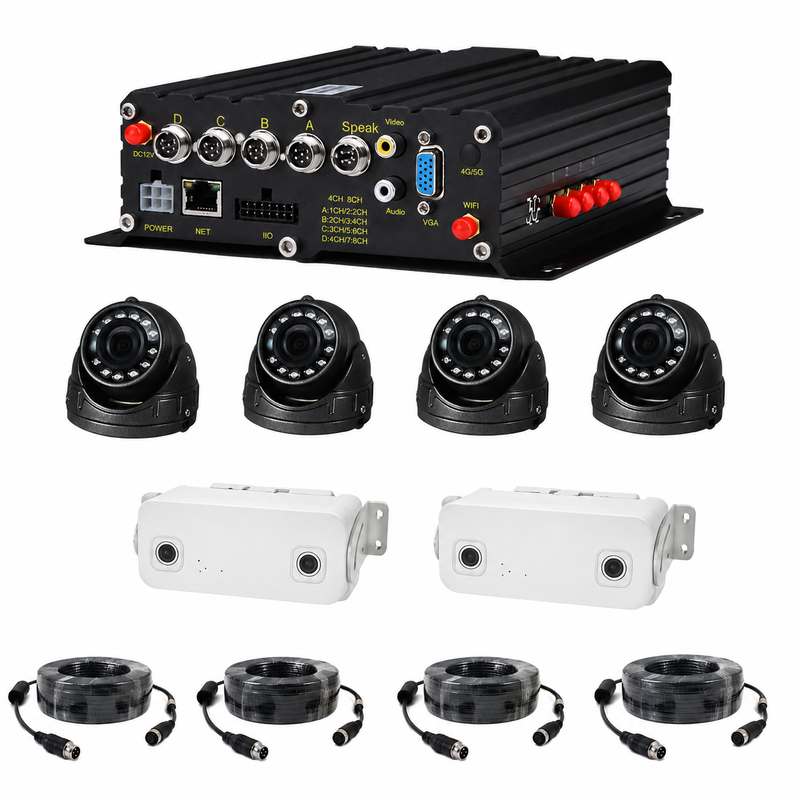

8CH 1080P HDD car Mobile GPS DVR Integrated AI functions Bus People Counter MDVR Vehicles CCTV Car black box
System Selling Points:
- MDVR + AI All-In-One. Monitoring and Enhance Driving Safety at the same time.
- Strongly Support ADAS+DSM+Bus People Counter. Further support BSD, 360 degree and ect.
- 8 channel full HD (1080P) video recording, H.265.
- World first AI MDVR, 1.2T computing NPU ensures high accuracy and stable performance.
Main Specifications
| project | parameter specification | |
| Audio and Video Inputs | video input | AHD:8ch 1080/25fps IPC:Scalable 1-8ch |
| audio input | 4ch audio iuput | |
| Audio and Video outputs | video output | Default 1-way CVBS output (VGA output optional) |
| speech output | 1ch audio output | |
| Audio and video parameter coding | video coding | H.264 Main Profile/H.265 |
| · Resolution | 1080P/720P/D1 optional | |
| audio coding | Default G.726,G.711A optional | |
| storage space | HDD | 1 2.5-inch optional: SSD/HDD hard disk |
| SD | Support 1 SD card | |
| wireless network | 4G | Supports 1 SIM card, optional: all major communication modules in the world |
| WIFI | 2.4/5.8G optional | |
| locate mode | BD/GPS | Support for mixed positioning, speed detection, time synchronization |
| interface | USB | USB2.0 interface, support export data, external engineering treasure |
| serial port | Support 2 RS232, 1 RS485, can be connected with external sensor | |
| I/O | 4 level inputs, 2 analog inputs, 2 alarm outputs | |
| network interface | Support external IPC, support hybrid NVR function | |
| · Intercom | 1 special intercom handheld mark interface | |
| Other | operator schema | remote control,APP,WEB |
| · Gravity sensor | Built-in G-Sensor | |
| Configurable AI algorithms | Face recognition,eople Counting | |
Products Details
ADAS warning camera
- Warning of lane deviation without turn signal
- Excessive warning of car in front of you
- Warning of impending collision
- voice broadcast reminder,Provide real-time voice
- Adjustable Angle, high temperature resistance
DSM prevents fatigue driving camera
- Fatigue driving warning
- Abnormal sightwarnings
- Call warning
- Imagecover warning
- Driver change warning
- Warning of camera failure
- Supporte wide dynamic HDR response
- 360°adjustable Angle, high temperature resistance
Specifications for DSM Camera
| Item | Description | |
| Modelvw | VW-DMSM-22 | |
| Parameter of Lens | Image sensor | 1080P CMOS IMAGE SENSOR |
| Optical format | 1/2.7 inch | |
| pixel | 1936H*1096V(1080P) | |
| Pixel size | 3.0*3.0um | |
| output format | 10-bit RGB Raw Data | |
| Image output video | Analog HD AHD signal | |
| Wide dynamic | 95DB | |
| lens structure | 4E | |
| aperture | 2.0 | |
| Lens resolution | 5 million pixels | |
| Angle | Horizontal H: 85° | |
| Vertical V: 45° | ||
| IR filter | 940 IR | |
| Lamp beads | wavelength | 940nm |
| Number | 2 | |
| work environment | voltage | 12V |
| current | 230 mA±5 | |
| temperature | -20 ～ 70℃ | |
| Storage temperature | -30 ～ 80℃ | |
| Working humidity | 45%-80%RH | |
| Store humidity | 30%-90%RH | |
| atmospheric pressure | 860MBar ～ 1060Mbar | |
| Size | interface | 4PIN MicroTCA |
| Line length | 55cm | |
| weight | 175g | |
| Structure size | 77(L)*55(W)*89(H)mm | |
4G Client Monitoring Platform CMSV6
FQA
1. Do you provide the free CMS?
Yes, is free of charge. We will provide you the authorized code after you buy our equipment.
2. What is the minimum requirement to run this software?
CPU 2.5G four core; Memory 8GB; HDD 1TB;
3. After we build our own server, can the IP of units be changed remotely?
Actually we can provide the protocol package for you to develop your own CMS. You could remotely change the settings of your vehicles, this is no problem.
Any further questions, please don't hesitate to contact us, we are very pleased to help you.
