Focus on Vehicle Security Solution.
Quality is Our Culture! Trust us for Professional!
|Place of Origin:||Shenzhen,China|
|Brand Name:||Vanwin Tracking|
|Minimum Order Quantity:||1pc|
|Packaging Details:||Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .|
|Delivery Time:||2-3 days for samples,15-30 days for large orders|
|Payment Terms:||T/T or western Union or Paypal|
|Supply Ability:||5,000pcs per month ; 98% Accuracy Passenger bus Counter camera CCTV Mobile DVR Recorder system|
|Power Supply:||8V-36V||Storage Capacity:||1TB 2.5'' SATA HDD Or SSD|
|Functions:||3G Live Video ,GPS Track,video People Counter,G-sensor||Software Support:||Client,Server,Playback Software|
|Price For Agents:||Negotiable||Accuracy:||98% Above|
|Product Name:||3G Mobile DVR CCTV Super Net DVR Car Security Camera With Video People Counter||Warranty:||16 Months|

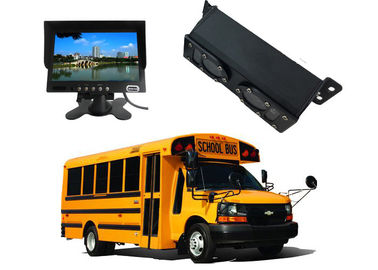

98% Accuracy Passenger bus Counter camera CCTV Mobile DVR Recorder system
Do you need to keep track of the number of passengers that board each day? also the location in real time as well as being able to see in real time the camera of a vehicle that needs to be reviewed?
This device has 4 channels input video, revolution AHD 720P or 2 channels AHD720P + 2 channels D1 cameras or all D1 cameras;

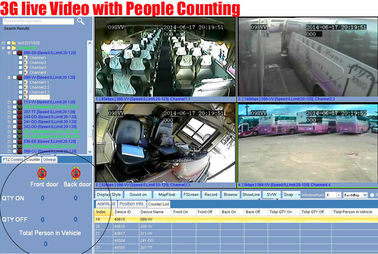

GPS location tracking; 3G/4G live video streaming view; HDD (max 2TB)+SD(max 128GB), Counting people getting on and off the bus, alarm trigger like over speed, harsh brake, RS232/485 for extension functions like oil sensor, G-sensor, lan port, etc features
Video counter system introduction
1. The 3rd generation of Video counter system is based on advanced smart counting technology and attains high accuracy by detecting morphological characteristics of human(head and shoulder) and the human movement situation of getting On&Off the vehicle.
2. 3rd generation is mainly characteristic of its high accuracy, despite crowded group, closthes, colors etc.
3. Each counting camera can detect passenger On and Off, and can distinguish human and object.
4. It becomes important system for public transportation enterprises and governments.
Travel agencies passenger vehicles, bus vehicles, the company shuttle vehicles, passenger ships and other vehicles.
Features and functions
|98% up accurate|
|High accuracy despite crowded group|
|Not affected by clothes color and passenger height etc|
|Long duration and low maintenance|
|Accurate counting for On and Off through Front and Back door|
|Automatically generate statistic report|
|Easy installation and uninstallation|
|More accurate surveillance and more effective management on ticket, conductor and driver.|
Operation Interface: OSD with mouse and remote control
Video Counting input: Max 2 channels
Video Counting output: 1 channel
Accuracy: 95% up
operating voltage: DC 8—36V
Operating power: ≤4W
Operating temperature: -20°C -- +80°C
Operating humidity: 10% -- 95%
USB port: Standard 2.0
Counting input port: Aviation

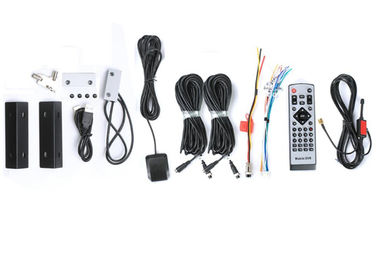

Video Counting input cable sample picture
1) The server software is free? What are the system requirements to use this software?
Re: Yes, it is free of charge.For server setup, you need to buy a static IP adress from your local network provider,
and then the computer should be with good performance (HDD capacity should be above 500GB,
Memory above 4G, CPU above 2G, with dual core, Network interface should be 100 Mega or 1000 mega.
2 What Operating system needs to be used? Windows 7 or 8 or Windows server? Can the WIFI auto download software be placed on the same system?
RE: yes, you could use windows system, 7 or 8 are both okay. Also the wifi auto download software are with the same
system. In fact, our current software are all based on windows system(only Clients is with android system)
3) When we start using your server and after some time we build our own,can the IP address in the units be changed remote or do we do this by wire?
If you build your own server, then you could change the DVR local settings by manual. After you used your own server,
then you could run the server TOOl software, then you could remotely change the settings of your vehicles, this is no problem.
