Bus Passengers Count Digital Statistics System SD Recording Counter RS232 or RS485 integration
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW608C-GPRS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 5,000pcs per month; Bus Passengers Count Digital Statistics System SD Recording Counter RS232 or RS485 integration |
|
Detail Information |
|||
| Accuracy: | Over 99% | Power Supply: | 8V-36V |
|---|---|---|---|
| Product Name: | High-precision Over 99% GPRS GSM SD Card Car DVR With People Counter Integration | Price: | Negotiable |
| Technology: | Unparalled And NEW | Support: | Softwares And Technology Support |
| Warranty: | 12 Months | Send Data: | By GPRS |
| OEM/ODM: | Welcome | ||
| High Light: | bus passenger counter,cctv mobile dvr |
||
Product Description
Bus Passengers Count Digital Statistics System SD Recording Counter RS232 or RS485 integration
Please contact us for installation Manual in details
We have two models of people counter ,one is with the function of recording i.e DVR function ,specifically 4ch HDD GPS 3G mobile dvr with people counting ;the other model is the new one GPRS people counter not have the function of recording ,but simple and can integrate into your platform .We can customize more projects.Welcome to browse our offical website for more examples .
Highlights
The 3rd generation of Video counter system is based on advanced smart counting technology and attains high accuracy by detecting morphological characteristics of human(head and shoulder) and the human movement situation of getting On&Off the vehicle. It is mainly characteristic of its high accuracy, despite crowded group, closthes, colors etc. Each counting camera can detect passenger On and Off, and can distinguish human and object.
Main Features
Product Description&Specification:
System: Linux
CPU: TMS320DM6446
Operation Interface: OSD with mouse and remote control
Video Counting input: Max 2 channels
Video Counting output: 1 channel
Accuracy: 95% up
Operating voltage: DC 8—36V
Operating power: ≤4W
Operating temperature: -20°C -- +80°C
Operating humidity: 10% -- 95%
USB port: Standard 2.0
Counting input port: Aviation

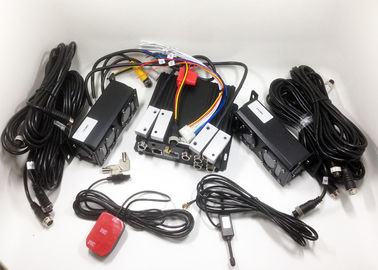

It includes the whole suit and installation guide below

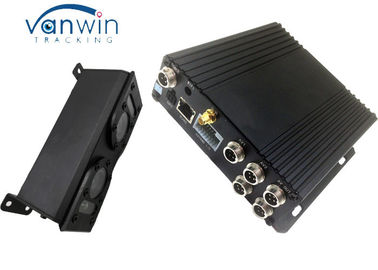

1. Main Unit
Counter Processor(brain), Mounted at the bottom of seat or ceiling of bus, process and calculate the data, send to SD card storage or GPRS&3g
2. Binocular Camera
Mounted on the ceiling of the doors, counts passengers get in or out of the bus.
3. Door Sensor
Door open/close sensor, is used for sensing the door open or close status.
Wire Connection
1. connect “CAM1” to “AV1” ; connect “CAM2” to “AV2” ;
2. connect “CAM3” to “AV3” ; connect “CAM4” to “AV4” ;
3G Monitoring Platform
Our protocol for integration
