3G bus tickets video passenger counting system with AHD MDVR , 98% accuracy
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW619C-3G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 5,000pcs per month |
|
Detail Information |
|||
| Power Supply: | 8V-36V | Support: | Softwares And Technology Support |
|---|---|---|---|
| Applicable: | School Bus Or Bus Or Any Vehicle | Sensor Type: | Video Counting, 98% Accuracy |
| Level: | World Class Anti-vibration Technology | Operation Interface: | OSD With Mouse And Remote Control |
| Scanning Style: | Video Counting | Data Transmission: | 3g, GPS, Wifi ,gprs, Rs232/485, HDD Storage |
| Camera: | Binocular Camera | Network: | 3G/4G |
| High Light: | bus passenger counter,cctv mobile dvr |
||
Product Description
3G bus tickets video passenger counting system with AHD MDVR , 98% accuracy
The 2nd generation of Video counter system is based on advanced smart counting technology and attains high accuracy by detecting morphological characteristics of human(head and shoulder) and the human movement situation of getting On&Off the vehicle. 2nd generation is mainly characteristic of its high accuracy, despite crowded group, closthes, colors etc. Each counting camera can detect passenger On and Off, and can distinguish human and object. It becomes important system for public transportation enterprises and governments.
Features:
* 95% up accurate
* High accuracy despite crowded group
* Not affected by clothes color and passenger height etc
* Long duration and low maintenance
* Accurate counting for On and Off through Front and Back door
* Automatically generate statistic report
* Easy installation and uninstallation
* More accurate surveillance and more effective management on ticket, conductor and driver.
* Supporting 4ch/8ch video recording, SD card& HDD storage.
* Supporting 3g, gps, wifi, alarm, G-sensor functions.
Product Description&Specification:
System: Linux
CPU: TMS320DM6446
Operation Interface: OSD with mouse and remote control
Video Counting input: Max 2 channels
Video Counting output: 1 channel
Accuracy: 95% up
operating voltage: DC 8—36V
Operating power: ≤4W
Operating temperature: -20°C -- +80°C
Operating humidity: 10% -- 95%
USB port: Standard 2.0
Counting input port: Aviation

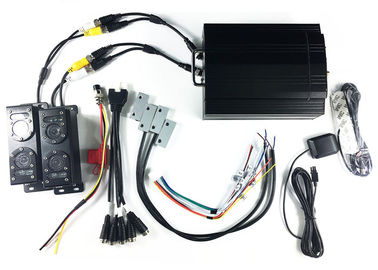

1. Main Unit(below)
Counter Processor(brain), Mounted at the bottom of seat or ceiling of bus, process and calculate the data, send to HDD storage or 3g/4g
2. Binocular Camera
Mounted on the ceiling of the doors, counts passengers get in or out of the bus.
3. Door Sensor
Door open/close sensor, is used for sensing the door open or close status.
Platform show
Notice: If you buy our 3G counter(with mdvr together), you will use our platform ;if you buy our GPRS counter ,also you can use our management platform tool ,also you can use your own platform with our protocol by RS232/485 interface.

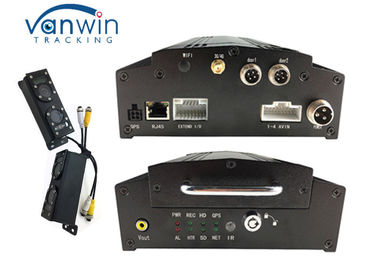

The People counter MDVR box:
Please contact us for specific manual in details
