|Power Supply:||8V-36V||Support:||Softwares And Technology Support|
|Applicable:||School Bus Or Bus Or Any Vehicle||Sensor Type:||Video Counting, 98% Accuracy|
|Storage Capacity:||2TB HDD &64GB SD Card||Scanning Style:||Video Counting|
|Camera:||4 Cameras Monitoring And 2 Counting Cameras||Data Transmission:||3g, GPS, Wifi ,gprs, Rs232/485, HDD Storage|
cctv mobile dvr,
mobile dvr for buses

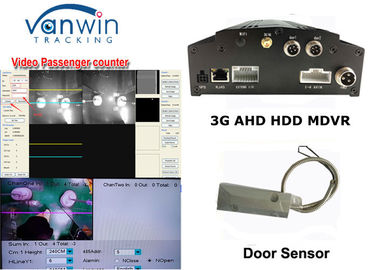

3G live video streaming CMS based linux bus mobile digital video recorder MDVR with people counter
The 2nd generation of Video counter system is based on advanced smart counting technology and attains high accuracy by detecting morphological characteristics of human(head and shoulder) and the human movement situation of getting On&Off the vehicle. 2nd generation is mainly characteristic of its high accuracy, despite crowded group, closthes, colors etc. Each counting camera can detect passenger On and Off, and can distinguish human and object. It becomes important system for public transportation enterprises and governments.
* 95% up accurate
* High accuracy despite crowded group
* Not affected by clothes color and passenger height etc
* Long duration and low maintenance
* Accurate counting for On and Off through Front and Back door
* Automatically generate statistic report
* Easy installation and uninstallation
* More accurate surveillance and more effective management on ticket, conductor and driver.
* Supporting 4ch/8ch video recording, SD card& HDD storage.
* Supporting 3g, gps, wifi, alarm, G-sensor functions.
1. Main Unit(below)
Counter Processor(brain), Mounted at the bottom of seat or ceiling of bus, process and calculate the data, send to HDD storage or 3g/4g

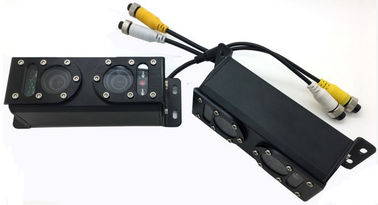

2. Binocular Camera

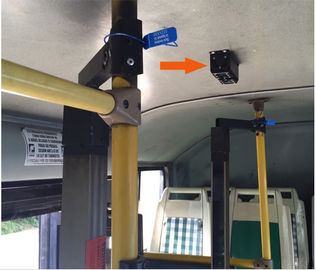

Mounted on the ceiling of the doors, counts passengers get in or out of the bus.
3. Door Sensor
Door open/close sensor, is used for sensing the door open or close status.
Notice: If you buy our 3G counter(with mdvr together), you will use our platform ;if you buy our GPRS counter ,also you can use our management platform tool ,also you can use your own platform with our protocol by RS232/485 interface.
Data counting and processing software, do settings and adjust parameter.
Q: Does the MDVR support Hard drive and SD card?
A: Yes, HDD version MDVR supports SSD, HDD, and SD card. SD card version MDVR supports max 2 SD card.
The storage capacity can be from 32GB to 2TB.
2.Q: Is it difficult to install MDVR into the vehicle?
A: Actually it is easy to install it into vehicle. Most driver can figure out how to connect the power cables.
And the camera installation is more easy. Just screw, connect and mount on the target place inside the vehicle.
3.Q: If I need door open and close alarm, overspeed alarm, reverse video, brake video, left-turn video, right-turn video, etc,
is it available?
A: Definitely yes!
The I/O RS232 and 485 extension port is for all expanded purposes, including the functions above.
In fact, there are more customized functions which can be connect through this port, such as Fuel sensor, Counter system,
PTZ camera, and so on.
4.Q: We have our own platform and server, can we use your MDVR? Do you have SDK or can you do customized platform for us?
A: Yes, we have SDK ready and welcome your OEM customized order!
Please contact us for specific manual in details
