Video Counting 3G Mobile DVR

China Video Counting 3G Mobile DVR supplier
Video Counting 3G Mobile DVR supplier Video Counting 3G Mobile DVR supplier Video Counting 3G Mobile DVR supplier Video Counting 3G Mobile DVR supplier Video Counting 3G Mobile DVR supplier

Large Image :  Video Counting 3G Mobile DVR

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW619C

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
Delivery Time: 2-3 days for samples,15-30 days for large orders
Payment Terms: T/T or western Union or Paypal
Supply Ability: 5,000pcs per month; Linux vehicle mobile DVR Wireless tally passenger counter system MDVR traffic WIFI GPS 3G passenger
Contact Now
Detailed Product Description
Power Supply: 8V-36V Sensor Type: Video Counting, 98% Accuracy
Level: World Class Anti-vibration Technology Operation Interface: OSD With Mouse And Remote Control
Data Transmission: 3g, GPS, Wifi ,gprs, Rs232/485, HDD Storage Camera: Binocular Cameras&Monitoring Cameras
USB Port: Standard 2.0 City Bus: Support 1/2/3/4 City Buses
Accuracy: Up 98% Network: 2G/3G/4G
System: Linux 3.0 WIFI: Supported

Linux vehicle mobile DVR Wireless tally passenger counter system MDVR traffic WIFI GPS 3G passenger





For 3G / 4G / WiFi counter, all the counting data(including passenger nubmer, time, date, gps positioing infomation) will be sent to the server or 3rd-party application server (need customization) through the 3G / 4G / WiFi wireless network



 Alternatively, Vehicle CCTV cameras can be used together with people counters to record the video of people getting on and off at each stop or station, so operators can verify that the system is counting properly simply by watching the video back - this shows people getting on and off the vehicle together with the increasing counts.





Product Description&Specification:

System: Linux

CPU: TMS320DM6446

Operation Interface: OSD with mouse and remote control

Video Counting input: Max 2 channels

Video Counting output: 1 channel

Accuracy: 98% up

operating voltage: DC 8—36V

Operating power: ≤4W

Operating temperature: -20°C -- +80°C

Operating humidity: 10% -- 95%

USB port: Standard 2.0

Counting input port: Aviation



Item Description
OS Linux3.0
Graphics Operation Interface System parameters can be set through external display and remote controller
Security Management 2-level management for user password, administrator password, supporting encrypted transmission
Video and Preview Video Input, Output 4-channel video input, 1channel video output; 1.0Vp-p, 75Ω
OSD Character superposition function, information superposition of time and date, device ID and GPS, etc.
Video Compression Format Compression coding. Applying Hisilicon hi-performance processor.
Dual-Stream Supported
Preview Function Preview of 1-channle, 4-image stitching, supporting full screen triggered by event and switching of stitched images
Frame Rate PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel
Resolution AHD 720P,D1, HD1 ,CIF 4channel
Quality Grade 1 to grade 8 for selection (1 is the best)
Bit Rate

CIF: 300Kbps ~ 1.2 Mbps, 8-level bit rates for selection

HD1: 500Kbps ~ 1.5 Mbps, 8-level bit rates for selection

D1: 600Kbps ~ 2Mbps, 8-level bit rates for selection

720P: 800Kbps ~ 4Mbps, 8-level bit rates for selection

Audio Audio Input, Output 4-channel input, 1-channel output
Compression Format G.726 coding
Recording Storage Medium Supporting one 2.5” hard drive and one SD card, which supports up to 128G, supporting data redundancy storage technology;
File Format/ System Special file system
Video Strategies Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording
Video Search Searching by time, type, storage device and other conditions
Video Playback Supporting playback on local device, supporting synchronous playback of up to 4 channels and analysis on vehicle information in the files
Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time
Alarm Alarm Input/ Output 8-channel on/off signal alarm input, 2-channel on/off signal alarm output
Alarm Recording duration of recording after alarm can be adjusted from 10s ~ 999S
Storage Space Alarm Supporting settings for alarm of storage space
Function Alarm GPS overspeed alarm, acceleration alarm, motion detection alarm
counter Passenger Video counter Two doors Synchronous statistics. the recognizing accuracy was more than 95%
Communication Ports 485,RS232, RJ45 10M/100M self-adaptable network interface
Wireless Transmission (Optional) Supporting Wi-Fi;
GPS (Optional) Supporting external GPS
PTZ Control Supporting PTZ control realized by local;
Parameter Configuration Supporting parameter configuration functions for mobile DVR coding channel;
G-Sensor Embedded
System Upgrading Supporting SD card, hard drive upgrading and remote upgrading
Power Supply and Power Consumption Power Supply

1. ACC on/off

2. Hard drive lock on/off

3. Delayed shutdown

4. Timed on/off

Input Voltage DC:+9V ~ +36V
Output Voltage +12V@5*0.5A;
Power-off Protection With patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure
Power Consumption <10W in normal operation; <0.5W in standby mode
Operating Environment Temperature Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃
Humidity 10% to 95%
Dimensions 160(W) x62(H) x200(D) mm.
Weight Net: 2020g, Gross: 3500g




1. Main Unit(below)

Counter Processor(brain), Mounted at the bottom of seat or ceiling of bus, process and calculate the data, send to HDD storage or 3g/4g

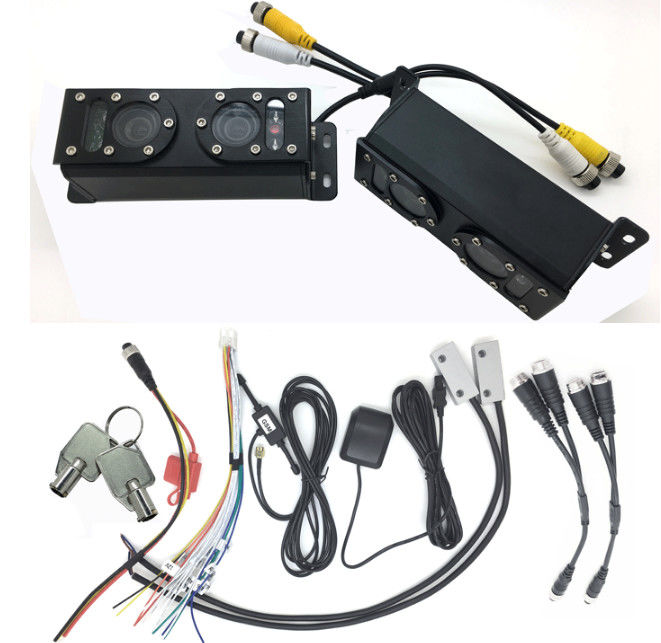

2. Binocular Camera

Mounted on the ceiling of the doors, counts passengers get in or out of the bus.



3. Door Sensor

Door open/close sensor, is used for sensing the door open or close status.



4. 4 Monitoring Cameras with extension cables



5. One monitor

Video Counting 3G Mobile DVR

Video Counting 3G Mobile DVR



Platform show



Notice: If you buy our 3G counter(with mdvr together), you will use our platform ;if you buy our GPRS counter ,also you can use our management platform tool ,also you can use your own platform with our protocol by RS232/485 interface.



Video Counting 3G Mobile DVR



Video Counting 3G Mobile DVR



 Video Counting 3G Mobile DVRVideo Counting 3G Mobile DVR

Video Counting 3G Mobile DVR

Please contact us for specific manual in details
