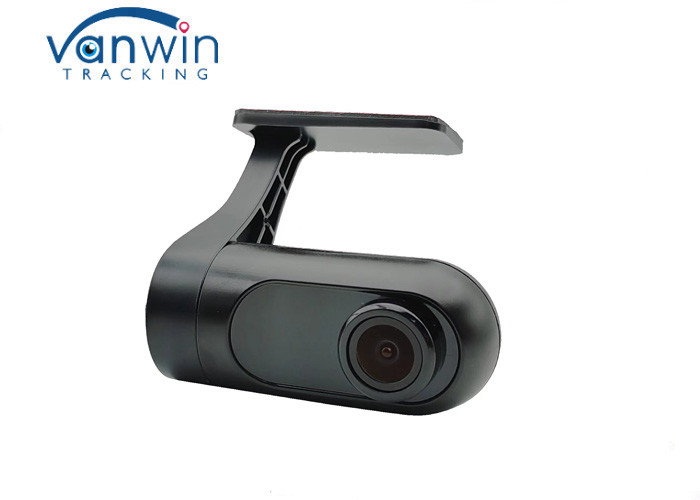

Vehicle Hidden ADAS DSM Camera Front Inner IR Car Night Vision For Taxi Truck Bus
Product Details:
Place of Origin: | Shenzhen, China |
Brand Name: | Vanwin Tracking |
Certification: | CE/FCC/RoHS |
Model Number: | VW-212 |
Payment & Shipping Terms:
Minimum Order Quantity: | 5pcs |
---|---|
Price: | negotiated |
Packaging Details: | Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 100pcs |
Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
Payment Terms: | Western Union, T/T, Paypal |
Supply Ability: | 5,000pcs per month , Car dome camera |
Detail Information |
|||
Type: | Front Camera/DSM Camera | Image Sensor: | 1/4.2" CMOS |
---|---|---|---|
TV System: | PAL Or NTSC | Resolution: | 1.0 Megapixe |
Effective Pixel: | 1280(H)*720(V) | Lens: | 2.1mm |
Viewing Angle: | 110° | IR LED Lights: | 6pcs LEDs |
High Light: | ADAS Vehicle Hidden Camera,Car Night Vision DSM Camera,DSM Vehicle Hidden Camera |
Product Description
Vehicle Hidden ADAS DSM Camera Front Inner IR Car Night Vision DMS Camera System For Taxi Truck Bus
Vehicle Hidden ADAS DSM Car Camera Front Inner IR Night Vision DMS Camera System For Taxi Truck Bus
Main Specifications:
Image sensor: 1/4.2" CMOS |
Horizontal resolution: 1.0Megapixel |
TV system: PAL/NTSC |
Effective pixel: 1280(H)*720(V) |
Minimum illumination: 0.5Lux@(F1.2,AGC ON) |
S/N ratio: ≥42dB |
Day/Night mode:EXT(default),Support IR CUT switching |
Sync system: Internal |
Video output: AHD Standard,720P output |
Audio input: Built-in Mic(Optional features) |
Audio output: 1 Channel audio output |
Lens: 2.1mm |
Viewing angle:H=110° |
IR leds Qty: 6pcs LEDs |
IR distance: ≥5meters |
Operating temp: -35°C~+85°C |
Power supply: DC12V±10% |
Power consumption: ≤1.5W |
Notes:
(1)Make sure the power is off before installation.
(2)Check and confirm the availability of right power supply. Wrong voltage will inflict
damage to component(s) in camera.
(3)Do not use camera in overheated and humid environment. Keep a good
ventilation so as to reduce fire and outrage.
(4)Only the professional technicians are entitled for installation and repair. By no
means, this camera shall not be repaired or dismantled on customer's own.
Manufacturer holds no responsibility in case of unauthorized repair, and use of
uncertified spare parts.
(5 )If abnormal conditions are found,please turn off the power supply and contact
the local dealers in time.
Quality Assurance
1. Aging test
2. Waterproof test
3. High-and-low temperature test
