Product Description
4G GPS 8 channel MDVR with Automatic Bus passenger counter all in one kit
Introduction
VW9208C is a cost-effective and high extendibility mobile digital video recorder (MDVR),developed especially for vehicle monitoring ,passenger-counting and remote video surveillance. It adopts high speed processor and embedded Linux system, combined with the most advanced technology of H.265 coding/decoding, 3G/4G network, GPS/BD and WIFI. It supports 1080p,720p,D1 resolution video recording, vehicle driving record , passenger-counting and video remote uploading. It can be connected with 1-4 special cameras for passenger-counting. Each camera can count two directions of entering and leaving at the same time.
Product Features
a) Vehicle-specific interface with good user experience.
b) The recording resolution is up to 1080P, using the latest H.265 digital encoding technology, high coding efficiency and flexible strategy.
c) Supports the AP direct connection function, which can be directly connected to the device through the mobile phone APP to perform parameter setting and other functions on the phone.
d) Supports a 2.5-inch HDD/SSD. The hard disk access mode is bare disk plug-in type. There is no need to add a hard disk box. The hard disk is removed from the pop-up mode. The whole operation is simple and easy to use.
e) The hardware design has a power-off protection function. When the device suddenly powers off, the built-in super capacitor can be enabled to achieve normal shutdown, effectively avoiding the loss of key data.
f) Can be built-in ADAS, DSM module, lane departure, collision, drowsiness, smoking, call detection and warning.
g) Built-in G-sensor accelerometer, adaptive installation position, no need to manually set, support driver driving behavior detection.
All-aluminum alloy case, fanless design, with good heat dissipation.
Product Functions
a) Passenger-Counting
a1 Each camera can count two directions of entering and leaving at the same time
a2 Distinguish front and brack door
b) Turn on/off
b1 Support ACC ignition power on, regular power on, trigger boot, remote boot.
b2 Support ACC delay shutdown, timed shutdown, trigger shutdown, remote shutdown.
c) Local monitoring function
c1 Support local output 1/2/4/5/8 screen live preview, trigger single channel screen preview by alarm.
c2 Support motion detection, video loss, video power short detection detection.
c3 Support local audio and video playback, support fast forward and rewind function.
d) Local audio and video recording storage
d1 Support a 2.5" SATA hard drive and a SD card.
d2 The file format is compatible with Windows systems and uses hard disk space pre-segmentation.
e) Data backup
e1 Support USB data export backup.
e2 Support bare disk pull out data backup.
e3 Support remote platform data download backup.
f) Extension
f1 Local support for RS485, support for a variety of peripheral sensor access.
f2 Local support for RS232, support for a variety of peripheral sensor access.
f3 Support for external serial port expansion boxes.
g) Remote monitoring function
g1 Support 10M/100M adaptive network interface.
g2 Support three types of 3G systems: WCDMA, EVDO, and TD-SCDMA, and twoT types of 4G system D-LTE and FDD-LTE.
g3 Support WIFI function, 2.4/5.8G optional.
g4 Support VMS, CMSV6 platform, provide SDK, and access more platforms.
g5 Supports protocols such as DHCP, DNS, NTP, and SADP.
g6 Support remote preview and video recording.
g7 Support remote video and audio playback.
g8 Support WIFI automatic download.
g9 Support remote intercom between platform and device.
g10 Supports PTT calls between devices and devices.
g11 Support remote acquisition and configuration parameters, support remote export and import of device parameters.
g12 Support remote access to device operating status, system log and alarm status.
g13 Support remotely format hard disk, upgrade program, restart and other system maintenance operations.
g14 Support remote search, playback and download.
g15 Support RS-232 remote transmission.

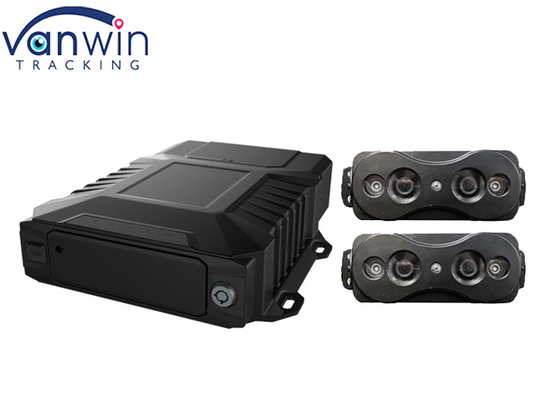

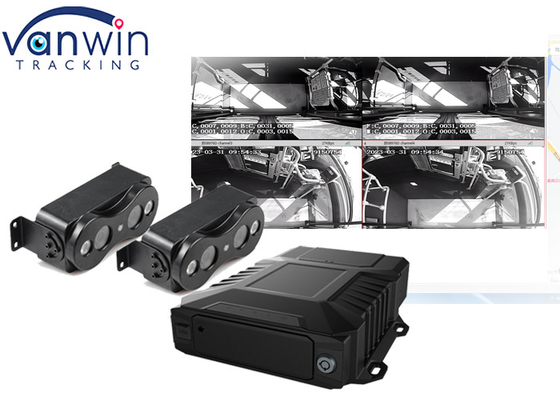

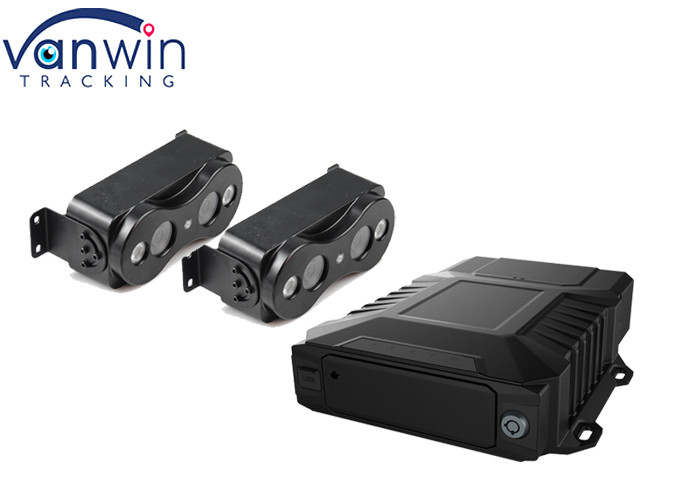

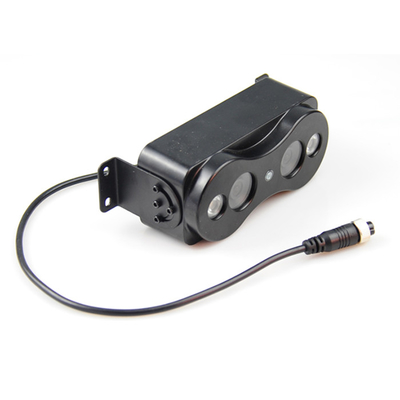

Product Photos

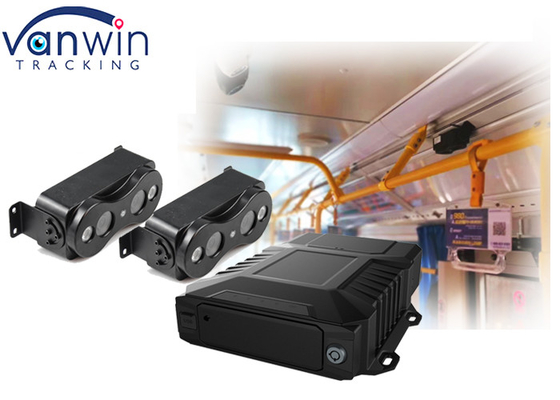

Application
