1MP 2MP 4ch HDD SD 4G Mobile NVR With IP Cameras Vehicle Fleet Tracking Device
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW9704IP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 5,000pcs per month |
|
Detail Information |
|||
| Power Supply: | 8V-36V Wide Voltage | Network: | 3G/4G WCDMA/EVDO |
|---|---|---|---|
| Type: | 4CH Mobile NVR | Storage Card: | 1/2TB HDD /SD Card |
| Network Port: | RJ45 | Video Compression: | H.265 |
| Alarm: | 6CH Alarm Inputs, 2CH Alarm Output | Client Software: | PC And Mobile Phone Supported |
| Audio Output: | 1 Channel VGA Video Output, 1 Channel Aviation Connector Video Output | Recording Storage: | 1080P 1.9G/hour/channel; 720P 0.8G/hour/channel |
| Resolution: | 720P/1080P | Dimension: | 166mm*155mm*137mm |
| High Light: | HDD SD 4G Mobile NVR,4G Mobile NVR With IP Cameras,4ch 4G Mobile NVR |
||
Product Description
1MP 2MP 4ch HDD SD 4g mobile NVR with IP cameras vehicle fleet tracking device
Main Features
1.H.265 Compression, saves storage costs, smoothly live streaming, clear picture quality, multi-stream recording.
2.Support HDD/SSD/SD Card Storage, completely protect the data from damage.
3.Watchdog abnormal restart function protection, Better machine and data protection.
4.Flameout delay recording function, ACC Delay off,can set 24 hours.
5.On board UPS 8~10 seconds delay power-off for data protection.
6.Support remote management, voice intercom, fuel monitoring, cut engine remotely function.
7.Designed with RS232/RS485 and RJ45 peripheral interface.
8.Allow to integared with Fuel Sensor,Temperature & Humidity Sensor, RFID card-reader,Tire pressure monitor and so on.
9.8V~36V wide voltage power supply, Overload/ undervoltage/ short circuit protection, low voltage automatic shutdown.
10. Support IP cameras(1MP, 2MP), HD 1080P video, network DVR

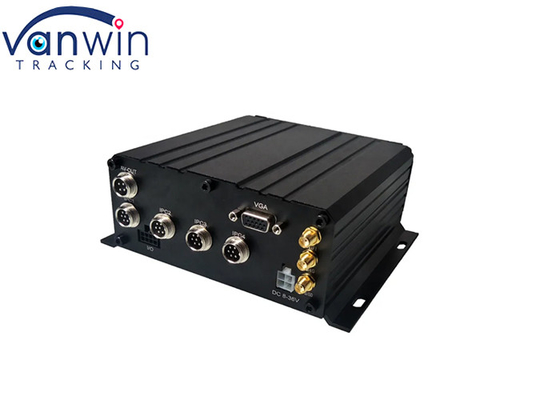

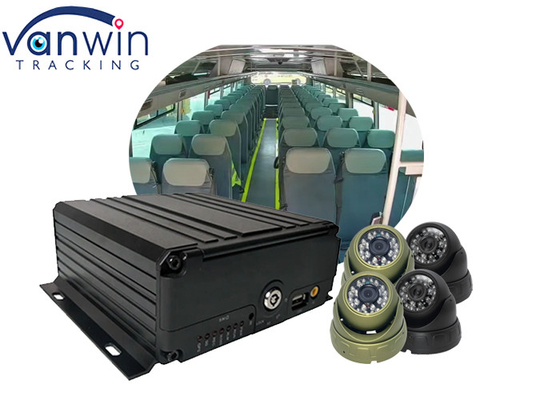

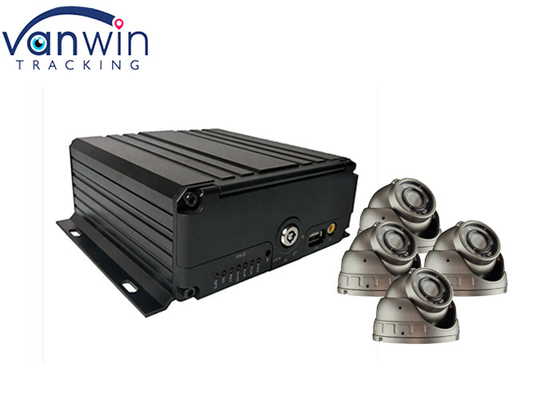

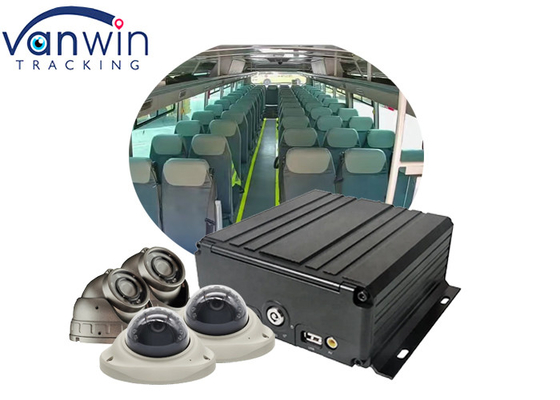

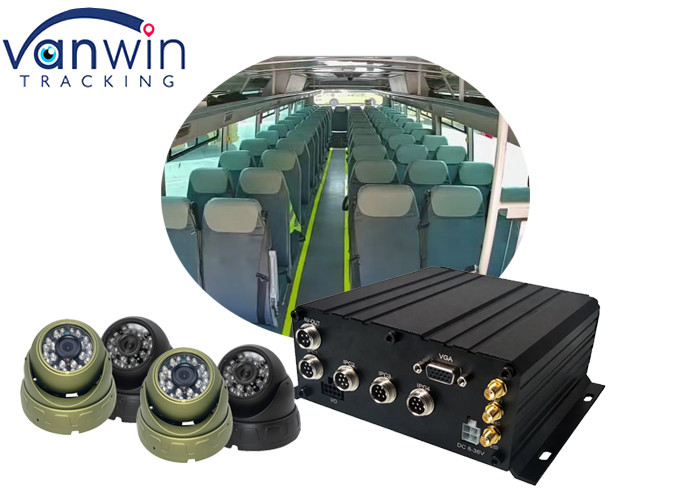

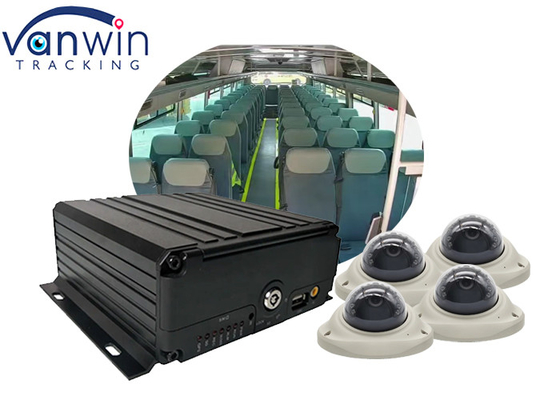

Product Pictures
