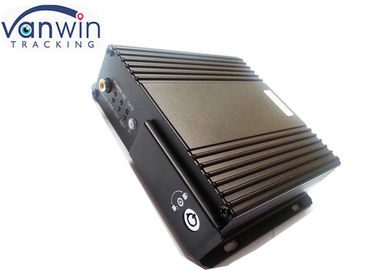

4 Channel Vehicle WI-FI Video / Audio SD Card DVR Camera System with Bus Router

4 Channel Vehicle WI-FI Video / Audio SD Card DVR Camera System with Bus Router

    • 4 Channel Vehicle WI-FI Video / Audio SD Card DVR Camera System with Bus Router
    • 4 Channel Vehicle WI-FI Video / Audio SD Card DVR Camera System with Bus Router
    • 4 Channel Vehicle WI-FI Video / Audio SD Card DVR Camera System with Bus Router
  • 4 Channel Vehicle WI-FI Video / Audio SD Card DVR Camera System with Bus Router

    Product Details:

    Place of Origin: Shenzhen,China
    Brand Name: Vanwin Tracking
    Certification: CE/FCC/RoHS
    Model Number: VW608GS

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Price: negotiated
    Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
    Delivery Time: 2-3 days for samples,15-30 days for large orders
    Payment Terms: T/T or western Union or Paypal
    Supply Ability: 5,000pcs per month; 4 Channel Vehicle WI-FI Video / Audio SD Card DVR Camera System with Bus Router
    Contact Now
    Detailed Product Description
    SD Card Slots: 2 Sd Slots Storage Capacity: SD1 Max To 32G, SD2 Max To 128G
    Basic Function: 4 Cameras Monitoring With 3G Real Time,GPS Tracking,video People Counter Optional Software Support: Client,server,playback Software

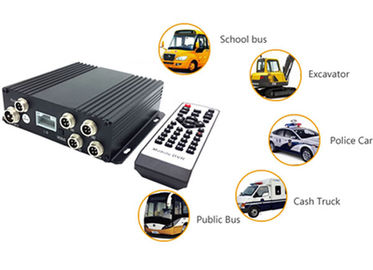

    Applicable: Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining Truck Fleets Customized Functions: People Counter, Oil Sensor, RFID And Ect.
    Cameras: CMOS/Sony CCD Cameras 4CH/8CH: Optional

    4 Channel Vehicle WI-FI Video / Audio SD Card DVR Camera System with Bus Router



    1. Our Black Box Recorders sit discretely in the boot of your vehicle, you won't know it's there until you need it.
    2. Even though it is a small device we increase passenger and driver safety and independently record any traffic collisions - it is no longer your word against theirs.
    3. The Black Box Recorder has been developed to keep peace of mind for both the driver and the passenger.



           Our small and compact device protects drivers and passengers from:



    • FenderBender——one word against another equals quick insurance settlements
    • Accusations and cab rage——one of the quickest ways to loss of livelihood for the driver
    • Passenger security——Make your taxis a safer environment for all
    • Difficult insurance claims with your word against theirs

    4 Channel Vehicle WI-FI Video / Audio SD Card DVR Camera System with Bus Router





    Main Features



    • H.264 video code compression, dual stream output;
    • G.726 audio compression format, 4-channel audio input, 1-channel audio output.
    • Power-off protection in emergency, adopting special UPS technology which ensures the device to work for 3-5 seconds after the external power supply is cut, thus ensure complete video data and avoid file damage;
    • Real-time local recording, multiple formats for selection, supporting full screen of single channel or multi-window stitching upon accidents;
    • Switch signal interface, 6-channel alarm input, 1-channel alarm output;
    • PTZ control;
    • Multiple recording modes: record upon startup, timed recording and triggered recording;
    • Universal video file formats: applying ASF format, which can be played with the universal software VLC or the supplied playback software, supporting 1-channel or 4-channel synchronous playback;
    • Data storage, Supporting dual SD card, remote upgrading; supporting dual-stream mirror image video recording.
    • Wide voltage design, 8-36V DC wide voltage input, suitable for various vehicles; DC 12V/4A output;
    • Rapid startup, capable of entering normal working mode within 25 seconds after startup; supporting on/off with key switch, timed on/off and delayed on/off, etc.;
    • Optional functions:
      1. 3G wireless transmission;
      2. GPS, G-sensor acceleration sensor, with precise time correction;
      3. IP calling;
      4. Dialing;

    Highlights



    1) 8V~36V Wide Range Power Input;



    2) 4 Channel Realtime Video/ Audio Recording;



    3) Supports dual sd cards for storage;



    4) Motion Detect/ G-Sensor/ Alarm Record/ High Speed/ Low Speed Alarm;



    5) 4 I/O Alarm Input & 1 Alarm Output;





    6) UPS Technology (3~5s Power-off delay after power cut);




    7) Max. 4 Hours Power-off Delay after ACC-off;



    8) GPS Tracking



    9) 3G/ 4G Remote View on PC or Smartphone;



    10) Supports talkback function (2 Ways Audio);



    11) Geo-Fence/ Remote Engine Stopping/ Remote Oil Cut, etc;



    12) 98% Accuracy Passenger Counting (Optional)----NEW technology







    Specifications



    Item

    Description

    OS

    Linux

    Graphics Operation Interface

    System parameters can be set through external display and remote controller

    Security Management

    2-level management for user password, administrator password, supporting encrypted transmission

    Video and Preview

    Video Input, Output

    4-channel video input, 1channel video output; 1.0Vp-p, 75Ω

    OSD

    Character superposition function, information superposition of time and date, device ID and GPS, etc.

    Video Compression Format

    Compression coding. Applying Hisilicon hi-performance processor.

    Dual-Stream

    Supported

    Preview Function

    Preview of 1-channle, 4-image stitching, supporting full screen triggered by event and switching of stitched images

    Frame Rate

    PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel

    Resolution

    CIF, HD1 and D1 for selection, max 720P

    Quality

    Grade 1 to grade 5 for selection (descending)

    Bit Rate

    CIF: 256Kbps ~ 1.5 Mbps, 8-level bit rates for selection

    HD1: 600Kbps ~ 2 Mbps, 8-level bit rates for selection

    D1: 800Kbps ~ 3Mbps, 8-level bit rates for selection

    Audio

    Audio Input, Output

    4-channel input, 1-channel output

    Compression Format

    G.726 coding

    Recording

    Storage Medium

    Supporting dual SD card, which supports up to 32G

    File Format/ System

    ASF/FAT32

    Video Strategies

    Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording

    Video Search

    Searching by time, type, storage device and other conditions

    Video Playback

    Supporting playback on local device, supporting synchronous playback of up to 4 channels and analysis on vehicle information in the files

    Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time

    Alarm

    Alarm Input/ Output

    6-channel on/off signal alarm input, 1-channel on/off signal alarm output

    Alarm Recording

    Prerecording function 15 seconds before alarm, duration of recording after alarm can be adjusted from 30s ~ 30min

    Storage Space Alarm

    Supporting settings for alarm of storage space

    Function Alarm

    GPS overspeed alarm, acceleration alarm, motion detection alarm

    Communication Ports

    RS232, RJ45 10M/100M self-adaptable network interface

    Wireless Transmission (Optional)

    Embedded 3G wireless transmission module, WCDMA, CDMA2000, TD-SCDMA system for selection;

    Compatible with GPRS, EDGE;

    Embedded Wi-Fi module;

    GPS (Optional)

    Supporting external GPS

    Remote Data Transmission Channel Selection

    Supporting 3G, Wi-Fi data channel transmission, supporting Wi-Fi priority transmission strategy; supporting remote downloads of back-end recording strategies;

    PTZ Control

    Supporting PTZ control realized by local ad client software;

    Parameter Configuration

    Supporting parameter configuration functions for mobile DVR coding channel;

    G-Sensor

    Embedded

    System Upgrading

    Supporting SD card and remote upgrading

    Power Supply and Power Consumption

    Power Supply

    1. ACC on/off

    2. Delayed shutdown

    3. Timed on/off

    Input Voltage

    DC:+8V ~ +36V

    Output Voltage

    +12V@4*0.5A; +5V@0.5A

    Power-off Protection

    With patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure

    Power Consumption

    <10W in normal operation; <0.5W in standby mode

    Operating Environment

    Temperature

    Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃

    Humidity

    10% to 95%

    Dimensions

    141(L)×133(W)×43(H)mm





    Our Client Software





    4 Channel Vehicle WI-FI Video / Audio SD Card DVR Camera System with Bus Router





    4 Channel Vehicle WI-FI Video / Audio SD Card DVR Camera System with Bus Router
