1080P 4G Live Video Streaming Dual SD Card Mobile DVR Fleet Management Fuel Monitoring
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW9604fuel kit |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal; |
| Supply Ability: | 5,000pcs per month |
|
Detail Information |
|||
| Features: | 4G / 3G And GPS Optional, WIFI Auto Download, Basic Monitoring | Power Supply: | 8V-36V |
|---|---|---|---|
| CVBS: | Support | Video Input: | 4 Channels |
| Storage Capacity: | 2*256G SD Cards | Serial Port: | Support 2 RS232, 1 RS485 |
| Car Cameras: | AHD Up To 2MP 1080P, CVBS D1 | Resolution: | Support 1080P/720P/D1/CIF |
| Customize Function: | Fuel Level Monitoring, Fuel Tank Monitoring, Anti-theft For Fuel | Applicable: | Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining Truck Fleets |
| High Light: | Dual SD Card Mobile DVR,4G Live SD Card Mobile DVR,1080P SD Card Mobile DVR |
||
Product Description
1080P 4G live video streaming Dual sd card mobile dvr fleet management fuel monitoring
Mobile DVR Features
1) SD card for storage,max 2*128G
2) GPS tracking and 3G/4G remote control realtime monitoring optional
3) UPS technology to protect sudden power off
4) The Power and mainboard are integrated with much better quality
5) G-sensor,RS232/485 interface,RJ45 lan port,6ch alarm input
6) Mini size and light on weight
7) World class anti-vibration technology for over 8 years lifetime
8) High end products for Military dep or government usage
Mobile DVR Specifications
Fuel Sensor specification
| NO. | Item | Performance parameters |
| 1 | Collection principle | Capacitance |
| 2 | Size |
100mm to 1500mm(minimum can be detected 100mm,maximum can be detected 1500mm) |
| 3 |
Electrical parameters |
Input DC:4—70V |
| 4 |
Power Consumption |
0.13W/5V, 0.19W/12V, 0.38W/24V |
| 5 |
Signal output (can be customized) |
Voltage output:0—5V |
| 5 |
Signal output (can be customized) |
Digital output:RS-232 RS-485 |
| 5 |
Signal output (can be customized) |
Analog resistant output:10—500Ω |
| 5 |
Signal output (can be customized) |
Current output: 4—20mA |
| 5 |
Signal output (can be customized) |
Communication baud rate:2400,4800,9600,57600,115200 |
| 6 |
Detection of liquid type |
Diesel, bio diesel, kerosene, gasoline, etc. |
| 7 |
Use of the environment |
Work temperature:-40℃~+85℃ |
| 7 |
Use of the environment |
Save temperature:-40℃~+105℃ |
| 8 | Material | Aluminum alloy |
| 9 | Protection class | IP67 |

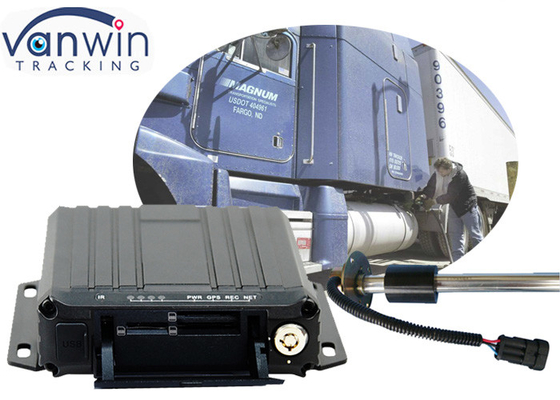

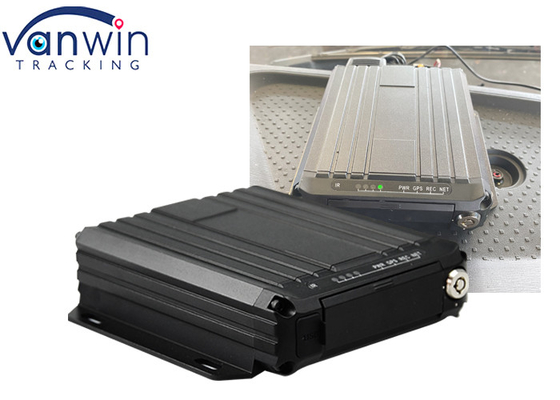

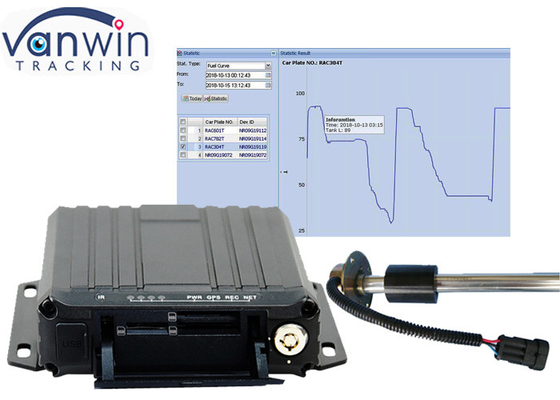

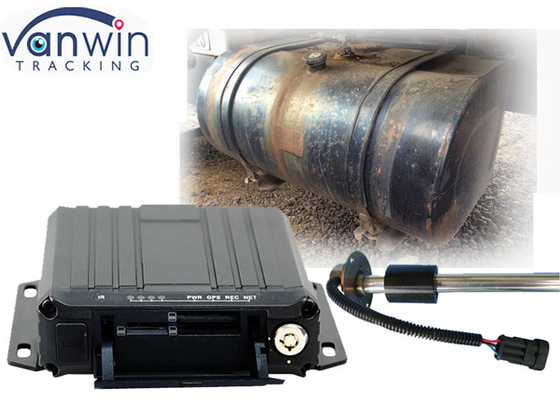

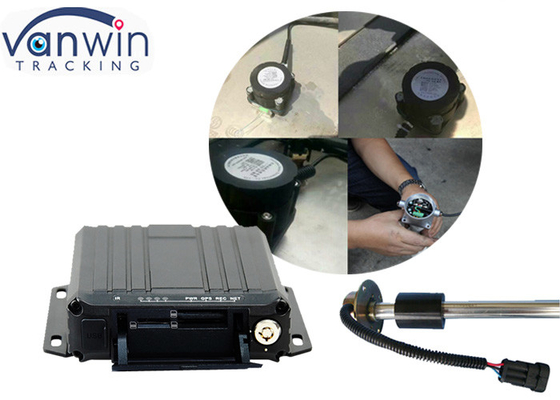

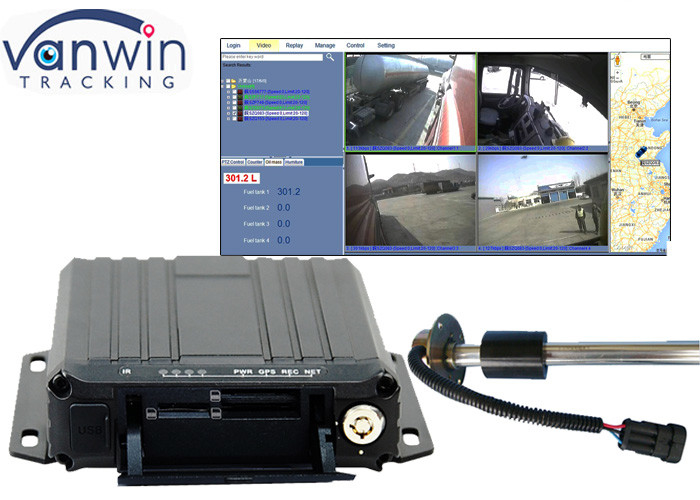

Product Pictures
Application
FQA
1.Q: Does the MDVR support Hard drive and SD card?
A: Yes, HDD version MDVR supports SSD, HDD, and SD card. SD card version MDVR supports max 2 SD cardS.
The storage capacity can be from 32GB to 256GB.
2.Q: Is it difficult to install MDVR into the vehicle?
A: Actually it is easy to install it into vehicle. Most driver can figure out how to connect the power cables.
And the camera installation is more easy. Just screw, connect and mount on the target place inside the vehicle.
3.Q: If I need door open and close alarm, overspeed alarm, reverse video, brake video, left-turn video, right-turn video, etc,
is it available?
A: Definitely yes!
The I/O RS232 and 485 extension port is for all expanded purposes, including the functions above.
In fact, there are more customized functions which can be connect through this port, such as Fuel sensor, Counter system,
PTZ camera, and so on.
4.Q: We have our own platform and server, can we use your MDVR? Do you have SDK or can you do customized platform for us?
A: Yes, we have SDK ready and welcome your OEM customized order!
