HD Vehicle Inside View Mobile Dvr Camera 1080p 2.8mm Lens AHD Night Vision Camera
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-204 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 100pcs |
| Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
| Payment Terms: | Western Union, T/T, Paypal |
| Supply Ability: | 5,000pcs per month , |
|
Detail Information |
|||
| Type: | Hidden Camera With Audio | Lens Angle: | 90-110 Horizontal Degree |
|---|---|---|---|
| Power: | 12V- 24V DC | TV System: | PAL Or NTSC |
| Sensor: | CMOS / CCD | IR LED: | 12pcs |
| Night Vision: | Yes | Audio Built-in: | Support |
| Ir Distance: | 10m-15m | Color: | Black Or Grey |
| Lens: | 2.1mm / 2.5mm /2.8mm/3.6mm | Resolution: | CMOS/CCD 600TVL, 720P/960P/1080P |
| High Light: | Mobile Dvr Camera 1080p,2.8mm Lens Mobile Dvr Camera |
||
Product Description
HD Vehicle Security Inside View Mobile Dvr Camera 1080P 2.8mm Lens AHD Night Vision Camera
Overview

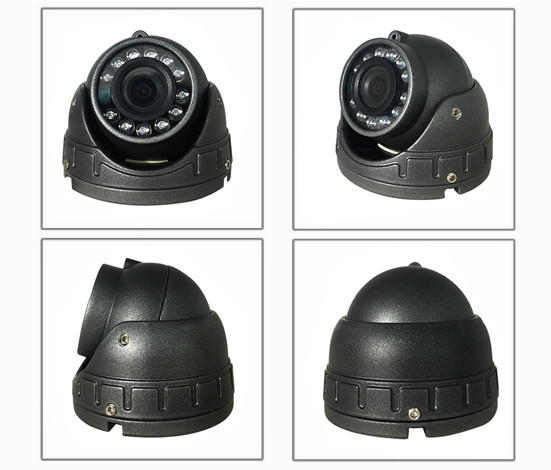

- This is sony CCD Mini dome cameras with starlight night vision for internal use. (We also have other chips for option)
- It works with 12pcs F5 infrared LEDs to create 10-15 meters infrared distance for night vision to monitor in dark environment.
- It adopts 2.1mm, 2.8mm, 3.6mm fixed focus lens to let you view objects within 10~15 meters.
- It can be worked with DVR recorder, quad processor, DVR, Reversing system.
- It supports BNC/4PIN/RAC/6PIN/RJ45 connector
- It can be viewed through monitor, TV, PC, smart phone and etc.
Dome Camera Technical Specifications
| Technology | infrared |
| Sensor | Sony 327 Chip |
| Shape | Dome camera |
| Types | Indoor car camera |
| Waterproof | IP65 |
| Audio | Optional audio |
| Lens | 2.1MM/2.8MM/3.6MM |
| IR LED | 12PCS |
| Power | DC12V/24V |
| Color | Black |
| Connector | 4 PIN connector or RCA connector |
| Material | aluminium alloy |
| Effective Pixels | 720P 1.0MP /1.3MP 960P/ 1080P 2.0MP |
| Operating Temperature | -25℃~70℃ |
| Chip Technical Specifications | |||
| Image Sensor | 1/2.9" IMX323 2.0 MP | Video Out | 1CH BNC AHD output, Support TVI/CVI/CVBS Mode |
| Image System | PAL/NTSC | WDR | auto |
| Resolution | 1920 (H)×1080(V) | SNR | >45db |
| Min.illumination | 0.01Lux full color | White Belance | AWB |
| Electronic Shutter | 1/25s~1/100,000s | DR | 76db |
| Video Standard | AHD | Advanced Function | 2D_DNR |
| Frame Rate | 1920×1080@25 fps; 1920×1080@30 fps; |
Working Environment | -25℃~+70℃,Humidity 95% |
| Lens | 2.1/2.8/3.6 | Power supply | DC 12V +/-15%, |
There are three kinds pof connectors for option
1. 4-pin connector
2. RAC connector
3. BNC connector
4. 6-PIN connector
Product Size

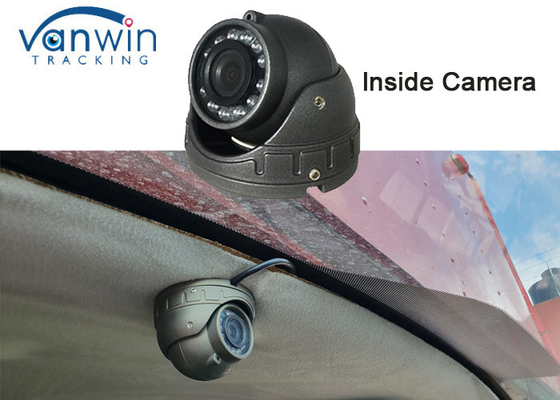

Applications
We are different from other suppliers.Welcome you to test and compare.
Our advantages
1.We all the time provide car cameras for many car bus truck factories since 12 years ago .We pay much attention to our cameras quality ,adopt A class PCB tech and 4 holes in mainboard completely insulated, isolation of the camera body from excess power, chip not touch camera body, prevent magnetic interference and ensure signal continuity.
2. Careful production Process:
Raw Material---- Accessories High Temperature Test---Assembly----Finished Products----Waterproof Test----High Low Temperature Test(Simulate -60℃to 80℃)----QA Test(IR with function Test ----Packing
3.Strict Tests one by one .
Due to our strict quality control and careful workmanship ,our clients like our cameras very much .Nearly all clients have been cooperating with us all the time .
4.We explore some wide angle or special cameras to meet your requirements that others don't have.
FQA
Q: What is the MOQ ?
A: 1 peice
Q: How fast for sample delivery?
A: 3-7 days
Q: Can I get a lower price if I order large quantities?
A: Yes, the larger the quantity, the cheaper the prices.
Q: How about the warranty period?
A: One year!
Q: How can you guarantee the quality?
A: We have a QC team with 12 years’ experience. All of the products will run through over 4 times’ 100% testing before being delivered.
Other Inside Cameras for Option
