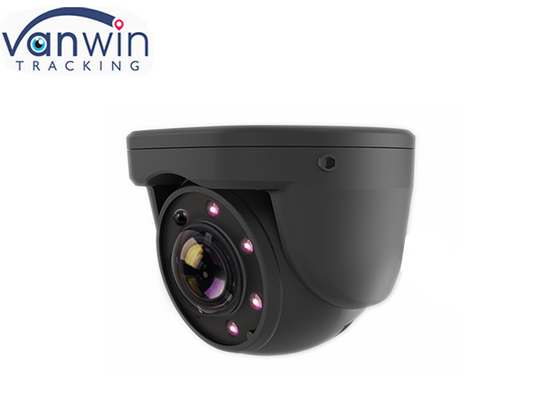

1080P AHD Car Backup Camera Fisheye Waterproof Rear View Camera Wide Night Vision
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-773 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 500pcs |
| Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 5,000pcs per month |
|
Detail Information |
|||
| Product Name: | Rear View Camera | Feature: | Waterproof, Dustproof |
|---|---|---|---|
| Waterproof: | IP69K | IR Lights: | 6 IR Lights |
| TV System: | PAL Or NTSC | Dimensions: | 47.8*41.9*91.4(mm) |
| Viewing Angle: | 120°/150°/170°/other | Resolution: | CMOS 1000TVL/720P/960P/1080P |
| Installation Application: | Side, Rearview, Internal For Bus/trucks | Image Sensor: | CMOS, CCD, CMOS And CCD, AHD 1080P, 1/3" 1.3 Mega Pixels CMOS |
| Application: | Truck, Bus, Heavy Duty, Trailer And Ect. | ||
| High Light: | 1080P AHD Car Backup Camera,Fisheye Waterproof Rear View Camera |
||
Product Description
The PCB board is customize, and with good Sony/CMOS to ensure nice and stable quality, the waterproof is IP69K for camera to stay durable useage ,6 IR LED to ensure best night vision,up to 150° wide view, perfect for cars like truck van,lorry, harvesting machine for side/central roof rearview.
★ Support Coaxial HD output, high resolution achieve to 720P/960P/1080P
★ 3M IR Distance, Auto color to black switching function,achiveing the day and night surveillance
★ super wide angle 170°,no adjustment, no blind spot
★ Conform to IP69K waterproof grade desigh, high reliability

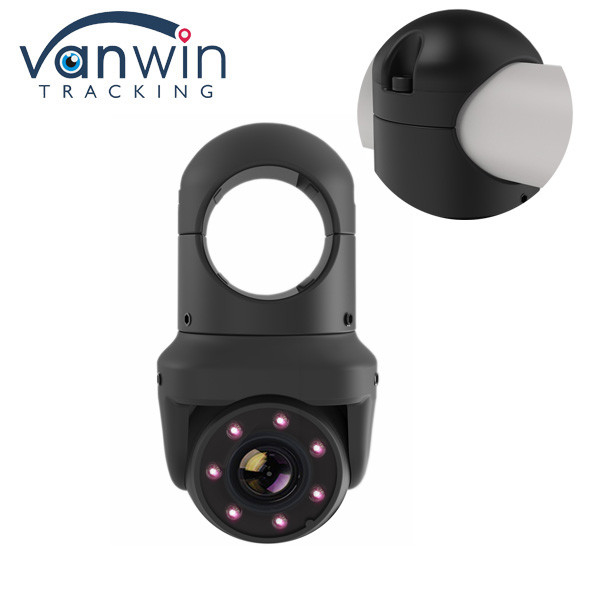

★ Side view camera which with mirror arm mount bracket and without drilling installation, commonly use in school bus,van, harvester, excavator etc
Specification
| Waterproof | IP69K | Voltage | DC 12v(24V optional) |
| View Angle | 120/150/170 Degree | Consumption | 120mA |
| Resolution | 600TV line | Certification | CE |
| (1000TVL,720P,960P, 1080P optional) | |||
| Image Sensor | 1/3" CMOS/1/2.9" CMOS | Warranty | 24 months |
| Item Name | car mini camera | Effective pixel | 1280 x 720,1280(H)*960(V),1920(H)*1080(V) |
| Minimum Lumination | 0.1 Lux (6 led light) | Day/Night mode | Color to Blackwhite switch automatically |
| Lens | 1.78mm/1.98mm | Operating Temperature | -30 |
| S/N | >48dB | White Balance | Auto |
| System | PAL /NTSC | Night vision | support |
| suitable | side/ roof camera | Guildline | On/Off |
| Image | Mirror /Normal seclectable | Shockproof | 4G |
| LUX | 0.1(6 Led) | Frenquency | 50Hz/60Hz |
| Video Output: | 1.0vp-p,75Ohm | Grama | 0.45 |
How to connect the Car Camera?
Notes:
(1)Make sure the power is off before installation.
(2)Check and confirm the availability of right power supply. Wrong voltage will inflict
damage to component(s) in camera.
(3)Do not use camera in overheated and humid environment. Keep a good
ventilation so as to reduce fire and outrage.
(4)Only the professional technicians are entitled for installation and repair. By no
means, this camera shall not be repaired or dismantled on customer's own.
Manufacturer holds no responsibility in case of unauthorized repair, and use of
uncertified spare parts.
(5 )If abnormal conditions are found,please turn off the power supply and contact us.
